ADSS Cable Tension Clamp (Two Amour Rods)

FOB Price

US$ 6 - 10 / Unit

100 Units(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	OPTELEC
Model Number	ANZ-200-18.8	Type	Wire Rope Clip
Material	Aluminum Alloy

Product Description

ADSS cable tension clamp 200m span , Cable diameter 18.8mm

Product Description

Features:

The ANZ series tension sets are intended for connecting ADSS cable and poles/towers.The aluminum clad steel wires can protect and provide cushioning to the ADSS cable.

The special design of heliformed rods make sure that tension sets can't cause undue stress to the ADSS cable.The grip strength of tension sets can be up to 95% of rated tension strength(RTS) of the optical cable,no stress concentration and dynamic stress.

Applications:

(1)The span should be 200-1000m.

(2)Terminal pole/tower,tension pole/tower,corner pole/tower

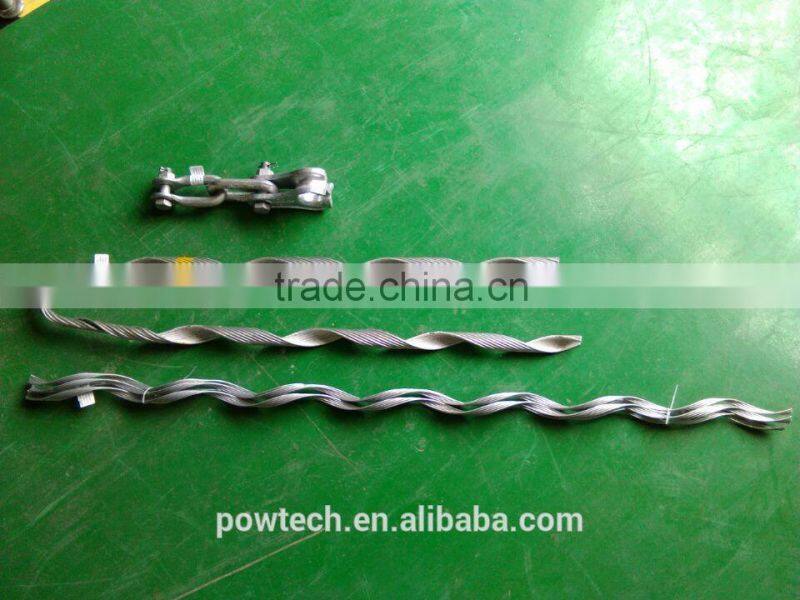

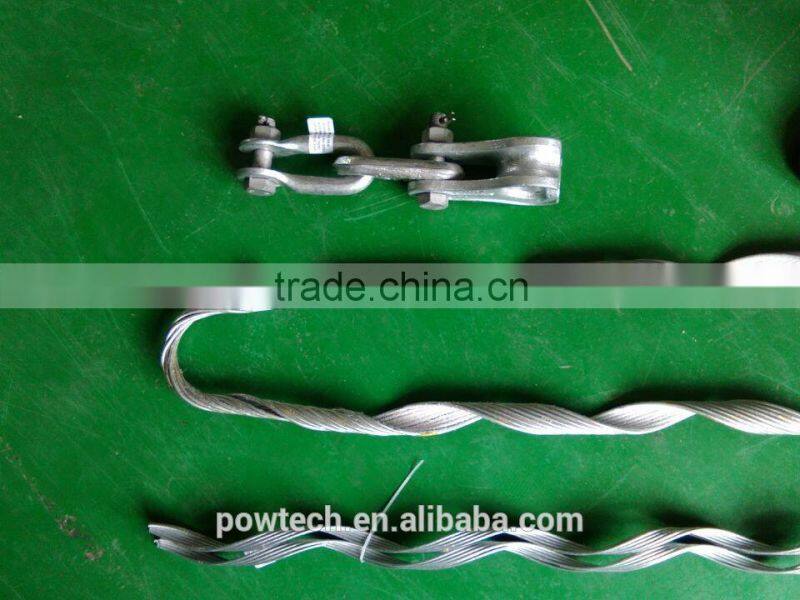

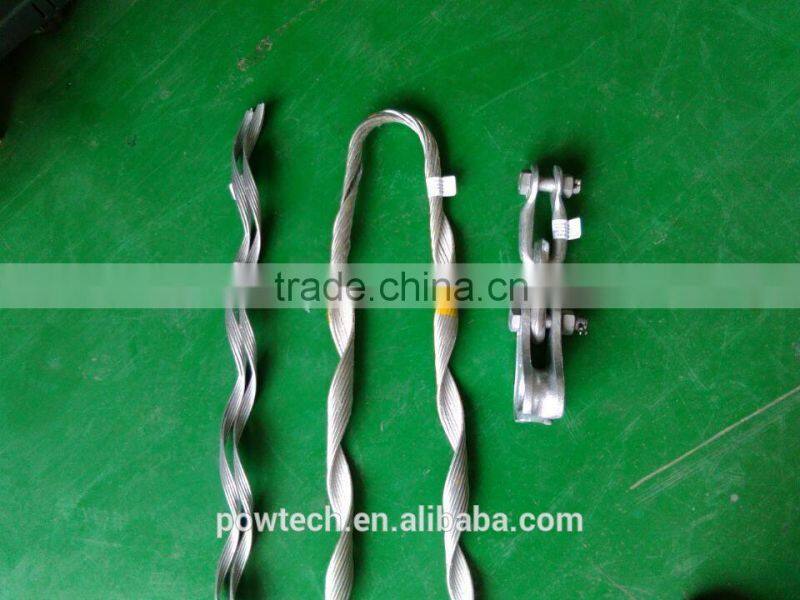

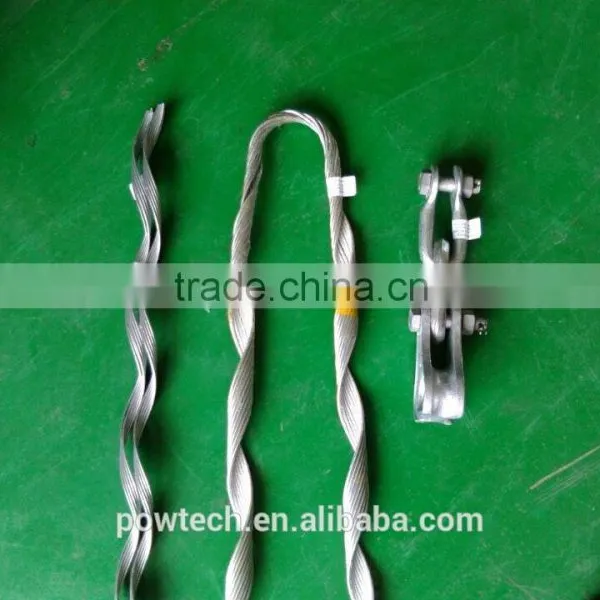

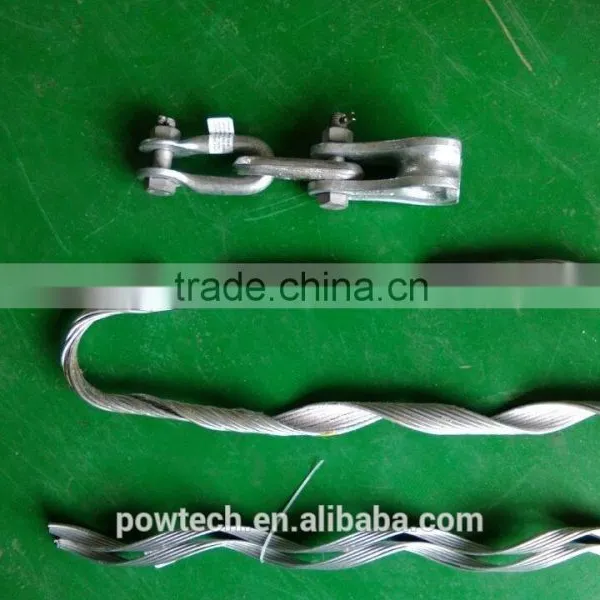

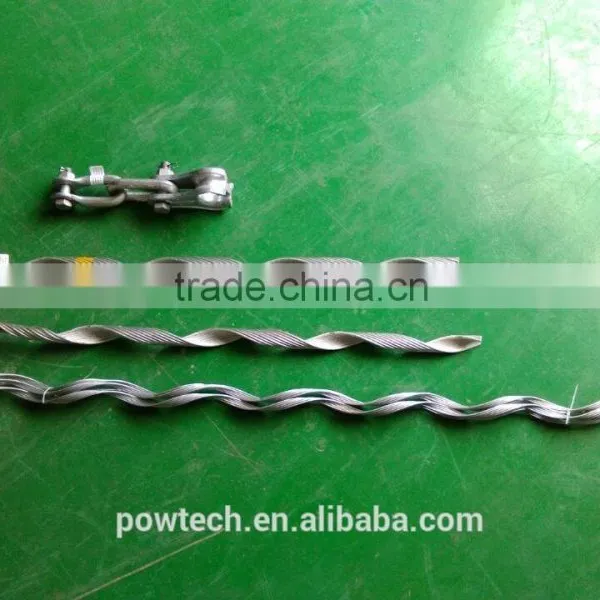

Configuration:

1.U-7 Anchor shackle

2.ZH-7 Extension link

3.Clevis thimble

4.Dead end rods

5.Reinforcing rod

6.Other link fittings are customized

Technical data sheet:

Breaking force:20kN,30kN,40kN,50kN,60kN,70kN,80kN,100kN

Model	Cable Dia.(mm)	Inner Amour rod(mm)	Outer Amour rod(mm)	Breaking force(KN)	Recommended span length
ANZ-200	9.0-18.8	1000	700	20KN	200m
ANZ-300	9.0-18.8	1100	800	30KN	300m
ANZ-400	9.0-18.8	1400	1100	40KN	400m
ANZ-500	9.0-18.8	1900	1200	50KN	500m
ANZ-600	9.0-18.8	2000	1500	60KN	600m
ANZ-700	9.0-18.8	2200	1700	70KN	700m
ANZ-800	9.0-18.8	2300	1900	80KN	800m
ANZ-1000	9.0-18.8	2900	2000	100KN	1000m

Remarks:The ANZ series tension clamps are sold as an assembly,including a unit of Dead-end Rods,a unit of reinforcing amour rod,a clevis thimble,an extension link and an Anchor shackle.

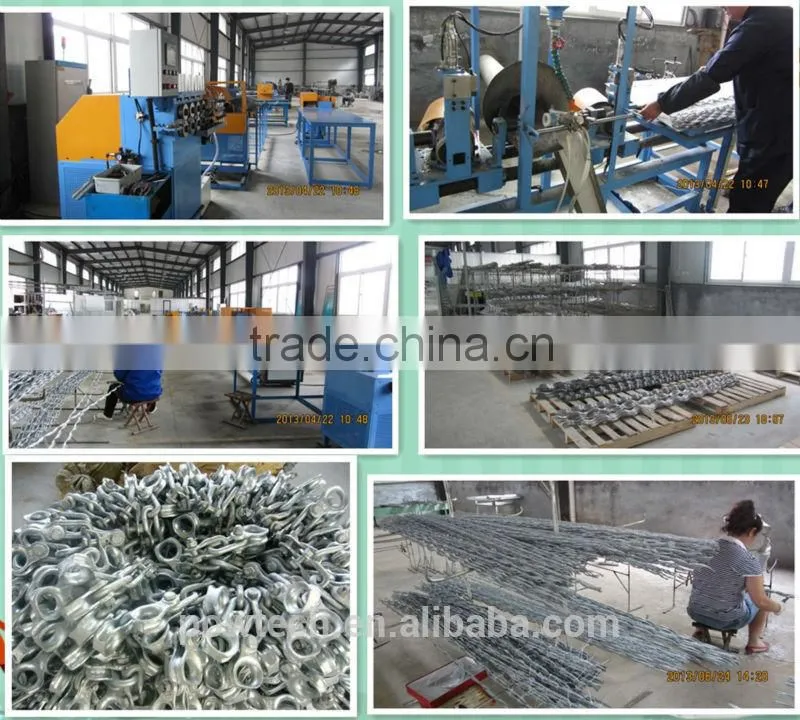

Production line

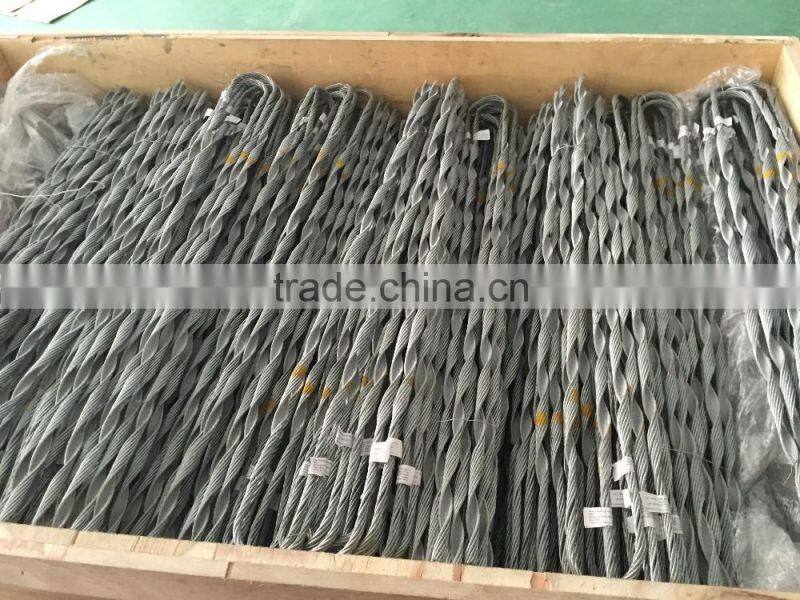

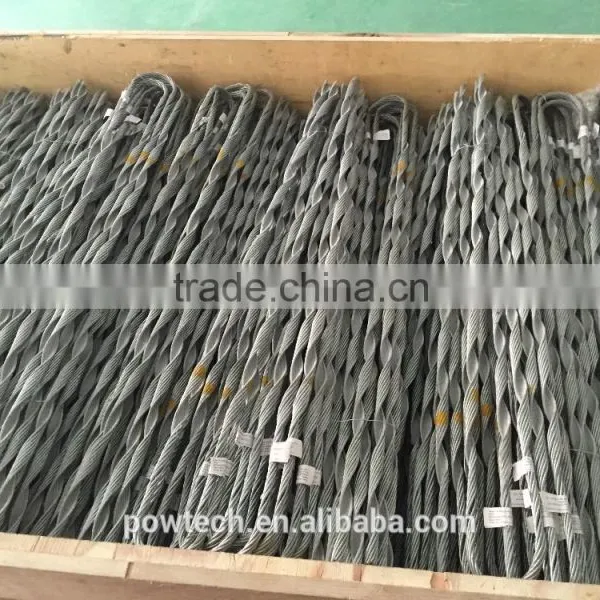

Warehouse

Certifications

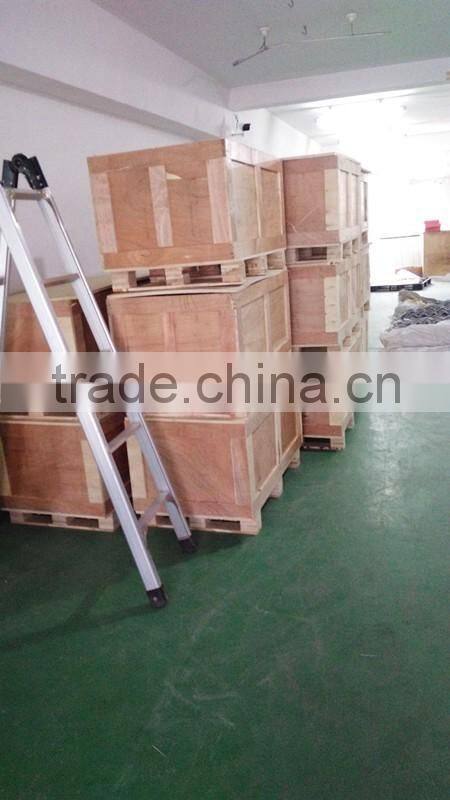

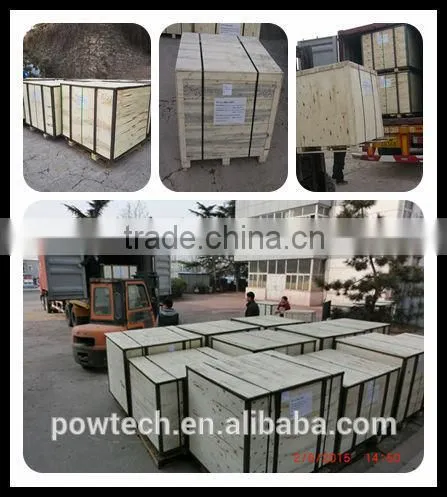

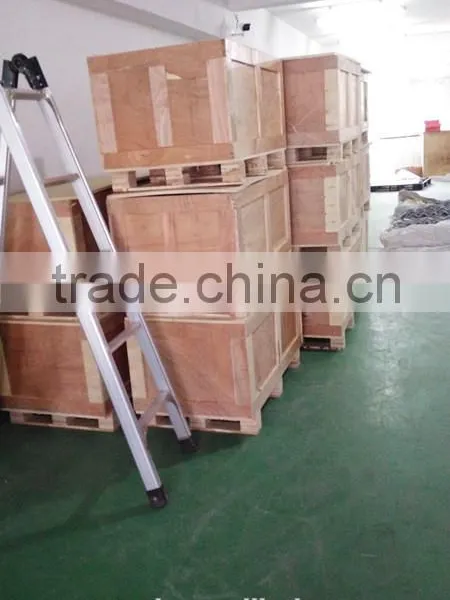

Packaging & Shipping

why choose us

1.Excellent quality

2.Favoured price

3.Professional after-sales service

4.Experienced workers team

5.ADSS/OPGW cable,hardware,cable fittings leading manufacturer from China

6.Customized
