Bird Flight Diverter
- 10000 Piece / Pieces per Month
- Qingdao
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | OPTELEC | Model Number: | BFD |
Product Description

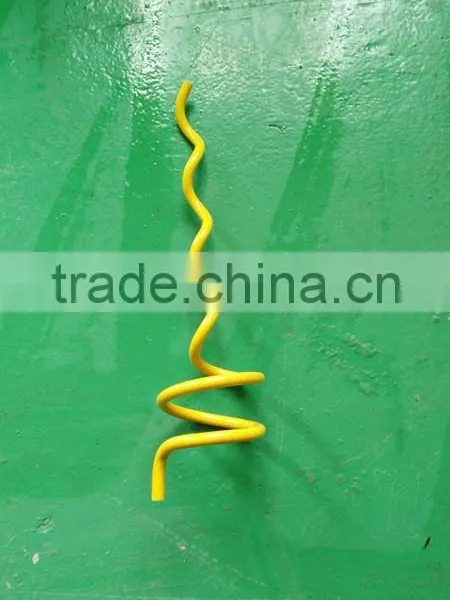

Bird protector/ Flight diverters for birds/ Preformed line diverters

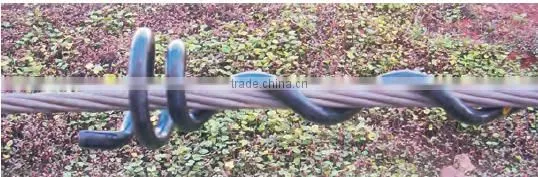

The Preformed Line Product flight diverter is designed for use on overhead conductors to create greater visibility for avian flight paths on overhead lines and tower down guys. Offering little wind resistance, it reduces hazards to both lines and birds. For low and medium voltage construction, apply flight diverter to phase conductors (bare or jacketed). For high voltages, it is typically used on shield wire.
Flight diverter is lightweight, offers little wind resistance and is easily and quickly applied by hand or hot stick. The positive grip on the conductor isdesigned to ensure that flight diverter remains in the applied location and does not move along the span under Aeolian vibration or other conditions.
Materials:
Manufactured from rigid high impact polyvinyl chloride (PVC), Fly diverter possesses excellent chemical resistance, strength properties and will retain good physical characteristics within a range of extreme temperatures. Industrial fumes and salt water cannot seriously degrade the properties of rigid PVC.

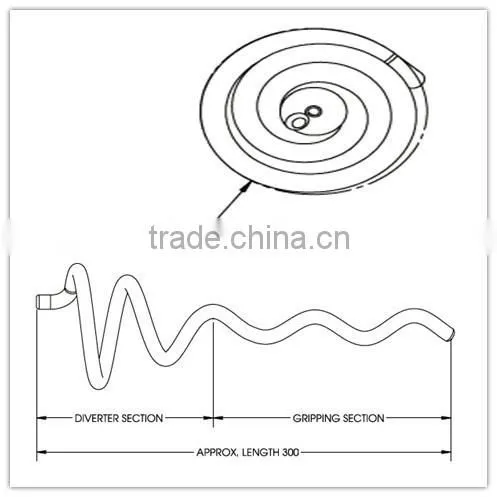

Drawings:
Spacing:
For optimal results, spacing distances are generally recommended at 15' intervals,depending upon local conditions. Since wind resistance is very limited, sufficient SWAN-FLIGHT Diverters can be used to ensure adequate visibility without creating stresses on the line. When marking adjacent spans, overall visibility is improved by staggering the placement between the spans.
Features:
Flight diverters are designed to offer the following advantages:
Increased conductor profile to provide increased visibility where large, slow moving bird flight paths are present
Economical and easily applied
Lightweight
Long service life without deterioration of material properties
Minimal wind resistance
Manufactured from gray or yellow high impact PVC with UV protection
Visibility
The diverter section increases the visible profile of the cable or conductor to ensure safety, but avoids an undesirable bulky outline.
Application:
Ensure the correct size fly diverter is used. For detailed installation description, refer to the application procedure. Hot stick application is fast and simple with standard equipment.
Technical Data sheet:
Catalogue Numer | Conductor Range (mm) | |
Min | Max | |
BFD249-349P/” | 6.3 | 8.9 |
BFD350-449P/” | 9.0 | 11.4 |
BFD450-599P/” | 11.5 | 15.2 |
BFD600-749P/” | 15.3 | 19.0 |
