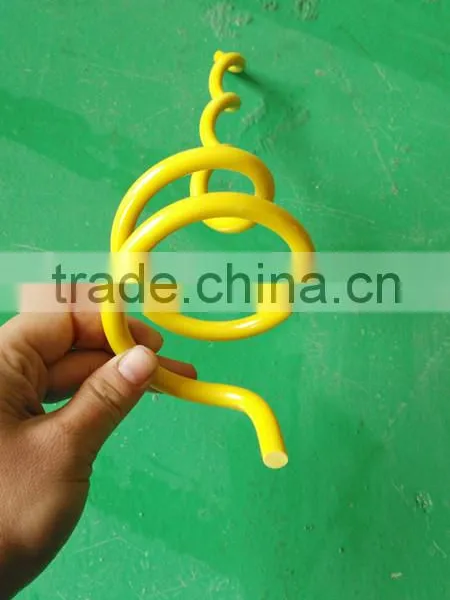

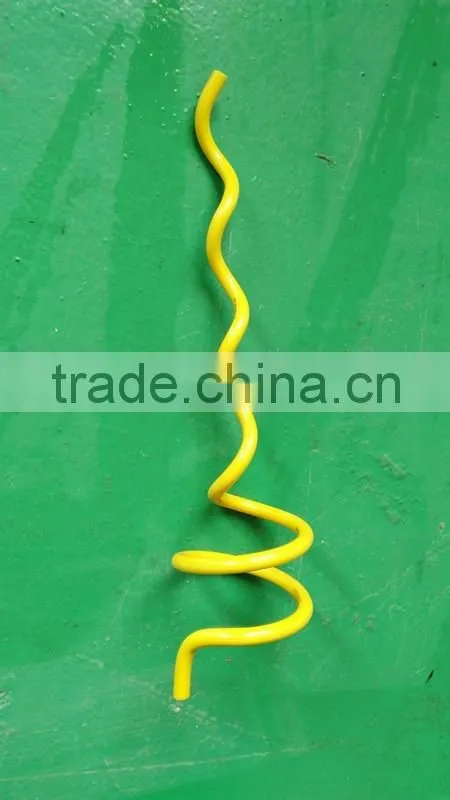

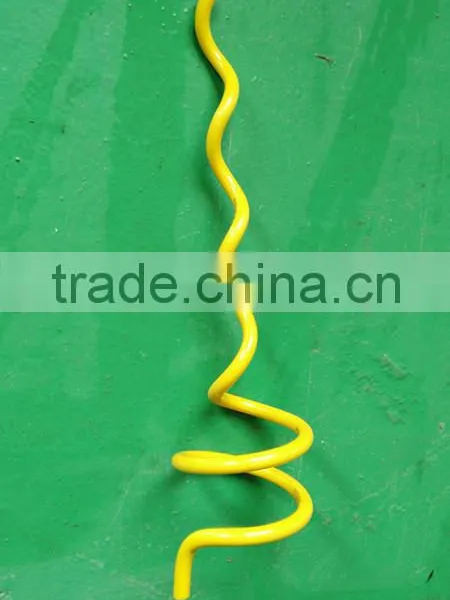

Bird protector / Flight diverters for birds / Preformed line diverters

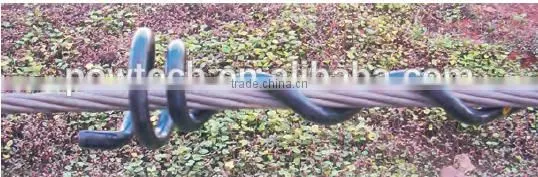

The Preformed Line Product flight diverter is designed for use on overhead conductors to create greater visibility for avian flight paths on overhead lines and tower down guys. Offering little wind resistance, it reduces hazards to both lines and birds. For low and medium voltage construction, apply flight diverter to phase conductors (bare or jacketed). For high voltages, it is typically used on shield wire.
Flight diverter is lightweight, offers little wind resistance and is easily and quickly applied by hand or hot stick. The positive grip on the conductor isdesigned to ensure that flight diverter remains in the applied location and does not move along the span under Aeolian vibration or other conditions.
Materials:
Manufactured from rigid high impact polyvinyl chloride (PVC), Fly diverter possesses excellent chemical resistance, strength properties and will retain good physical characteristics within a range of extreme temperatures. Industrial fumes and salt water cannot seriously degrade the properties of rigid PVC.
Drawings:
Spacing:
For optimal results, spacing distances are generally recommended at 15' intervals,depending upon local conditions. Since wind resistance is very limited, sufficient SWAN-FLIGHT Diverters can be used to ensure adequate visibility without creating stresses on the line. When marking adjacent spans, overall visibility is improved by staggering the placement between the spans.
Features:
Flight diverters are designed to offer the following advantages:
Increased conductor profile to provide increased visibility where large, slow moving bird flight paths are present
Economical and easily applied
Lightweight
Long service life without deterioration of material properties
Minimal wind resistance
Manufactured from gray or yellow high impact PVC with UV protection
Visibility
The diverter section increases the visible profile of the cable or conductor to ensure safety, but avoids an undesirable bulky outline.
Application:
Ensure the correct size fly diverter is used. For detailed installation description, refer to the application procedure. Hot stick application is fast and simple with standard equipment.
Technical Data sheet:
| Flight Diverter For Birds | |||||||
| Catalogue | Conductor Range(Inches) | Overall length(Inches) | Diameter of Diverter Coil(Inches) | Diameter of PVC Rod(Inches) | Approx Weiht(lbs) | Color Code | |
| Number | Min | Max | |||||
| SFD-0445 | 0.175 | 0.249 | 20 | 7 | 0.375 | 0.4 | Black |
| SFD-0635 | 0.25 | 0.349 | 23 | 7 | 0.375 | 0.46 | Blue |
| SFD-0890 | 0.35 | 0.449 | 25 | 7.5 | 0.375 | 0.5 | Brown |
| SFD-1140 | 0.45 | 0.599 | 35 | 8 | 0.375 | 0.7 | Green |
| SFD-1520 | 0.6 | 0.77 | 38 | 8 | 0.5 | 1.4 | Purple |
| SFD-1960 | 0.771 | 0.858 | 38 | 8 | 0.5 | 1.4 | Red |
| SFD-2220 | 0.859 | 0.942 | 40 | 8 | 0.5 | 1.5 | Orange |
| SFD-2460 | 0.943 | 1.121 | 40 | 8 | 0.5 | 1.5 | Pink |
| SFD-2700 | 1.122 | 1.306 | 40 | 8 | 0.5 | 2 | Gray* |
| SFD-3035 | 1.307 | 1.53 | 46 | 8 | 0.5 | 2 | Black |
1.Strict quality control system
2.Factory direct-sales,Lower purchasing cost
3.Professional,efficient after-sales service,Time and manpower saving
4.Experienced workers team,Advanced technicians,Sophisticated equipment
5.Small trial order/OEM product/artwork is acceptable
6.ADSS/OPGW cable,Cable accessories supplier for 20 years from China,ISO certificated
Q1:Can u provide us with samples?
Powtech answer:Yes, we can provide 1-2 pieces free samples, But u should pay express
cost or u provide us with express account number.
Q2:If we need customized/OEM product,Can u supply?
Powtech answer:Yes,Customized/OEM product/artwork is available for us.Professional
designers,Advanced technicians and mold modifications department ensure that we will make
the exact model for u accordingly.
Q3:If u can accept small trial order?
Powtech answer:Yes,Small trial order can be available also,But u should pay 100% T/T down
payment before production.
Q4:What payment terms available for u?
Powtech answer:If order amount less than 10000USD,100% T/T;If amount more than
10000USD,30%T/T in advance plus 70%T/T before shipment.
U can place an order via Alibaba website,Which is also very safe
and has payment protection for u.
Q5:Can u offer discount ?
Powtech answer:Yes,Discount available on large order.The larger the order,The more
discount we will offer.
Q6:What is ur delivery time?
Powtech answer:Usually,Delivery will be made within 2 weeks after down payment;If order very
large,1 month we will need.Please note,Delivery time is production time,Shipping time not
included,If u want to know,We can help u consult shipping company for details.
