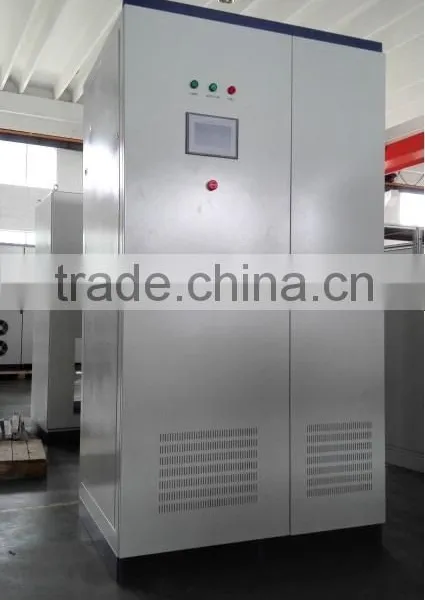

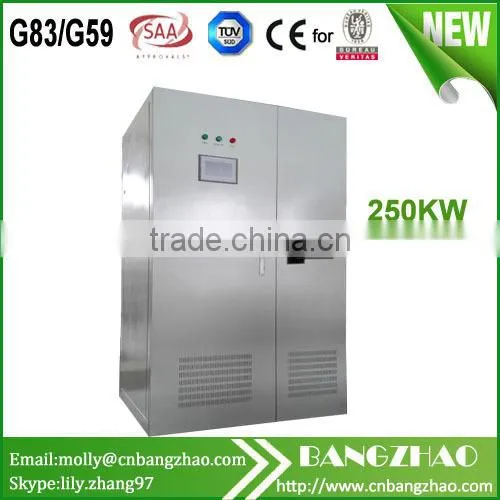

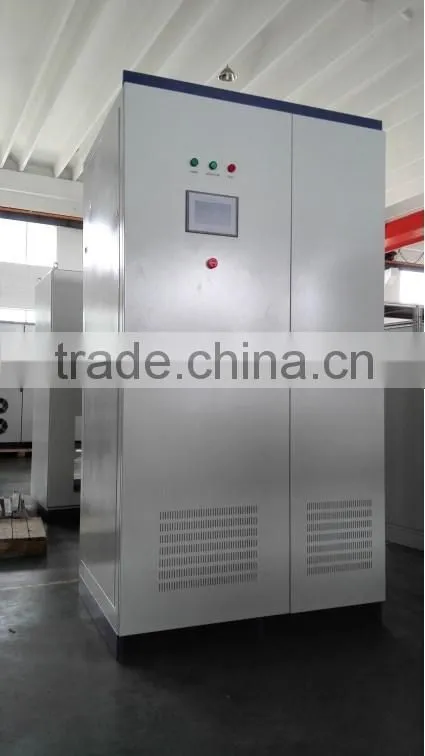

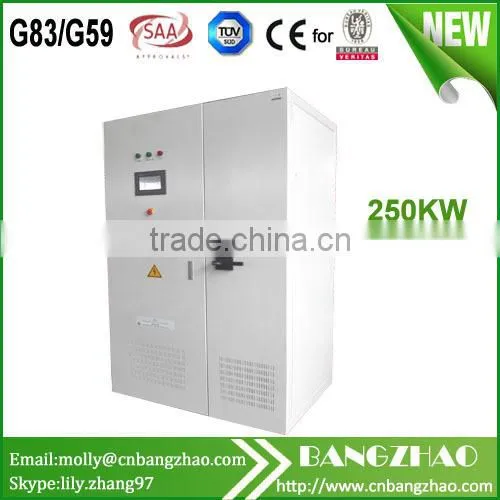

IGBT module on grid tied inverter 250kw for solar power system
- 8888 Piece / Pieces per Month
- Ningbo or Shanghai or Shengzhen
- Credit Card
-
electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
-
45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
-
EM15-G3 General used Vector control Frequency inverter(3 phase )
-
EMHEATER soft starter
-
EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
-
Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | BANGZHAO OR OEM | Model Number: | BZS-250KW |
| Output Power: | 1 - 200KW | Output Type: | Triple | Size: | 1000*800*2060 mm |
| Weight: | 850KG | Input Voltage: | 380~780V | Output Voltage: | 380V/400V/440V |
| Type: | DC/AC Inverters | Output Frequency: | 50Hz/60Hz | Output Current: | 625A |
Product Description
IGBT module on grid tied inverter 250kw for solar power system
1.Using IGBT from Mitsubishi company as the power components
2.Using American ATEMEL company microprocessor as figure controller
3.Perfect protection and warning functions
4.Wind turbine MPPT technology, real-time tracing wind turbine max. output power
5.Disturbance detection technology, anti-island control
6..Circuit frame compact, Max. Efficiency≥94%
7.Outdoor stainless steel shell, fully sealed installation
8.With RS485/RS232, Ethernet, GPRS (optional) interfaces, remote data collection and surveillance
9.Pure sine wave output, automatic synchronization grid connected, non-polluting to the power grid, no impact
10..Inverting current close-cycle control,power to control and adjustable
11..Big-screen English LCD, perfect display, interface-friendly
Model | BZS-250KW | |
Isolation type | Low frequency transformer isolation | |
DC Input | Max. DC power | 275KWp |
Max. allowable input voltage | 900VDC | |
DC input voltage range,MPPT | DC450~820V | |
Max. input current | 600A | |
AC Output | Rated Output Power | 250KW |
Grid Voltage range | AC310 ~ 450 V | |
Normal Grid Frequency | 50/60Hz±1% | |
THD of AC current | <3%(nominal power) | |
Power factor | >0.99 | |
Max. efficiency | 97.3% | |
Euro efficiency | 96.7% | |
Structure | Operating Temp. | -25℃~+55℃ |
Protection Class | IP20 | |

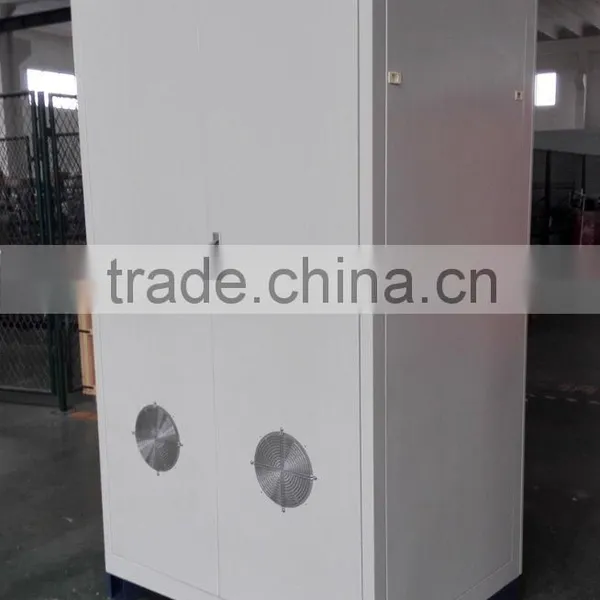

Cooling system | Controlled forced-air cool | |
Power Consumption at Night | <100W | |
Relative humidity | 0~90%,non-condensing | |
Noise | <60dB | |
Data Interfaces | RS485(Modbus protocol) | |
Display | LCD | |
Altitude(m) | 5000meters(More than 2000 meters down the amount to be used) | |
Communications monitoring | Inverter via RS485 communication for start-stop control and routine data monitoring | |
Dimensions(W*H*D) | 2000*800*2060mm | |
Certifications | CE, | |
The output voltage we can produce according to customer requirement.
IGBT module on grid tied inverter 250kw for solar power system
Q 1. What's the payment term?
A. We accept TT,Western Union,Paypal,MoneyGram.
Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-7days for sample production,
Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or wooden case for protection.
Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.
Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs and big capacity near 500pcs.
Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 7. What kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .
Q8. What is the warranty period ?
A. Normally 1 year ,if order quantity enough can be extended to 3 years.
Q 8.How about the lifetime?
A:The life time for inverter is 15-20years.
OEM Services
1.Logo
Please offer us your own high resolution logo in JPG format,there should be two colors at most in the logo and there should be no gradient effect in the logo.
2.Label
Please offer us your own model numbers.
3. Manual
Please offer us the finished manual file that can be printed directly.
Lead Time
1.Sample orders will be delivered from our factory within 3-7 working days.
2.General orders will be delivered from our factory within 15-30working days.
3.Big orders will be delivered from our factory within 45 working days at most
Shipment
1.By EMS,DHL,FedEx,TNT,UPS or other express.
2.By our forwarding agent(by air or by sea).
3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
