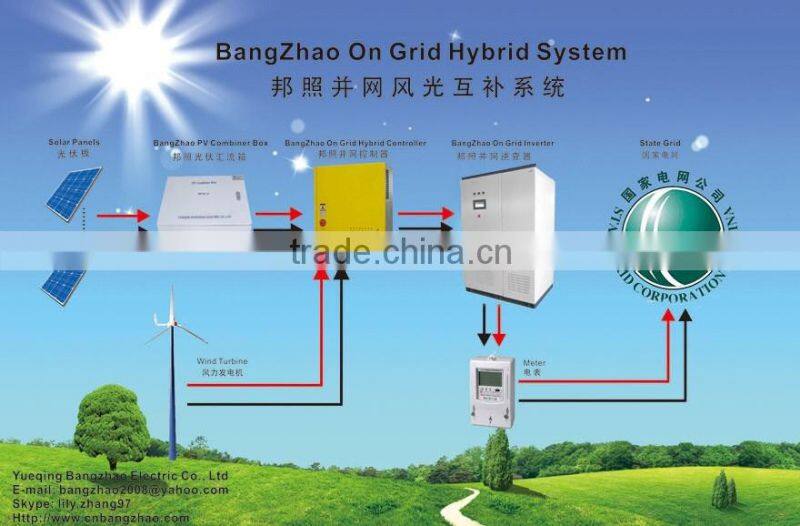

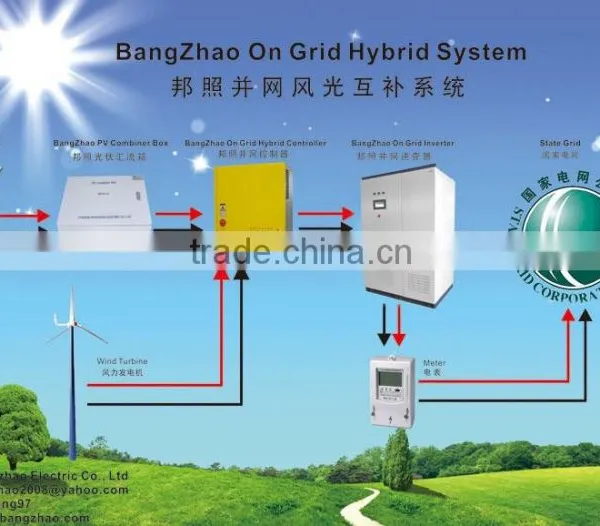

Large power wind on-grid inverters BZS-500KW with low frequency transformer
Hot Selling 500KW Wind Turbine Gird Tie Converter
1.MPPT efficiency>99%
2.Wide input voltage range
Large power wind on-grid inverters BZS-500KW with low frequency transformer
1.Using IGBT from Mitsubishi company as the power components
2.Using American ATEMEL company microprocessor as figure controller
3.Perfect protection and warning functions
4.Wind turbine MPPT technology, real-time tracing wind turbine max. output power
5.Disturbance detection technology, anti-island control
6..Circuit frame compact, Max. Efficiency≥94%
7.Outdoor stainless steel shell, fully sealed installation
8.With RS485/RS232, Ethernet, GPRS (optional) interfaces, remote data collection and surveillance
9.Pure sine wave output, automatic synchronization grid connected, non-polluting to the power grid, no impact
10..Inverting current close-cycle control,power to control and adjustable
11..Big-screen English LCD, perfect display, interface-friendly
Type |
BZS-250K |
BZS-500K |
Rated AC output power |
250 KW |
500 KW |
Insulate mode |
Low frequency transformer |
|
Max. open circuit voltage |
1150V |
|
MPPT range |
400~1150V |
|
Max. input current |
625A |
1250A |
Can access array of parallel group |
10group |
|
|
Connecting mode of battery board |
Connection terminals |
|
Max. efficiency |
95% |
|
Europe efficiency |
94% |
|
|
Operating range utility voltage(three phase) |
320~440VAC |
|
|
Operating range utility frequency |
50HZ±2% |
|
|
Total Harmonic Distortion (THD) |
<3%(rated power) |
|
Power factor |
>0.99 |
|
|
Zero power consumption at night |
<10W |
|
Communication Interface |
RS485 |
|
|
Electrical insulation properties |
1500Wc,1 minute |
|
|
Operation surroundings Temperature |
-25~+60°C |
|
|
Operation surroundings Humidity |
0~100% |
|
Protection |
Protection for input connecting contrary, input lack of voltage, output over load, output short circuit and over heat. |
|
Cooling mode |
Windy |
|
Noisy |
<50dB |
|
Protect degree |
IP20(indoor),IP65(outdoor) |
|
Size(L×W×Hmm) |
2250*850*2180 |
2400*800*2260 |
Weight(KG) |
1200 |
1800 |
The output voltage we can produce according to customer requirement.
Large power wind on-grid inverters BZS-500KW with low frequency transformer
Q 1. What's the payment term?
A. We accept TT,Western Union,Paypal,MoneyGram.
Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-7days for sample production,
Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or wooden case for protection.
Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.
Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs and big capacity near 500pcs.
Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 7. What kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .
Q8. What is the warranty period ?
A. Normally 1 year ,if order quantity enough can be extended to 3 years.
Q 8.How about the lifetime?
A:The life time for inverter is 15-20years.
OEM Services
1.Logo
Please offer us your own high resolution logo in JPG format,there should be two colors at most in the logo and there should be no gradient effect in the logo.
2.Label
Please offer us your own model numbers.
3. Manual
Please offer us the finished manual file that can be printed directly.
Lead Time
1.Sample orders will be delivered from our factory within 3-7 working days.
2.General orders will be delivered from our factory within 15-30working days.
3.Big orders will be delivered from our factory within 45 working days at most
Shipment
1.By EMS,DHL,FedEx,TNT,UPS or other express.
2.By our forwarding agent(by air or by sea).
3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
