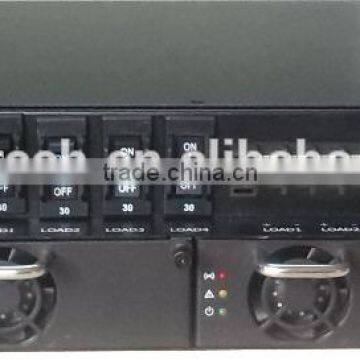

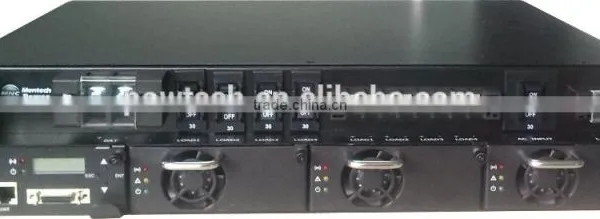

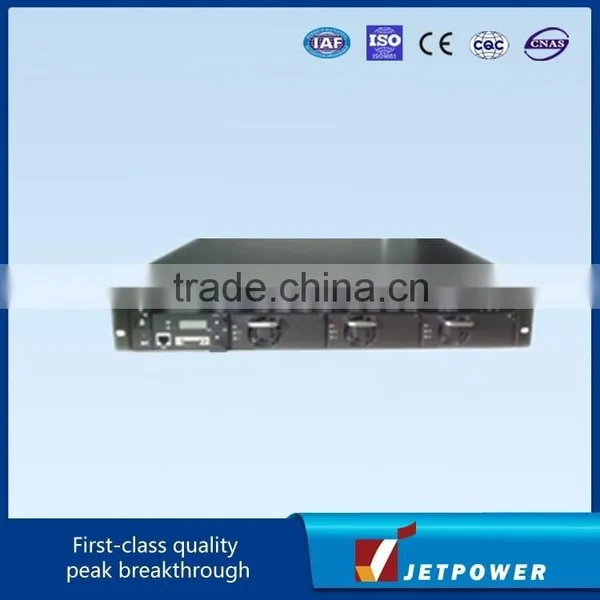

3200W switch mode power system/ rectifier system/ DC power system
Product Description
sub rack 1U 60A swithing power system
Product features:

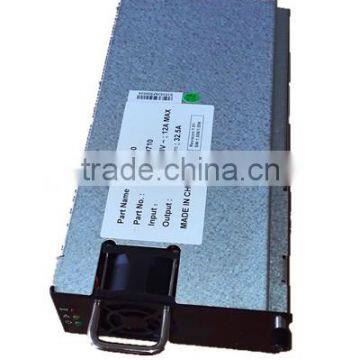

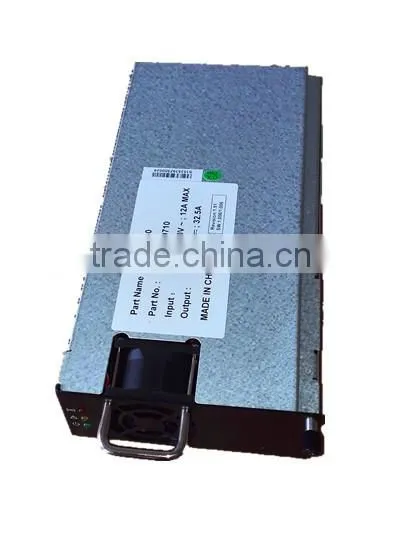

Rectifier model: CR4830
Controller model: CAS-03-H5240R0
Sizes: 482×290×44mm
System capacity: 30~90A
AC input: 1*30A/2P, 220Vac/1pase, 3wire
DC distribution: 4pcs* 30A/1P load
1pcs* 70A/1P battery
4pcs * alarm relay
Controller: with RS232/RS485, LCD display
Rectifier qty: 1~3pcs
Model |
SPS30-48/MR4815 |
SPS30-48/MR4815M |
SPS60-48/CR4830 |
SPS90-48/CR4830 |
SPS90-48A/CR4830 B |
SPS120-48A/CR4830 B |
WPS30-48/MR4815 |
Input voltage |
176~300Vac |
176~300Vac |
176~300Vac |
176~300Vac |
176~300Vac |
176~300Vac |
176~300Vac |
Output voltage |
42~58 Vdc |
42~58 Vdc |
42~58 Vdc |
42~58 Vdc |
42~58 Vdc |
42~58 Vdc |
42~58 Vdc |
Output current (A) |
30A |
30A |
60A |
90A |
90A |
120A |
30A |
Rated output power: |
1600W |
1600W |
3200W |
4800W |
4800W |
6400W |
1600W |
Load regulation |
≤0.5% |
≤0.5% |
≤0.5% |
≤0.5% |
≤0.5% |
≤0.5% |
≤0.5% |
Voltage regulation |
≤0.5% |
≤0.5% |
≤0.5% |
≤0.5% |
≤0.5% |
≤0.5% |
≤0.5% |
Operating temperature |
-40℃ ~75℃ |
-40℃ ~75℃ |
-40℃ ~75℃ |
-40℃ ~75℃ |
-40℃ ~75℃ |
-40℃ ~75℃ |
-40℃ ~75℃ |
Relative humidity |
90% RH |
90% RH |
90% RH |
90% RH |
90% RH |
90% RH |
90% RH |
Dimension |
482*260*44mm Plastic panel |
482*260*44mm Metal panel |
482*260*44mm |
482*290*132mm |
482*290*88mm |
482*300*176mm |
560*250*680mm (wall-mount) |
Communication |
RS232/RS485 |
RS232/RS485 |
RS232/RS485 |
RS232/RS485 |
RS232/RS485 |
RS232/RS485 |
RS232/RS485 |
Standard |
JL60950/EN60950, EN55022, RoHS |
JL60950/EN60950, EN55022, RoHS |
JL60950/EN60950, EN55022, RoHS |
JL60950/EN60950, EN55022, RoHS |
JL60950/EN60950, EN55022, RoHS |
JL60950/EN60950, EN55022, RoHS |
JL60950/EN60950, EN55022, RoHS |
DC distribution |
1* 30A load 1*30A Batt 4* Alarm relay |
1* 30A load 1*30A Batt 4* Alarm relay |
1* 60A load 1*60A Batt 4* Alarm relay |
4* 32A/1P load, 4* 16A/1P load 2* 63A/1P Batt or 1* 100A/1P Batt 4* alarm relay |
4pcs* 30A/1P load 1pcs* 70A/1P Batt 4pcs * alarm relay |
2pcs* 63A/1P load; 4pcs*32A/1P load; 4pcs*16A/1P load 2pcs * 100A/1P Batt 4pcs * alarm rely |
24V/100W, 12V/150W 11pcs* 32A/2P Batt 4pcs *alarm relay |
1.Major manufacturer,Competitive price
2. ISO9001:2008 certification
3. 20 years' production experience
4. Turn-key solution for your transmission line
1. Abroad site installation & training available any time
2. Best prices compared to same configuration
3. Customized product available
4. Good after-sale response
5. Small order accepted
6. Excellent workmanship
