Low frequency Online UPS Power Supply ( 6KVA ~ 200KVA ) / Whale series
- 500 Piece / Pieces per Month
- Qingdao or per customer's requirements
- T/T
- Stackable Rack Energy Storage System Home energy storage system 5kWh 10kWh 15kWh and 20kWh
- Schneider Electric UPS
- Solar Generator With 5000W Inverter Portable Pull Rod LiFePO4 Battery Power Station
- 3000W Power bank EPS AC220V portable energy storage home power supply
- 5KW Outdoor Mobile Portable power station 220V Type-C DC12V DC5V Output UPS
- 500W portable UPS LFP Battery Solar Generator Backup Power Station
Product Details
Place of Origin: | Shandong, China | Brand Name: | JETPOWER | Model Number: | MPT |
Phase: | Three Phase | Protection: | Overvoltage | Output Voltage: | 380kvA |
Type: | On-line | Application: | Security / Monitoring / Alarm |
Product Description

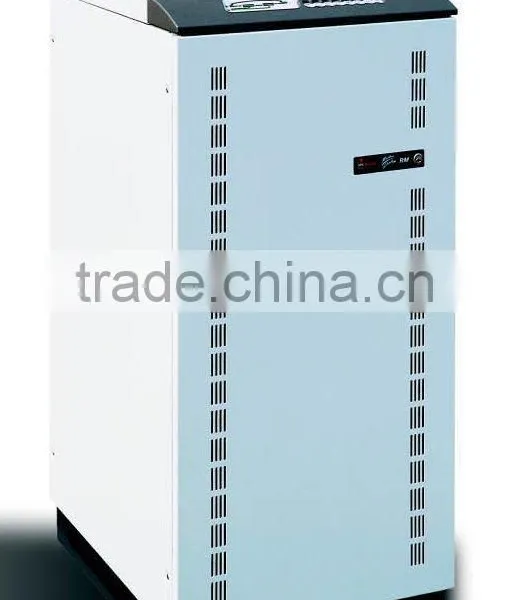

Online low frequency three phase 3 ins/ 3 outs and 3 ins / 1out UPS / Whale series
Product specifications:
1.Input: 380Vac +/-25%, 3phase
2. Out: 380Vac/3phase
3. Isolation transformer on output
4.Parallel and redundant function
UPS: Low Frequence Online UPS
MPT Series are designed to protect large critical applications such as data processing centers, mainframes, manufacturing and telecommunications systems Using online double conversion IGBT technology and two built-in INTEL microprocessors, MPTseries guarantee a perfect sine wave output with stabilized voltage and frequency. Remote control and tele-control via modem provide remote monitoring and control and provide high levels of reliability
The MPT series are parallel redundant (up to 8 units) by means of a sophisticated logic control system. A wide range of matching battery cabinets are available for extended runtime. Other options include harmonic suppression filters.
Technical Specifications:
Power (kVA) | 10 | 15 | 20 | 30 | 40 | 60 | 80 | 100 | 120 | |
Input | Nominal voltage | 400Vac, three phase | ||||||||
Voltage range | +/-20% | |||||||||
Frequency range | 45~65Hz | |||||||||
Power factor | >0.92 | |||||||||
Current THD | <5% | |||||||||
Soft startup | 10seconds | |||||||||
Bypass | Nominal voltage | 230Vac, single phase | ||||||||
Allowable voltage | +/-15% (+/-10% ~ +/-25%, settable thru LCD) | |||||||||
Nominal frequency | 50/60Hz (auto sense) | |||||||||
Allowable frequency | +/-2% (+/-1% ~+/-5%, settable thru LCD) | |||||||||
Battery | Voltage | 384Vdc | 480Vdc | |||||||
Max. charge current | 0.2 * C10 | |||||||||
Output | Rated power (kVA) | 10 | 15 | 20 | 30 | 40 | 60 | 80 | 100 | 120 |
Active power (kW) | 8 | 12 | 16 | 24 | 32 | 48 | 64 | 80 | 96 | |
Nominal voltage | 400Vac, three phase/5wire (348~424, settable) | |||||||||
Voltage regulation | +/-1% (static); +/-5% (dynamic) | |||||||||
Nominal current (A) | 14 | 22 | 29 | 43 | 58 | 87 | 115 | 145 | 174 | |
Frequency | 50/60Hz (settable) | |||||||||
Frequency regulation | +/-0.05% (Battery mode); +/-2% (AC normal, settable from +/-1% to +/-5%) | |||||||||
Crest ratio | 3:1 | |||||||||
Wave form | True sine wave | |||||||||
Overload | 110% for 5hrs, 125% for 10mintues, 150% for 1mintues | |||||||||
Interface | Contact relay | Dry contact relay | ||||||||
Comm. | RS-232 | |||||||||
Remote control | Emergency power off, bypass | |||||||||
Noise | 54dBA, 1m | 60dBA, 1m | 65dBA, 1m | |||||||
Protection | IP20 | |||||||||
Ambient | Temperature: 0~40, <95% no condensation | |||||||||
Efficiency | >90% | >91% | >92% | |||||||
Safety & EMC | Safety: EN62040-1; EMC: EN62040-2 ClassA 73/23-93/68-89/336 EEC EN62040-3 | |||||||||
Physical | Weight(kg) | 210 | 220 | 230 | 282 | 330 | 450 | 555 | 650 | 730 |
Size (H*W*D,mm) | 1200*555*720 | 1400*800*740 | 1400*1070*740 |
1.Strict quality control system
2.Experienced workers team,Advanced technology,Sophisticated machine
3.Better price than the same configration
4.Professional after-sales service on site
5.Online UPS,Line ineteractive UPS,Offline UPS leading supplier from China
6.Customized design is acceptable
