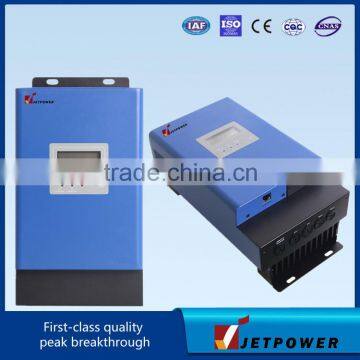

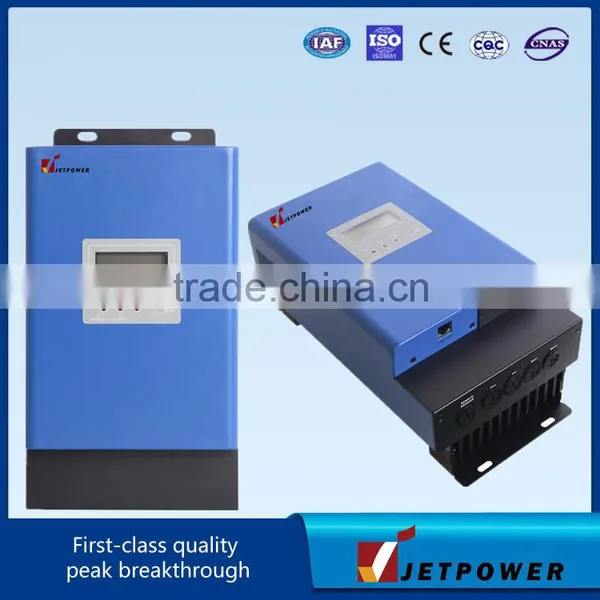

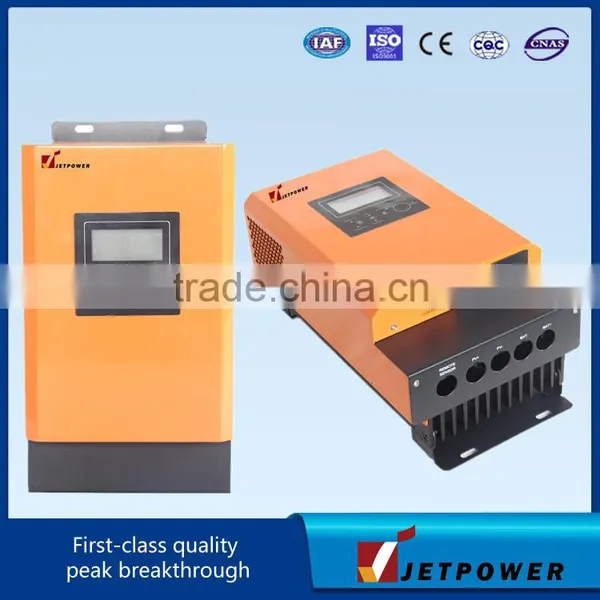

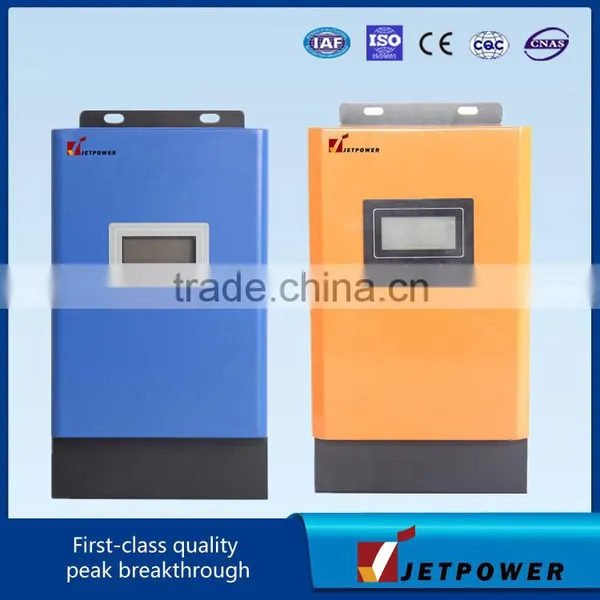

60A MPPT Solar Charge Controller / Solar Controller
- QINGDAO PORT
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | JETPOWER | |
| Model Number | SC-60A | Protection | Other, Overcharge Protection/Overload Protection | |
| Weight | 4.5KG | Output Voltage | 12VDC 24VDC 48VDC | |
| Application | Other |
Product Description
110V 60A Solar Controller / Standalone PV Controller
Product Description
110V DC input Solar controller wall mounted
Features:
1, Intelligent Maximum Power Point Tracking technology increase efficiency 25%-30%
2, Compatible for PV system in 12V, 24V or 48V
3, Three-stage charging optimizes battery performance
4, Maximum charging current up to 60A
5, Maximum efficiency up to 98%
6, Battry temperature sensor (BTS) automatically provides temperature compensation
7, Support wide range of lead-acid batteries including wet, AGM, and gel batteries
8, Multifunction LCD displays detailed information
Applicantions:
Solar charge controller is mainly used for solar power station, home solar system, solar street light control
system, mobile solar power system, DC wind solar generating systems.
Technical parameters
Model | SC-60A | ||
Input | |||
MPPT Range @Operating Voltage | 60~115VDC | ||
Maximum PV Array Open Circuit Voltage | 145VDC | ||
Maximum PV Array Power | 800W | 1600W | 3200W |
Maximum Input Current | 50A | ||
Output | |||
Nominal Battery Voltage | 12VDC | 24VDC | 48VDC |
Connected Battery Type | Sealed Lead Acid, AGM, or Gel | ||
Maximum Charge Current | 60A | ||
Maximum Efficiency | 98% | ||
Charging Method | Three Stages: Bulk, Absorption and Floating | ||
Protection | |||
Overload Protection | >110%: Audible Alarm | ||
Overcharge Protection | Yes | ||
Polarity Reversal Protection @Solar Cell &Battery | Yes | ||
Indicators |
| ||
LCD Panel | indicating solar power, load level, battery voltage /capacity, charging current, and fault conditions | ||
LED Display | Three indicators for solar, charging, and load status | ||
Physical | |||
Dimension(D*W*H,mm) | 315*165*128 | ||
Net Weight (kg) | 4.5 | ||
Type of Mechanical | IP31 | ||
Environment | |||
Humidity | 0~100% RH (No Condensing) | ||
Operating Temperature | -20℃ to 55℃ | ||
Storage Temperature | -40℃ to 75℃ | ||
Altitude | 0~3000m | ||
