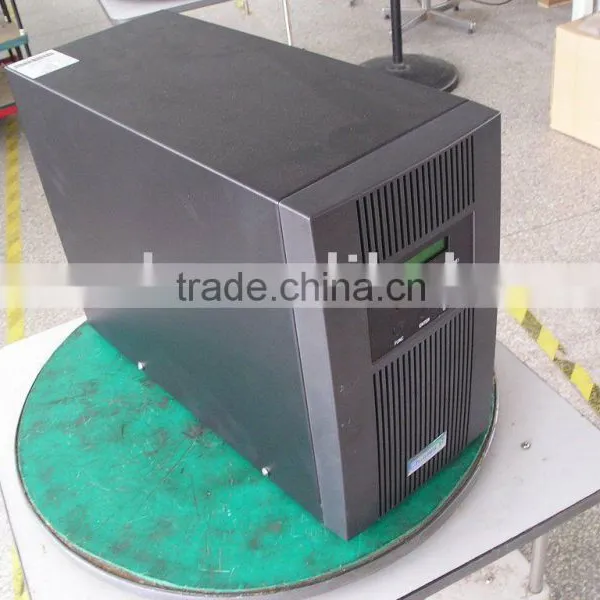

Online UPS 3kva

Name: Online UPS 3kva
Brand: Powtech
SKU: 129447953
Availability: InStock

Negotiable MOQ: 20 Units (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Powtech

Model Number:

Qingdao Powtech Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Powtech

Model Number PP

Phase Single Phase

Protection Other, Lighting/Over voltage/Output short circuit/Overload

Weight 7.5~34KG

Output Voltage 220/230/240VAC

Type Other, On-line, High frequency

Application Telecommunications

Specifications

1.High frequency online UPS
2.On-line double conversion
3.Input: 220Vac +/-25%,1phase
4.Output: 220Vac, 1phase

Model		1KVA(L)	2KVA(L)		3KVA(L)
Capacity (KW)		0.7KW	1.4KW		2.1KW
Input	Voltage	Single phase 230Vac; 160300Vac at 10070% load; 140300Vac at 7050% load; 120300Vac at 050%load.
	Frequency	50Hz or 60Hz +/- 4Hz
	Power Factor	0.95
Output	Voltage, Frequency	Single phase:220Vac+/-2%(230V or 240V re-settable via LCD panel), 50Hz or 60Hz+/-0.2Hz (Battery mode)
	Transient Response	+/-3%(100% load change)
	Waveform
	Distortion	True sine wave; THD3% at 0~100 linear load
	Overload capacity	110150% for 30sec, then transfer to bypass and auto resume; 150% for 300ms
	Crest Ratio	3:1
Battery	Capacity	7Ah /12V*3pcs	7Ah/12V*8pcs	7Ah/12V*8pcs
	Recharge time	5 hrs to 90% of full capacity after full load discharge
Bypass	Automatic Transfer	Overload and UPS failure
	Transfer by setting	Voltage range:176V~253V (re-settable via LCD panel)
Transfer Time		0 ms
Indicator		Three (3) LED and one (1) LCD
Interface	RS-232	Power monitoring software (UPSilon 2000)
	SNMP slot (optional)	SNMP manager and Web browser
Surge Protection		RJ11 I/O port available for 10 base T network or Fax / Modem
Ambient	Temperature	0~40 ; 32~104
	Relative Humidity	0-95% non-condensing
	Acoustic Noise (at 1m)	45 dB		50dB
Physical	Net weight	14.5kg (7.5kg)	33kg (13.8kg)	34kg (14.8kg)
	Dimension (LWH, mm)	400145220	465200352	465200352
