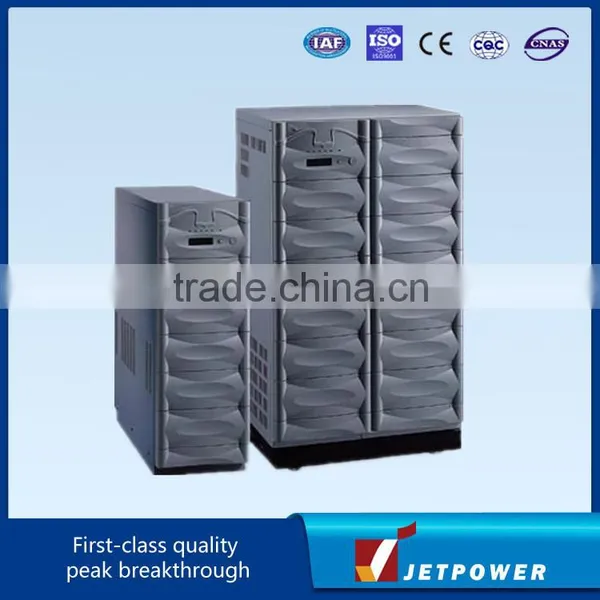

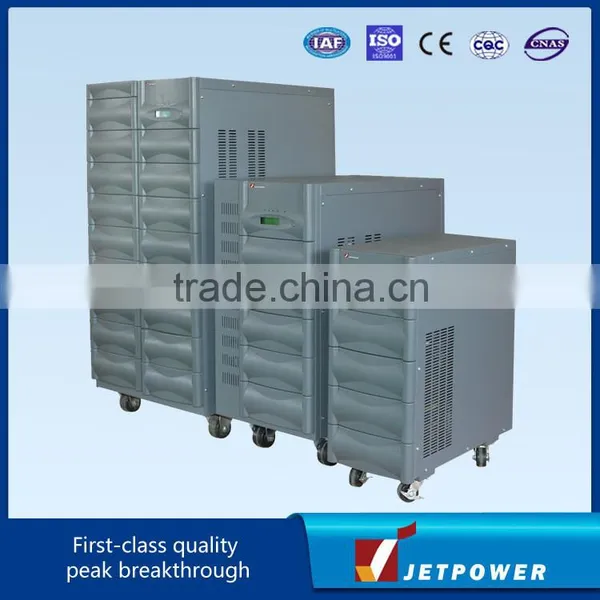

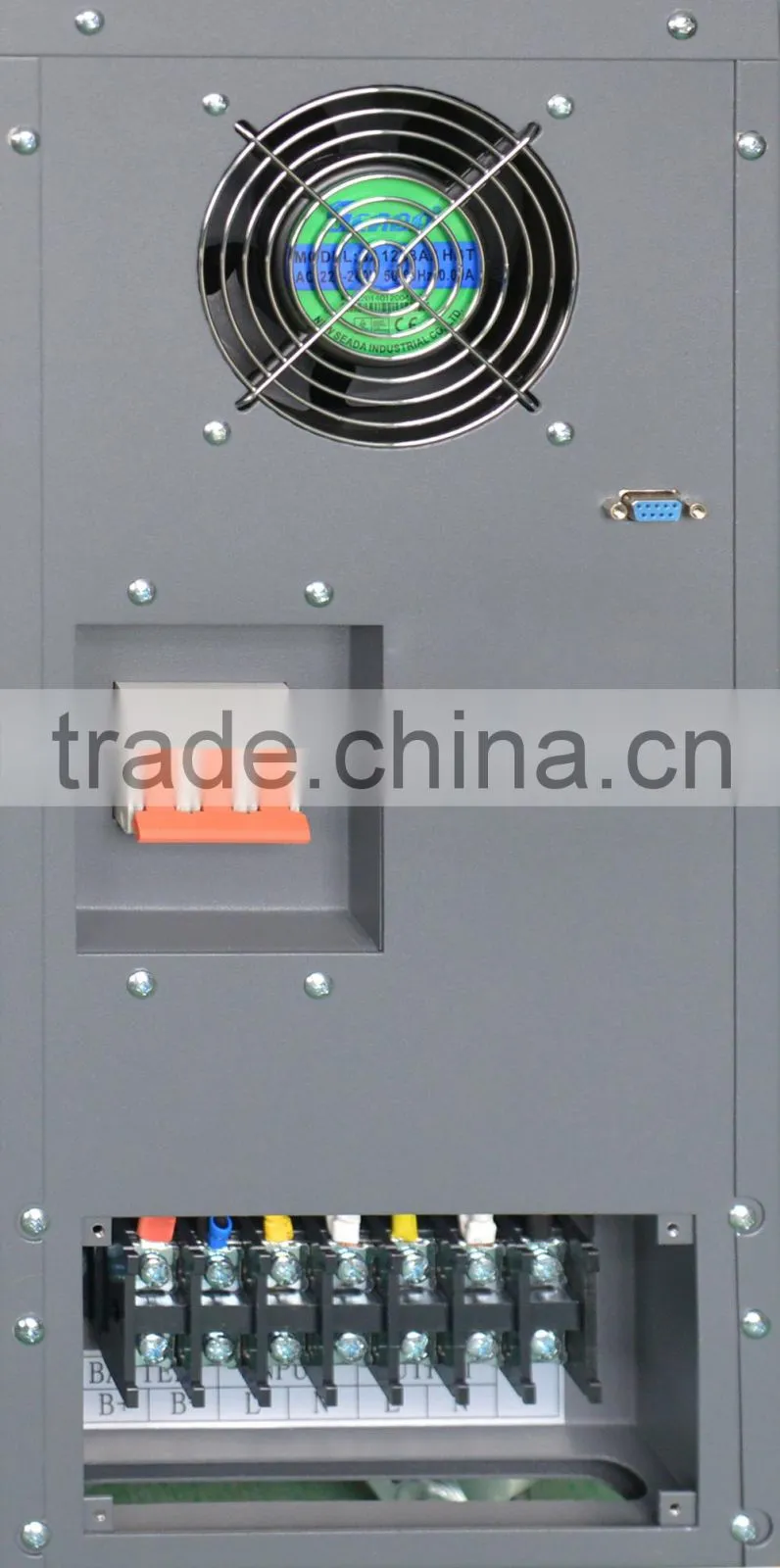

Online Low Frequency UPS 20kva

PQZ6K3~60K3Three- in and single out

Mode:

PQZ6K3

PQZ10K3

PQZ15K3

PQZ20K3

PQZ30K3

PQZ40K3

PQZ50K3

PQZ60K3

Capacity (VA/W)

6K/4.8K

10K/8K

15K/12K

20K/16K

30K/24K

40K/32K

50K/40

60K/48K

Input Voltage

Three phase with four Lines+ground wire,380V±25%

Noise

≤60dB(distance 1m)

≤65dB(distance 1m)

Size

(D×W×H,mm)

620×343×995

650×700×1510

Weight(Kg) (w/o battery)

130

165

180

220

400

450

530

620

Input

Frequency

50Hz /60Hz ± 10%

Power factor

≥0.95

Output

Voltage

{0>

22220V± 0.5%<}0{><0}

Voltage regulation

Stable ±1%,dynamic ±2%, (<20ms for 0-100%load change)

Frequency stabilization

50Hz /60Hz ± 0.5% (Battery Mode)

Frequency slow rate

< 1Hz / second

Transient response

± 0.4% (100% instant load fluctuation)

THD

<3% for linear load; <5% for non-linear load

Overload

110%~150% for 10seconds; >150% for 1second

Wave form

True sine wave

Efficiency

Input AC to output AC

> 90%

Transfer time

AC mains fails and/or restores

0second

 UPS to BYPASS

< 4 ms

Battery

Voltage

192V

Charge time

8 hrs recharge to 90% capacity

Alarm

Battery discharge

Beeps once every 4 seconds when battery discharge

Beeps once every 1 second when battery low.

Beeps continuously when battery discharge stop

UPS fault

Beeps continuously

Protection

Battery low

Auto shutdown when battery low without fuse protection.

Overload

110∼150% overload for 10 seconds, then auto jumps to BYPASS; Auto resumes when overload removed

Over temperature

Auto jumps to BYPASS when UPS internal temperature >85°C

Output short circuit

Current limits, auto shutdown, no fuse switch protection.

UPS fault

Auto jumps to BYPASS

Noise Filter<0}

10~10KHz at 40 db; 100KHz~100MHz at 70 db

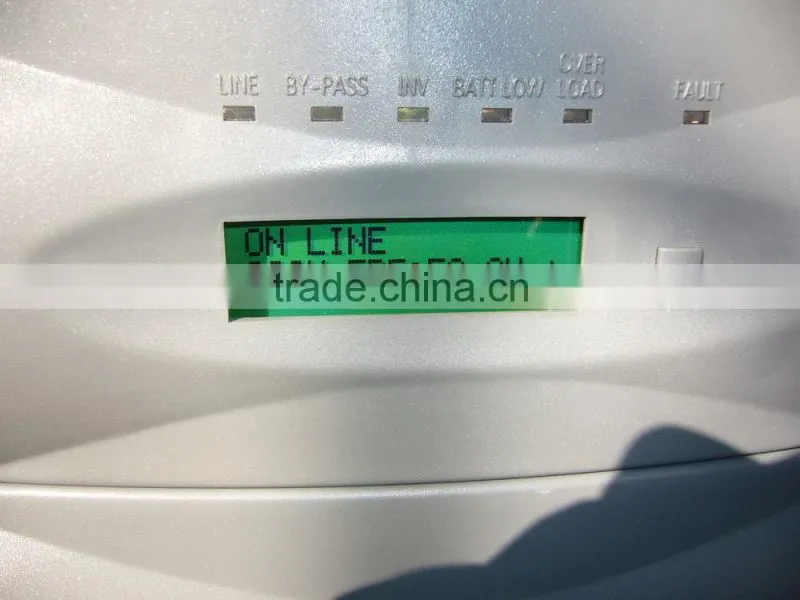

Display

LCD

Input and output voltage, frequency; battery voltage and output power (%), etc

LED (BLV)

LED (BLV) turns on when battery voltage low.

Ambient

Temperature

0~40

Relative humidity

10%~90% (No condensation)

Altitude

1500 meters
