Product Details
| Place of Origin: | Shandong, China | Brand Name: | JETPOWER | Model Number: | ND125-1200 |
| Output Power: | 1 - 200KW | Output Type: | Single | Size: | 330*640*885 |
| Weight: | 122 | Input Voltage: | 125Vdc | Output Voltage: | 220Vac |
| Type: | DC/AC Inverters | Output Frequency: | 50/60Hz | Output Current: | 45A |
Product Description

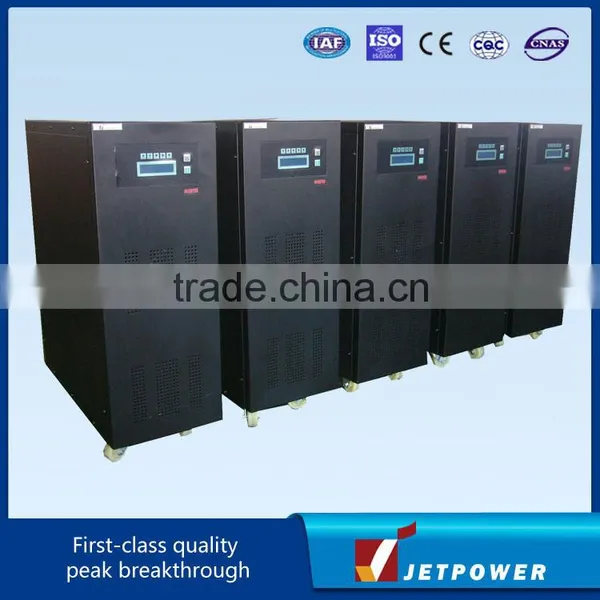

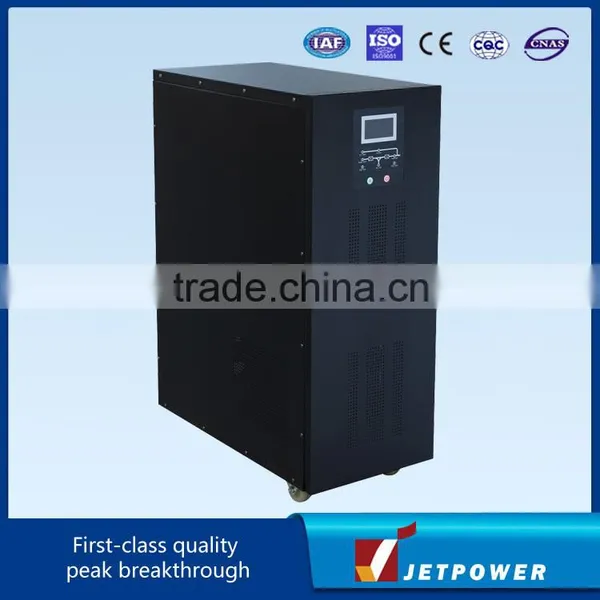

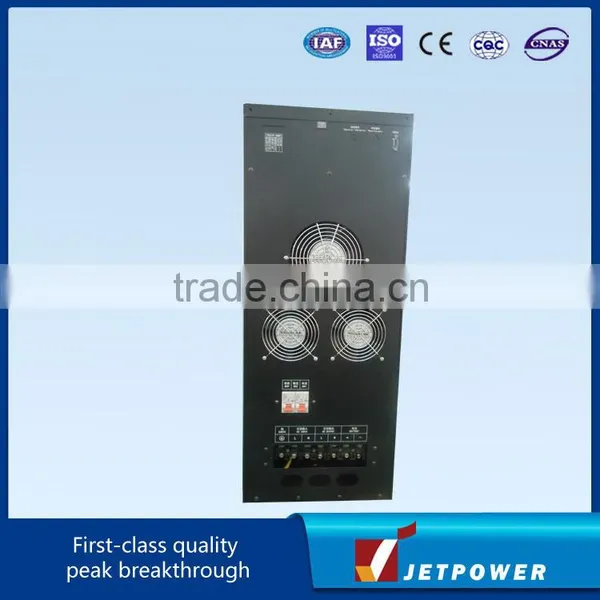

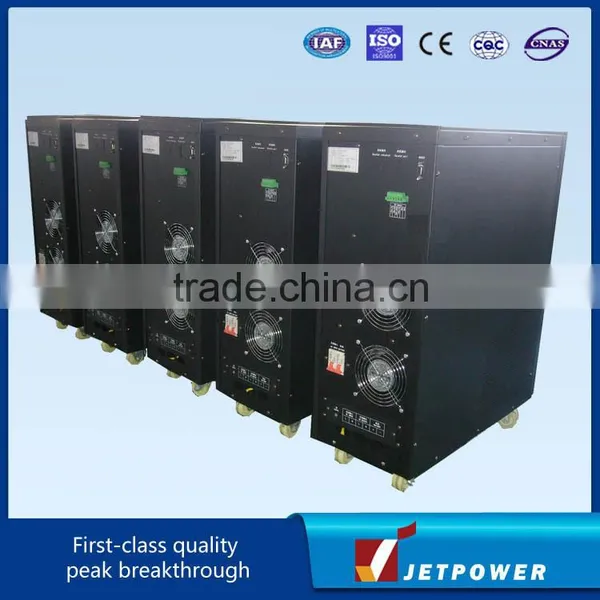

8KW 1 phase DC to AC inverter/125V input 220V output inverter(1K,2K,3K,5K,10K,20K)
Product Description
Features:
1.Advance IGBT inverted technology
2.Multiple CPU intelligent control
3.Multiple protection function of over-voltage ,short circuit, over-temperature on input
4.Special industrial design to ensure the safety in worse environment
5.Reliable, filtering and stable sine wave output
6.Static bypass switch
7.With output isolation transformer
Tech. specs
| 125VDC/AC inverter (1phase output) | |||||||
| Model | ND 125 | ND 125 | ND 125 | ND 125 | ND 125 | ND 125 | |
| -1010 | -1020 | -1030 | -1050 | -1100 | -1200 | ||
| DC input | Rated DC input voltage (VDC) | 125 | |||||
| Rated DC input current (A) | 8 | 16.8 | 25.2 | 42 | 84 | 168 | |
| DC input voltage range (VDC) | 100~150Vdc | ||||||
| Bypass | Utility AC input voltage (VAC) | 220Vac±20%, 50Hz±10% | |||||
| Utility | Rated AC input voltage (A) | 4.5 | 9 | 13.5 | 22.7 | 45 | 91 |
| input | Bypass transfer time (ms) | ≤4 | |||||
| AC output | Rated capacity (KVA) | 1 | 2 | 3 | 5 | 10 | 20 |
| Rated output power (KW) | 0.8 | 1.6 | 2.4 | 4 | 8 | 16 | |
| Rated output voltage and frequency | 220VAC, 50HZ | ||||||
| Rated output current (A) | 4.5 | 9 | 13.5 | 22.7 | 45 | 91 | |
| Output voltage regulation (V) | 220Vac±2% | ||||||
| Output frequency regulation(Hz) | 50±1% | ||||||
| THD | ≤3% | ||||||
| Dynamic response (load 0←→100%) | 5% | ||||||
| Power factor | 0.8 | ||||||
| Overload | 150%,60s | ||||||
| Crest factor | 03:01 | ||||||
| Efficiency at rated load | 90% | ||||||
| Environment | Insulation strength (between input & output) | 1500VAC, 1min | |||||
| Noise (1m) | ≤50dB | ||||||
| Temperature | -10℃~+50℃ | ||||||
| Humidity | 0~90%, no condensation | ||||||
| Altitude (m) | ≤2000 | ||||||
| Communication interface | Dry relay | ||||||
| Cooling method | Forced air-cooling with temperature control | ||||||
| Sizes (W* D * H, mm) | 440×450×177 | 440×450×177 | 440×450×177 | 440×500×221.5 | 330×640×885 | 380×680×935 | |
| Weight (kg) | 30 | 50 | 55 | 70 | 122 | 175 | |
| Protection | DC input reversely protection, DC input under voltage,over voltage, over current, overload, short circuit, over temperature | ||||||
