110V DC/AC 1 phase inverter (1K,2K,3K,4K,5K,10K,20K,30K,50K)/4K DC to AC inverter 1 phase/Power inverter
USD $200 - $400
/ Unit
1 Unit(Min.Order)
- 1000 Unit / Units per Month
- Qingdao
- T/T Credit Card
You May Like
-
electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
-
45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
-
EM15-G3 General used Vector control Frequency inverter(3 phase )
-
EMHEATER soft starter
-
EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
-
Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
| Place of Origin: | Shandong, China | Brand Name: | JETPOWER | Model Number: | ND110-1040 |
| Output Power: | 1 - 200KW | Output Type: | Single | Size: | 440*500*221.5 |
| Weight: | 50KG | Input Voltage: | 110VDC | Output Voltage: | 220Vac |
| Type: | DC/AC Inverters | Output Frequency: | 50/60Hz | Output Current: | 18.5A |
Product Description
110V DC/AC 1 phase inverter (1K,2K,3K,4K,5K,10K,20K,30K,50K)/4K DC to AC inverter 1 phase/Power inverter
Product Description
Features:
1.Advanced IGBT inverted technology
2.Multiple CPU intelligent control
3.Multiple protection function of over-voltage ,short circuit, over-temperature on input
4.Special industrial design to ensure the safety in worse environment
5.Reliable, filtering and stable sine wave output
6.Static bypass switch
7.With output isolation transformer
Tech. specs
| 110V DC/AC inverter (1 phase output) | ||||||||||
| Model | ND 110 | ND110 | ND110 | ND110 | ND110 | ND110 | ND110 | ND110 | ND110 | |
| -1010 | -1020 | -1030 | -1040 | -1050 | -1100 | -1200 | -1300 | -1500 | ||
| DC input | Rated DC input voltage (VDC) | 110 | ||||||||
| Rated DC input current (A) | 5 | 10 | 16.3 | 21 | 25 | 49 | 99 | 148 | 247 | |
| DC input voltage range (VDC) | 88~132Vdc | |||||||||
| Bypass | Utility AC input voltage (VAC) | 220Vac±20%, 50Hz±10% | ||||||||
| Utility | Rated AC input voltage (A) | 4.5 | 9 | 13.5 | 18.5 | 22.7 | 45 | 91 | 136 | 227 |
| input | Bypass transfer time (ms) | ≤3S | ||||||||
| AC output | Rated capacity (KVA) | 1 | 2 | 3.0KVA | 4 | 5 | 10 | 20 | 30 | 50 |
| Rated output power (KW) | 0.8 | 1.6 | 2.4 | 3.2 | 4 | 8 | 16 | 24 | 40 | |
| Rated output voltage and frequency | 220VAC, 50HZ | |||||||||
| Rated output current (A) | 4.5 | 9 | 13.5 | 18.5 | 22.7 | 45 | 91 | 136 | 227 | |
| Output voltage regulation (V) | 220Vac±2% | |||||||||
| Output frequency regulation(Hz) | 50±1% | |||||||||
| THD | ≤3% | |||||||||
| Dynamic response (load 0←→100%) | 5% | |||||||||
| Power factor | 0.8 | |||||||||
| Overload | 150%,60s | |||||||||
| Crest factor | 03:01 | |||||||||
| Efficiency at rated load | 90% | |||||||||
| Environment | Insulation strength (between input & output) | 1500VAC, 1min | ||||||||
| Noise (1m) | ≤50dB | |||||||||
| Temperature | -10℃~+50℃ | |||||||||
| Humidity | 0~90%, no condensation | |||||||||
| Altitude (m) | ≤2000 | |||||||||
| Sizes | Rack tye (W* D * H, mm) | 440×450×177 | 440×450×177 | 440×450×177 | 440×500×221.5 | 440×500×221.5 | 330×640×885 | 380×680×935 | 490×985×1205 | |
| Weight (kg) | 18 | 30 | 40 | 50 | 60 | 150 | 260 | 360 | 700 | |
| Protection | DC input reversely protection, DC input under voltage,over voltage, overload, short circuit, over temperature | |||||||||
Certifications

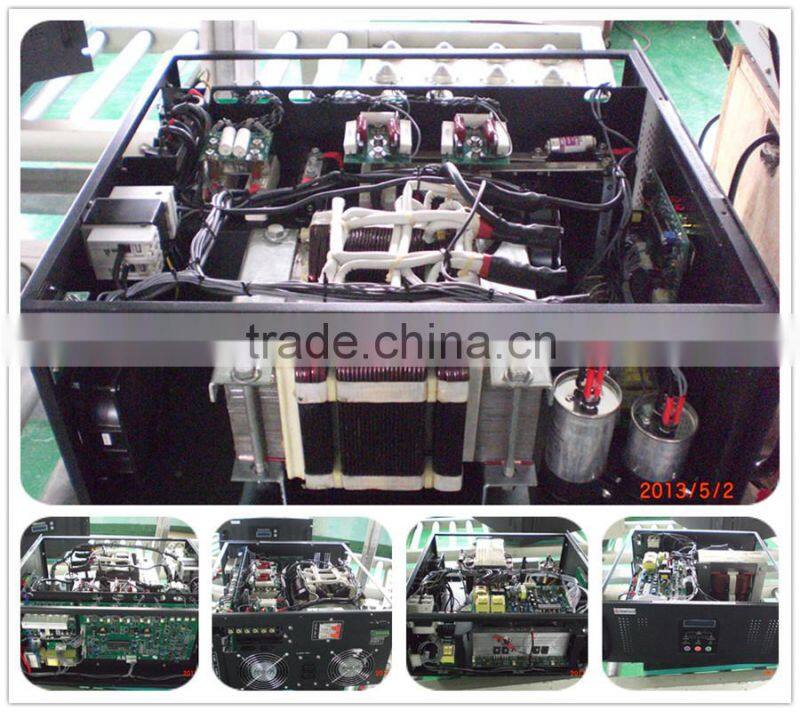

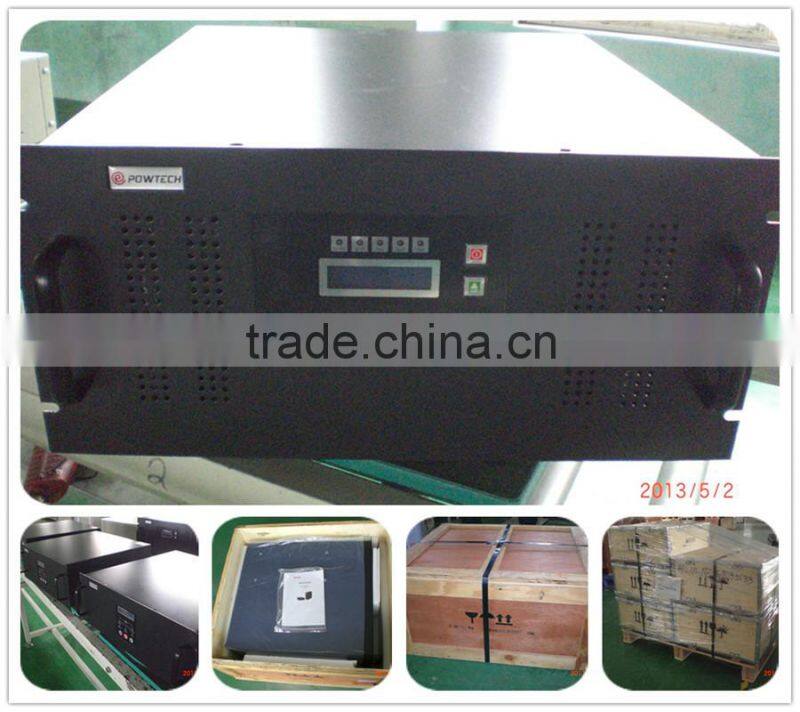

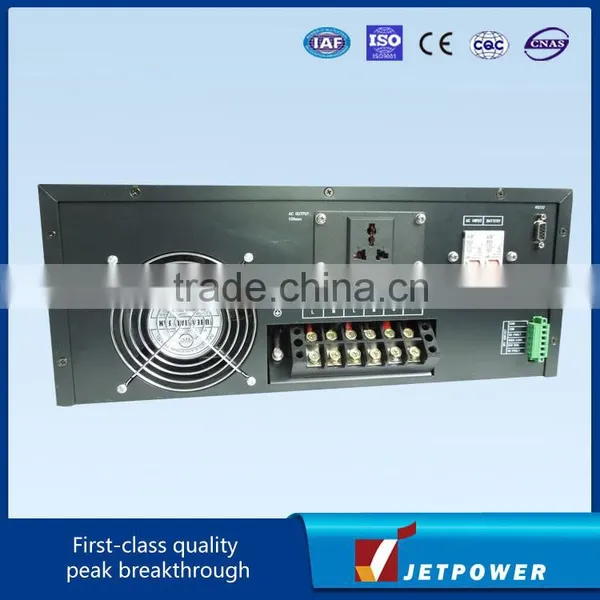

Detailed Images
