Home > Electrical & Electronics > Inverter > Power Inverter > 20K DC to AC Parrallel Inverter Inverter/ 110V DC/AC 1 Phase Inverter (1K,2K,3K,4K,5K,10K,20K,30K,50K)/ 1 Phase/power Inverter

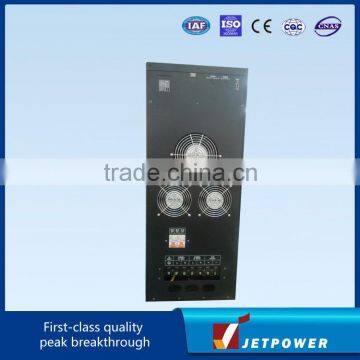

20K DC to AC Parrallel Inverter Inverter/ 110V DC/AC 1 Phase Inverter (1K,2K,3K,4K,5K,10K,20K,30K,50K)/ 1 Phase/power Inverter
US$ 600 - 800
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
JETPOWER
Model Number:
ND110-1200
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5kw 360Vdc to 380Vac Three Phase Solar Inverter (off-gird Inverter)PV InverterUS$ 2,000 - 3,000MOQ: 1 Piece -
Telecom Inverter 48V 1K /Inverter for Telecom Use/Low Frequency UPS InverterUS$ 100 - 300MOQ: 1 Piece
-
2K 1.6KW 115V Inverter/ Intelligent DC/AC Power Inverter (1K,2K,3K,4K,5K,10K,15k,20K,30K)/dc to ac Inverter/115v Power InverterUS$ 200 - 300MOQ: 1 Unit
-
384Vdc Solar Controller With Big Current 300A Controller Standlone TYPEUS$ 100 - 200MOQ: 1 Piece
-
3 Phase Inverter 110V DC/AC 10K( 2k 5k 10k 15k 30k 30k/)dc to ac Inverter 3 Phase/power InverterUS$ 800 - 1,000MOQ: 1 Unit
Place of Origin
Shandong, China
Brand Name
JETPOWER
Model Number
ND110-1200
Output Power
1 - 200KW
Output Type
Single
Size
380*680*935
Weight
260
Input Voltage
110Vdc
Output Voltage
220Vac
Type
DC/AC Inverters
Output Frequency
50/60Hz
Output Current
91A
20K DC to AC parrallel inverter inverter/ 110V DC/AC 1 phase inverter
Product Description
20K DC to AC parrallel inverter inverter/ 110V DC/AC 1 phase inverter
Features:
1.Advance IGBT inverted technology
2.Multiple CPU intelligent control
3.Multiple protection function of over-voltage ,short circuit, over-temperature on input
4.Special industrial design to ensure the safety in worse environment
5.Reliable, filtering and stable sine wave output
6.Static bypass switch
7.With output isolation transformer
Tech. specs
| 110VDC/AC inverter (1phase output) | ||||||||||
| Model | ND 110 | ND110 | ND110 | ND110 | ND110 | ND110 | ND110 | ND110 | ND110 | |
| -1010 | -1020 | -1030 | -1040 | -1050 | -1100 | -1200 | -1300 | -1500 | ||
| DC input | Rated DC input voltage (VDC) | 110 | ||||||||
| Rated DC input current (A) | 5 | 10 | 16.3 | 21 | 25 | 49 | 99 | 148 | 247 | |
| DC input voltage range (VDC) | 88~132Vdc | |||||||||
| Bypass | Utility AC input voltage (VAC) | 220Vac±20%, 50Hz±10% | ||||||||
| Utility | Rated AC input voltage (A) | 4.5 | 9 | 13.5 | 18.5 | 22.7 | 45 | 91 | 136 | 227 |
| input | Bypass transfer time (ms) | ≤3S | ||||||||
| AC output | Rated capacity (KVA) | 1 | 2 | 3.0KVA | 4 | 5 | 10 | 20 | 30 | 50 |
| Rated output power (KW) | 0.8 | 1.6 | 2.4 | 3.2 | 4 | 8 | 16 | 24 | 40 | |
| Rated output voltage and frequency | 220VAC, 50HZ | |||||||||
| Rated output current (A) | 4.5 | 9 | 13.5 | 18.5 | 22.7 | 45 | 91 | 136 | 227 | |
| Output voltage regulation (V) | 220Vac±2% | |||||||||
| Output frequency regulation(Hz) | 50±1% | |||||||||
| THD | ≤3% | |||||||||
| Dynamic response (load 0←→100%) | 5% | |||||||||
| Power factor | 0.8 | |||||||||
| Overload | 150%,60s | |||||||||
| Crest factor | 03:01 | |||||||||
| Efficiency at rated load | 90% | |||||||||
| Environment | Insulation strength (between input & output) | 1500VAC, 1min | ||||||||
| Noise (1m) | ≤50dB | |||||||||
| Temperature | -10℃~+50℃ | |||||||||
| Humidity | 0~90%, no condensation | |||||||||
| Altitude (m) | ≤2000 | |||||||||
| Sizes | Rack tye (W* D * H, mm) | 440×450×177 | 440×450×177 | 440×450×177 | 440×500×221.5 | 440×500×221.5 | 330×640×885 | 380×680×935 | 490×985×1205 | |
| Weight (kg) | 18 | 30 | 40 | 50 | 60 | 150 | 260 | 360 | 700 | |
| Protection | DC input reversely protection, DC input under voltage,over voltage, overload, short circuit, over temperature | |||||||||
Certifications
Detailed Images
Shipping
Why choose us
1. Major manufacturer,Competitive price, good quality and on-time delivery
2. ISO9001:2008 certification
3. Many years' production experience
Our Services
1. Abroad site installation & training available any time
2. Best price compared to same configuration
3. Customized product available
4. Good after-sale response
5. Small order accepted
6. Excellent workmanship
