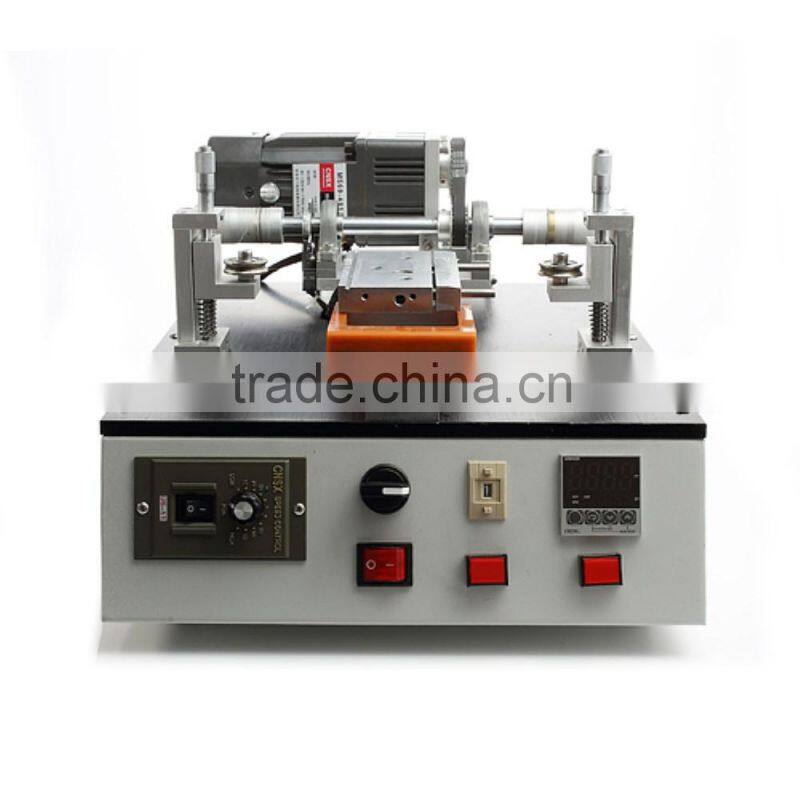

Semi-automatic Separator Separating Platform Machine to Replace LCD Touch Panel Digitizer Glass,Free 6000m Steel Wire

US$ 850 - 1,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

eab

Model Number:

PTVC601E

Shenzhen Easybyz Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name eab

Model Number PTVC601E

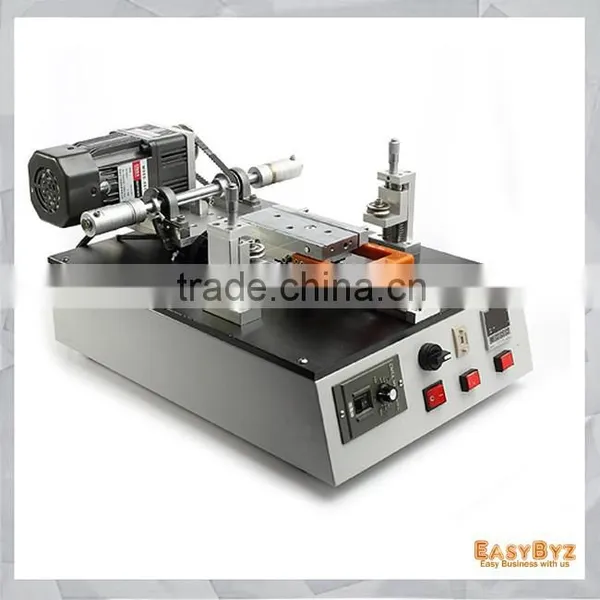

Semi-automatic Separator Separating Platform Machine to Replace LCD Touch Panel Digitizer Glass, Free 6000m Steel Wire

Product Description

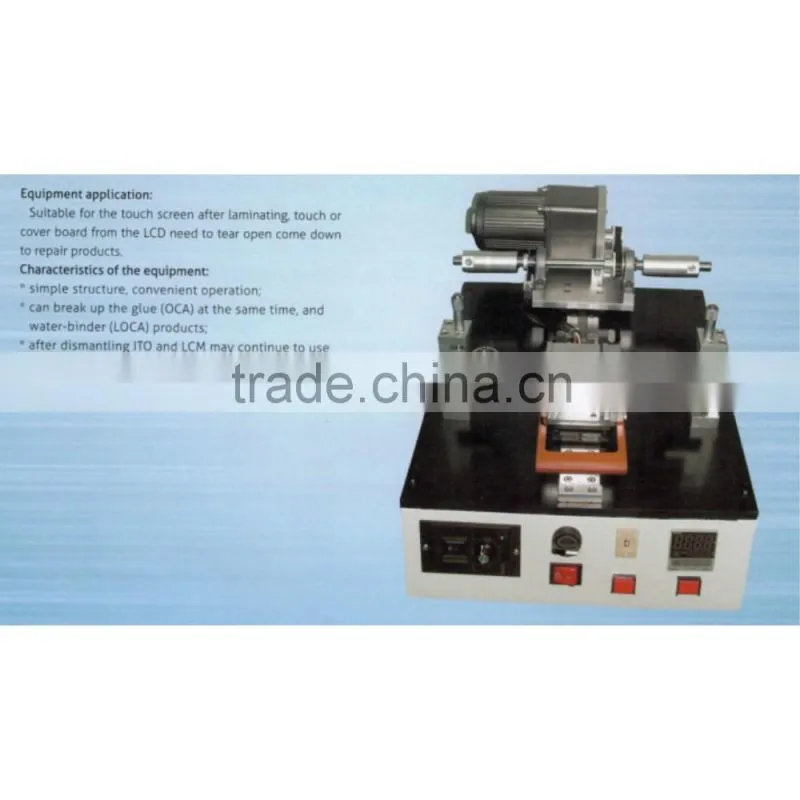

Applicaton: Suitable for the touch screen after laminating touch ot cover board from the LCD need to tear open come down to repair productors
Free gift: 6000m gold plated steel wire, some small tools, make the operation convenient and easily
Can break up the glue(OCA) at the same time, and water-binder (LOCA) products
After dismantling ITO and LCM may continue to use after cleaning
No noise, economical and practical, greatly reduce the production cost
With motor drive, speed and temperature are adjustable, quite convenient
Fast, high efficiency, and easy operation
Product size range: 3.5-5.5 inch (according to different replaceable clamp product)
Electrical control system: The machine operation is manual, involves heating process, Uses the PLC as the central processor, execute component adopts imported electrical components as the main control components such as: temperature control table, thermocouple, according to the technological requirements.
Note 1. As different country has different current or voltage standard, we have Voltage 220V and 110V for your choice, please choose the right one which meets your country's voltage standard; if you have any questions, please feel free to contact us
Note 2. Please see the technical parameters on the 9th picture of this productor

Operating Instruction:

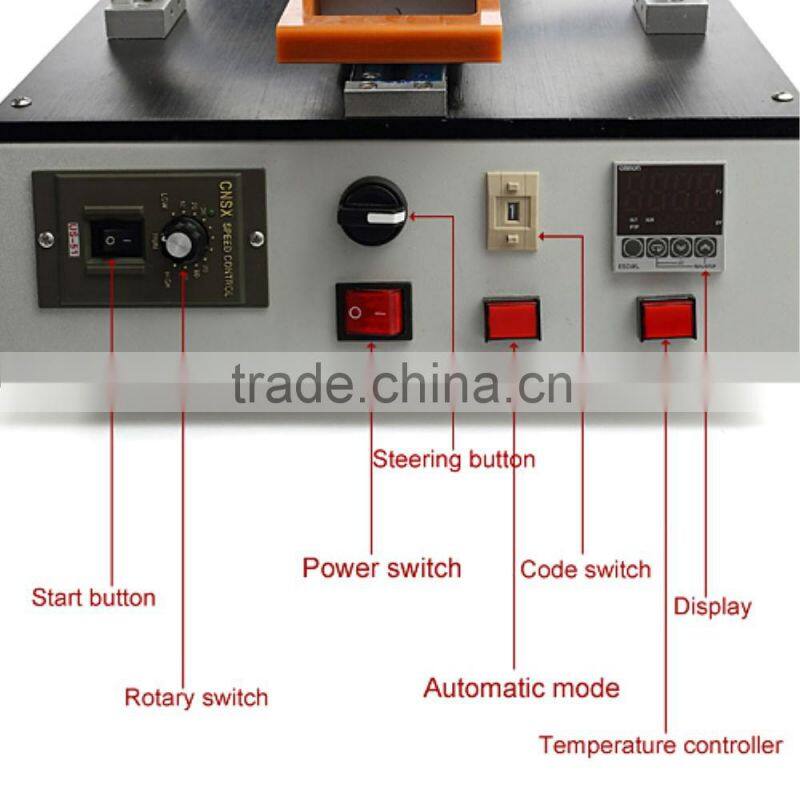

1: Turn the power switch on.
2: Turn the temperature controller on, and set the temperature between 60 and 80 degree.
3. Wind wire on the rollers.
1)Fix the wire on the roller of the left side motor. Wind the wire from top to bottom, then adjust the steering button to up position. Go on winding wire bypass the front two rollers. Then turn on the rotary switch. Wind the wire about 3-5m, turn off the rotary switch.
2)Pull the wire tight, and wind the wire from bottom to top, then fix the other end on the roller of the right side motor. Adjust the steering button down. After the wire rotary half on the wheel, turn off the rotary switch. Finally, adjust the steering button to horizontal position.

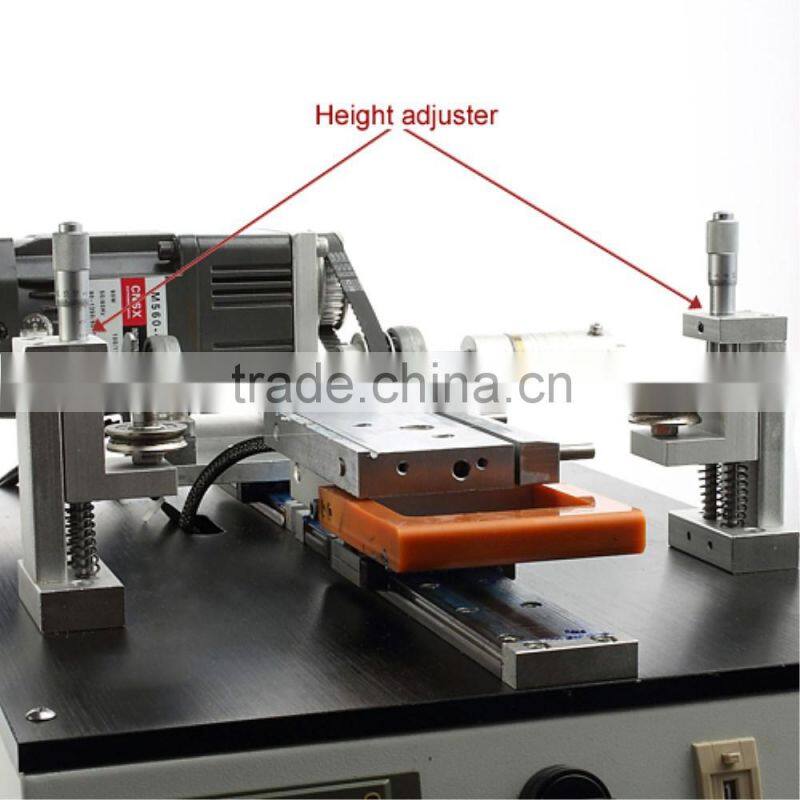

3)Adjust the motor from the top of the skidway about 2 cm.

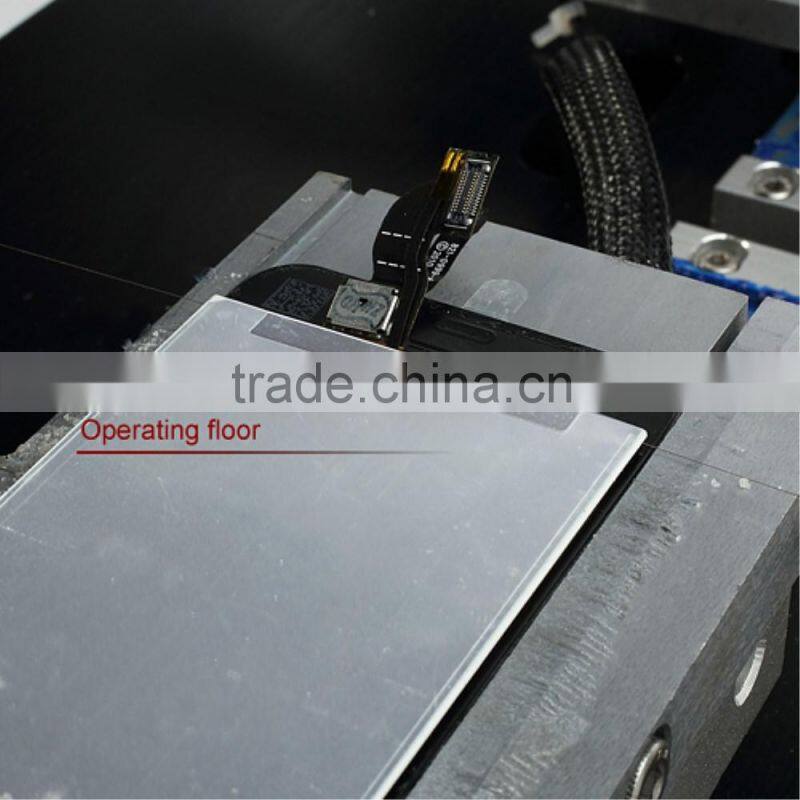

4. Put the LCD on the operating floor.
5. Adjustment the wire and heating stage on the horizon, then turn the automatic mode on. Adjust the proper speed, keep the wire and screen certain radian. Slowly push heating stage by hand.
6. When reach the end of the LCD assembly, quickly push the heating stage back and forth 2 times. After finishing the separation, just separated the lcd and touch panel by hand.
7. Adjust the rotary switch to the low position, and trun off other buttons, finally trun off the power switch.
Note: Adjust the steering button up, the machine will run clockwise; Adjust the steering button down, the machine will run anticlockwise; horizontal position will not run.

Compatible with:

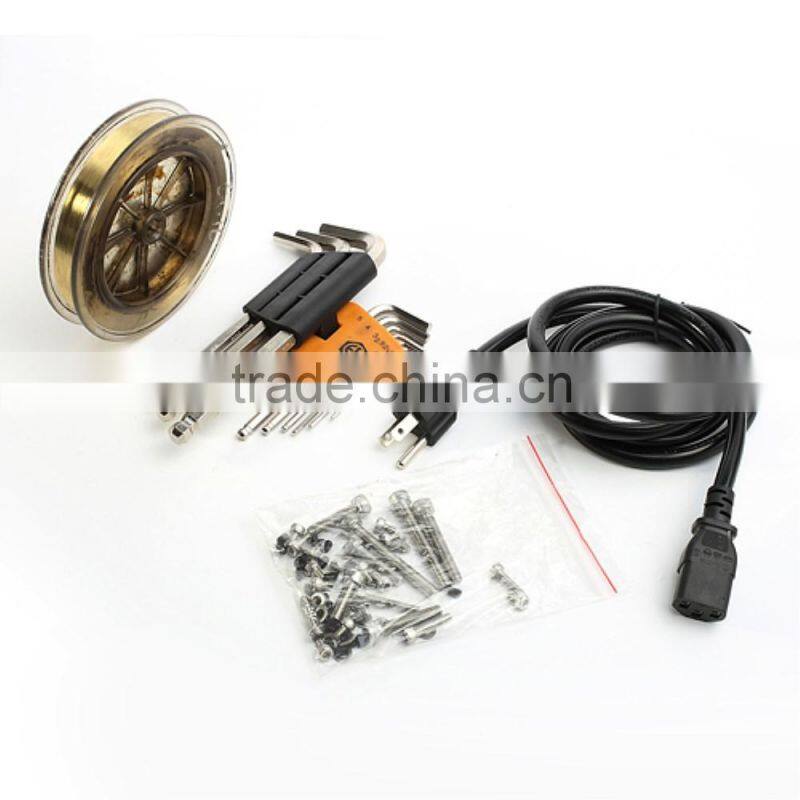

Package included:

1 x Semi-automatic Separator Separating Platform Machine to Replace LCD Touch Panel Digitizer Glass, Free 6000m Steel Wire
1 x Free gift: 6000m Gold Plated Steel Wire
1 x Power Charging Cable
1 Set of Tool
