ADSS aerial electric Power 24core Optical Fiber Cable Specifications
Specifications:
adss kevlar reinforced fiber cable
1.Non-metallic reinforcing element.
2.PE or AT jacket
3.Span:100-1000m

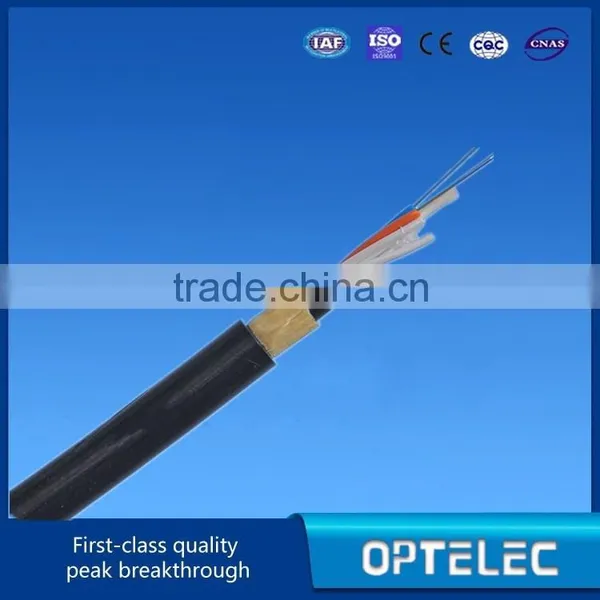

ADSS kevlar reinforced fiber cable
Introduction
ADSS cable is made of non-metallic material and self-supporting with the aerial power transmission line. The tension resistance material is aramid yarn with high elasticity modules. Because of this material, ADSS can withstand the large tension of installation (Max. span: 1500m), ice( Max.ice thickness: ≥20mm ) and weed pressure(Max. wind speed: 35m/s).
Features

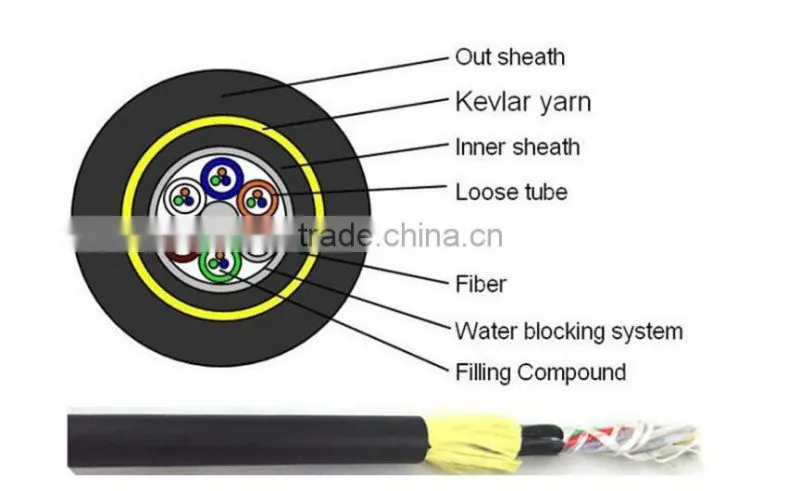

Layer stranding unit of loose tube structure
Non-metallic central reinforcing element (FRP)
Kevlar with high modular as reinforcing element
PE or AT jacket
Lightness, small outer diameter, no torsion, high tensile resistance and suitable for large span length
High modular of elasticity, suitable for large stress-strain
Small thermal expansion coefficient
Excellent electric erosion resistance
Good vibration resistance
Free from lightning, and electric-magnetic interrupt
Applications
| Fiber count | Depends on cable type | ||
| Suitable span length | Depends on cable type | ||
| voltage level | applied for 220kv and under 220kv power line | ||
| Allowable bending radius | static:15 times of cable diameter | ||
| Dynamic:25 times of cable dameter | |||
| Operating temperature(°C) | -40~+70 | ||
| NO | Cable Type( fiber count≤24) | Span length(m) for reference | |
| 1 | ADSS-PE(AT)-mB1(nB4)-3KN | 100 | |
| 2 | ADSS-PE(AT)-mB1(nB4)-5KN | 200 | |
| 3 | ADSS-PE(AT)-mB1(nB4)-7KN | 300 | |
| 4 | ADSS-PE(AT)-mB1(nB4)-9KN | 400 | |
| 5 | ADSS-PE(AT)-mB1(nB4)-11KN | 500 | |
| 6 | ADSS-PE(AT)-mB1(nB4)-12KN | 600 | |
| 7 | ADSS-PE(AT)-mB1(nB4)-14KN | 700 | |
| 8 | ADSS-PE(AT)-mB1(nB4)-16KN | 800 | |
| 9 | ADSS-PE(AT)-mB1(nB4)-18KN | 900 | |
| 10 | ADSS-PE(AT)-mB1(nB4)-20KN | 1000 | |

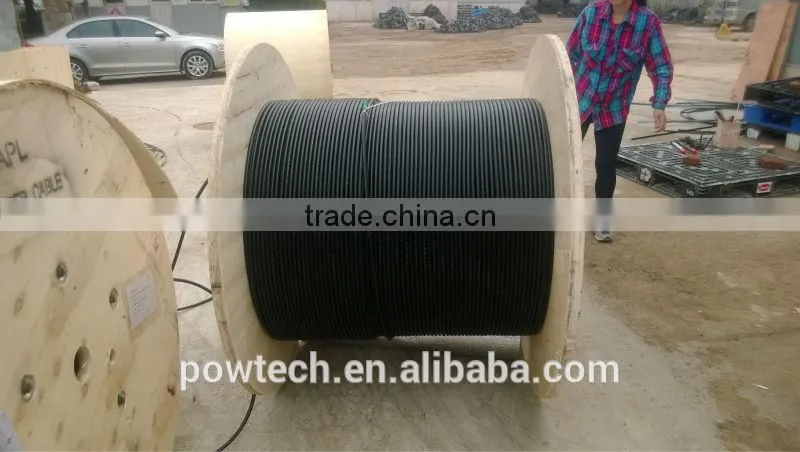

1. Standard Packaging:

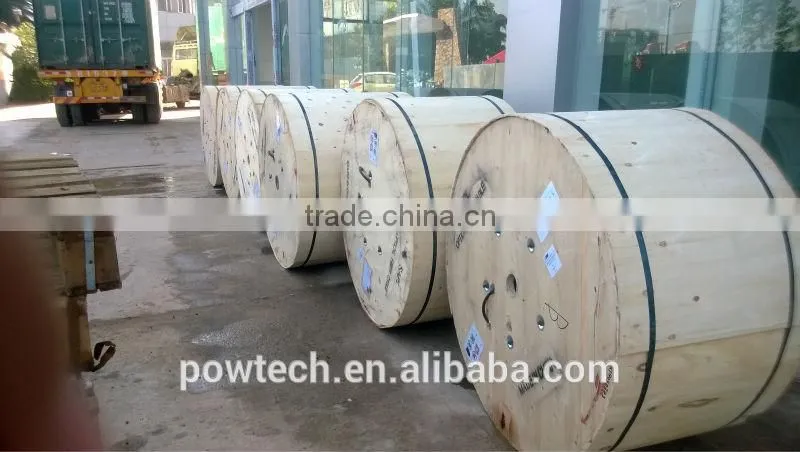

Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.

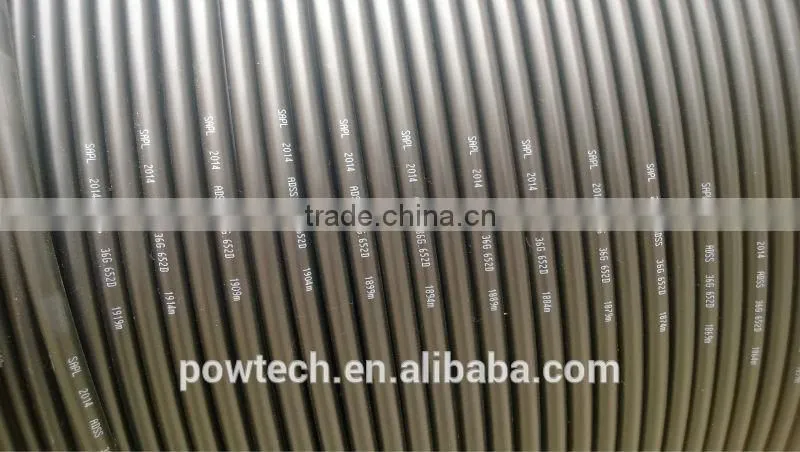

2. Sheath mark
The following printing(white hot foil indentatioin)is applied at 1-meter intervals.
a. Supplier: Guanglian or as cuctomer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length marking in meters
1. Shipping: Generallyby sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C and Western Union, just choose what you like
3. Delivery time: Generally 3~7 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 1meter can be provided freely
Quote Request Information
1. Fiber Count: 2 to 144 Fibers
2. Span length: 50meter to 800meters is available
3. Fiber type: Various kind of Single mode or multi mode is available
4. Line Voltage: 10kV, 35kV, 110kV or 220kV
5. Order Quantity
1. Major manufacturer,Competitive price
2. ISO9001:2008 certification
3. 20 years' production experience
4. Turn-key solution for your transmission line
