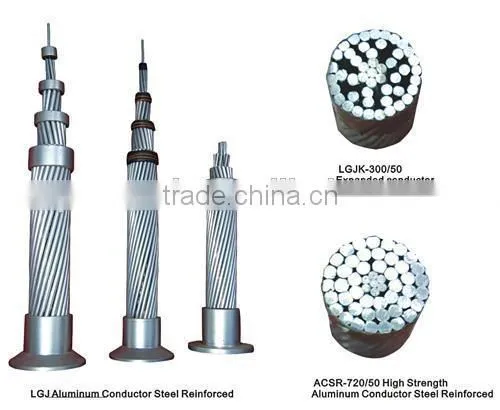

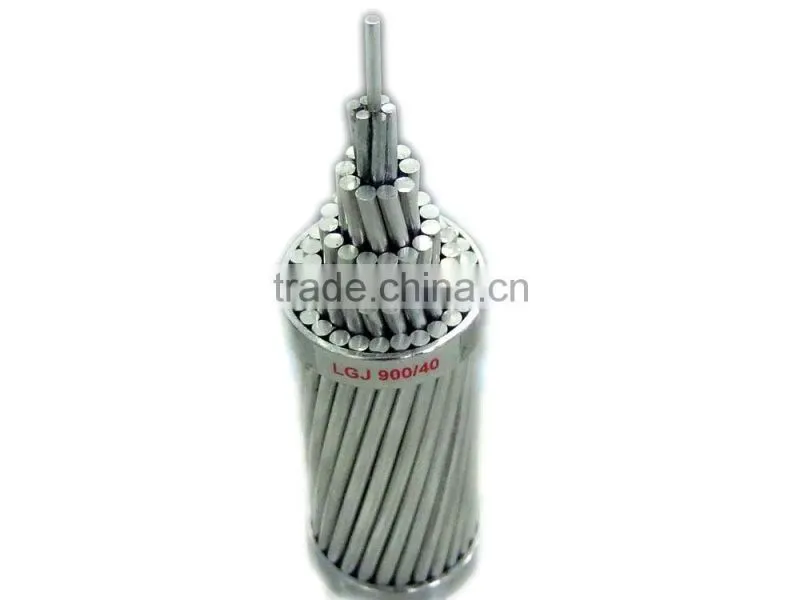

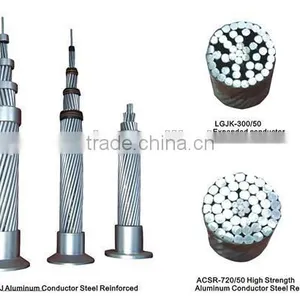

ACSR Flicker/ Acluminium conductor steel reinforced/ ACSR ASTM

  ACSR Flicker/ Acluminium conductor steel reinforced/ ACSR ASTM

staranding&wire diameter:

•     aluminum:  no. 24 , 3.58mm
•     stell: no. 7,  2.39mm

approximate overall diameter: 16.28mm

total sectional area: 241.68mm2

approximate weight: 915kg/km

breaking load: 76.66kn

DC resistance at 20 ℃: 0.1199ohm/km

comply all the standards:

• ASTM B230, Aluminum 1350-H19 wire for electrical purposes
• ASTM B231, Concentric-Lay stranded aluminum 1350 conductor

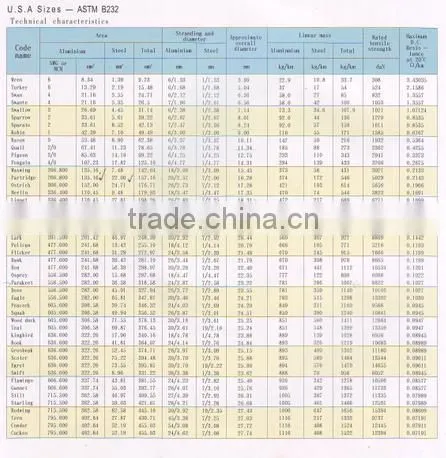

• ASTM B232, Concentric-Lay stranded aluminum conductors, coated-steel reinforced (ACSR)
• ASTM B233 - Specification for aluminum 1350 drawing stock for electrical purposes
• ASTM B6 - Standard specification for zinc
• ASTM B498, Galvanized steel core wire for aluminum conductors, steel reinforces (ACSR)
• ASTM B500, Galvanized and aluminum-coated (aluminized) stranded conductors, steel reinforces (ACSR)
• ASTM – A90           Standard Test Method for Weight [Mass] of Coating on Iron and Steel Articles with Zinc or Zinc-Alloy Coatings
• ASTM – A363 Zinc coated (galvanized) steel overhead ground wire strand.
• ASTM – A475 Standard Specification for Zinc-Coated Steel Wire Strand
