ACSR DOVE/aluminum Conductor Steel Reinforced ACSR/ASTM Standard
US$ 2,000 - 2,500
/ Kilometer
1 Kilometer(Min. Order)
- Qingdao
- T/T L/C D/P D/A Credit Card
You May Like
-
ACSR Parakeet/aluminum Wire Steel Core/ASTM Standard
-
OPGW Optical Ground Wire Cable With Layer Stranding Stainless Steel Tube Type
-
OPGW Optical Ground Wire Cable With Double Tube Design
-
Competitive Price of Long Service Life Aerial OPGW Outdoor Optic Fiber Cable With Double Tube Design
-
24 Cores Optical Fiber Composite Overhead Ground Wire / OPGW Cable
-
Opgw Optical Ground Wire Cable
Product Details
| Place of Origin | Shandong, China | Brand Name | OPTELEC | |
| Model Number | ACSR |
Product Description

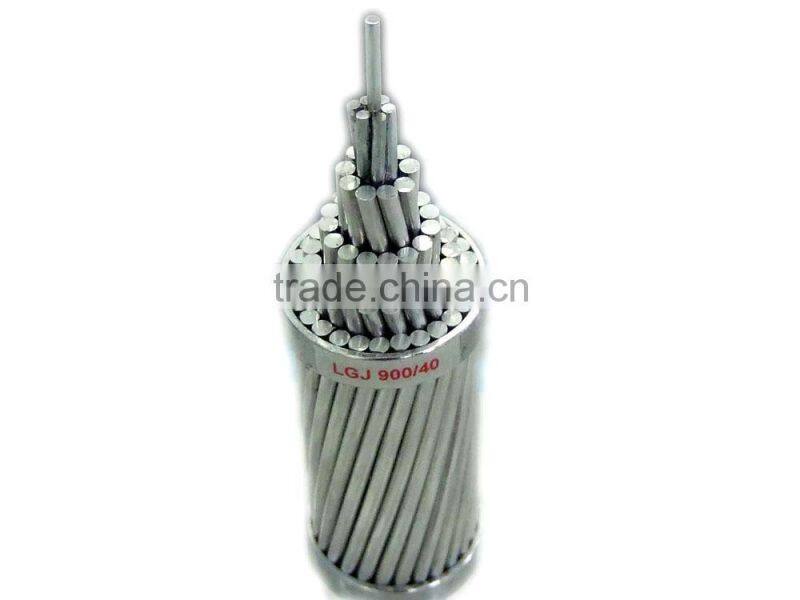

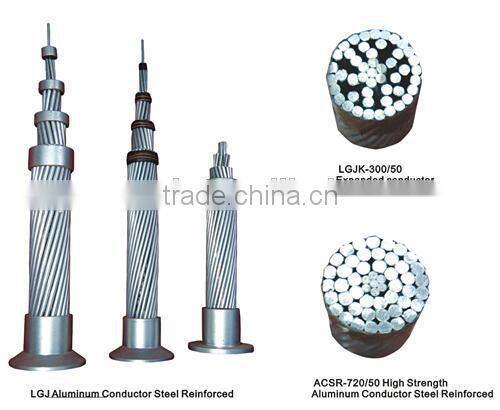

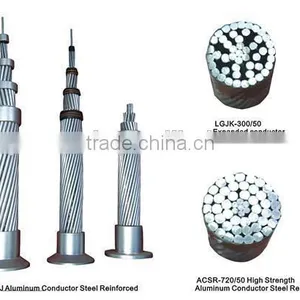

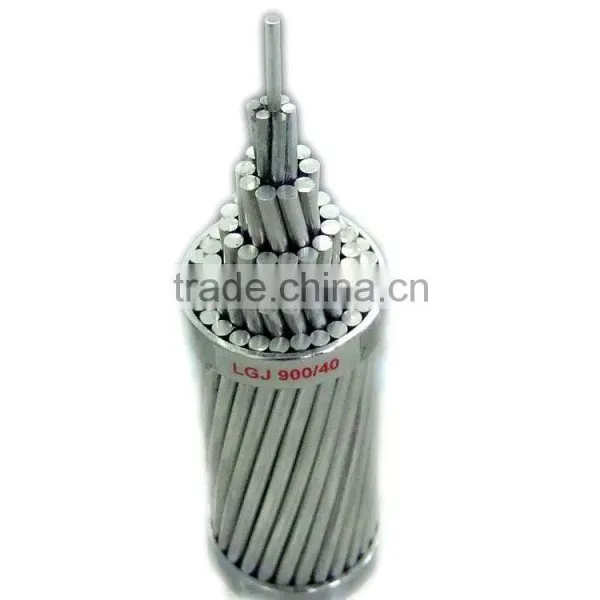

ACSR DOVE/aluminum conductor steel reinforced ACSR/ASTM standard
staranding&wire diameter:
- aluminum: no. 26 , 3.72mm
- stell: no. 7, 2.89mm
approximate overall diameter: 23.55mm
total sectional area: 282mm2
approximate weight: 1140kg/km
breaking load: 101.03kn
DC resistance at 20 ℃: 0.1027Ω/km
comply all the standards:
- ASTM B230, Aluminum 1350-H19 wire for electrical purposes
- ASTM B231, Concentric-Lay stranded aluminum 1350 conductor

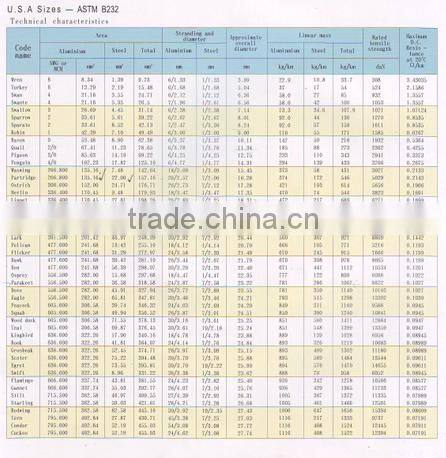

- ASTM B232, Concentric-Lay stranded aluminum conductors, coated-steel reinforced (ACSR)
- ASTM B233 - Specification for aluminum 1350 drawing stock for electrical purposes
- ASTM B6 - Standard specification for zinc
- ASTM B498, Galvanized steel core wire for aluminum conductors, steel reinforces (ACSR)
- ASTM B500, Galvanized and aluminum-coated (aluminized) stranded conductors, steel reinforces (ACSR)
- ASTM – A90 Standard Test Method for Weight [Mass] of Coating on Iron and Steel Articles with Zinc or Zinc-Alloy Coatings
- ASTM – A363 Zinc coated (galvanized) steel overhead ground wire strand.
- ASTM – A475 Standard Specification for Zinc-Coated Steel Wire Strand
Detailed Images

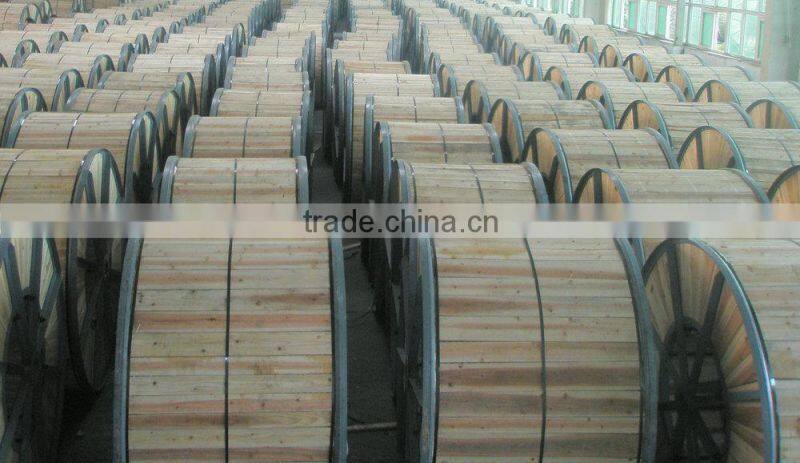

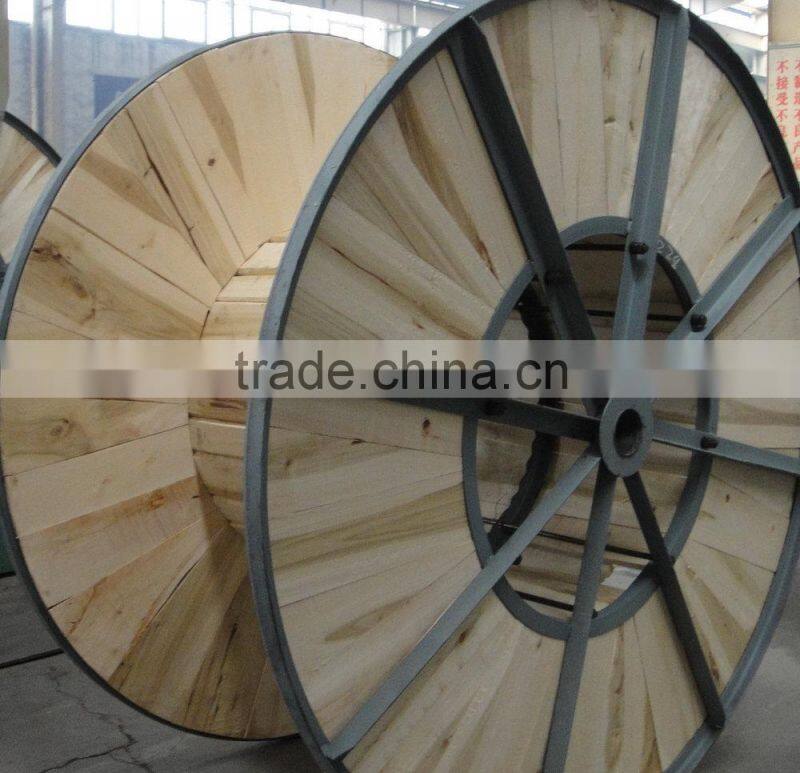

Packaging & Shipping
Certifications
