Help CenterBig Size MI-1325 Wood Acrylic Cutting Laser Cutting Machine Used for Wood
Related Products
-
Big Size 1300*2500mm Laser Cutting Machine for Mdf With CW5000 Water ChillerUS$ 4,000 - 8,000MOQ: 1 Set -
MI-1325 Laser Cutting Machine for Sale With CW5000 Water ChillerUS$ 4,000 - 8,000MOQ: 1 Set
-
Big Size MI-1325 Acrylic Wood Cnc Laser Cutting MachineUS$ 4,000 - 8,000MOQ: 1 Set
-
Hot Sale Hobby China Manufacturer Factory Direct Price 1325 Laser Cutting Machine With High PresicionUS$ 4,800 - 5,200MOQ: 1 Set
-
China Manufacturer 6090 CO2 Laser Machine for Cutting and EngravingUS$ 2,200 - 2,900MOQ: 1 Set
Specifications
1. woring area:1300*2500mm2. 100w laser tube
3. High precision and speed
4. watercooling chiller CW5000

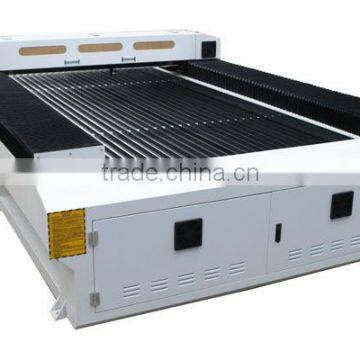

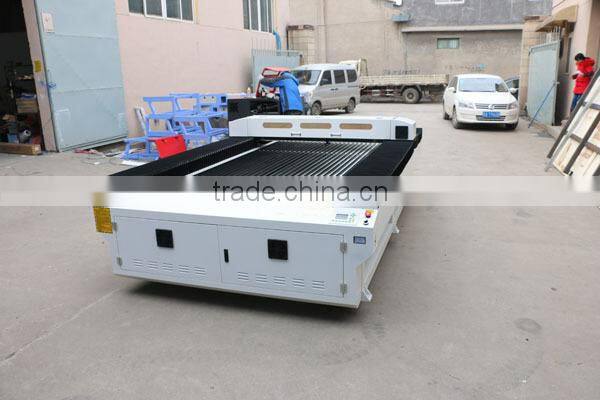

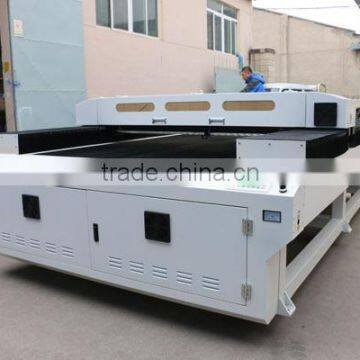

Big size MI-1325 wood acrylic cutting laser cutting machine used for wood
laser cutting machine used Product features:
1.MITECH series of laser engraving cutting machines adopt new type,hi-speed laser tube,which make beam more stable than common laser tube,the service life of the laser tube can reach 1000 hours.
2.Compared with common laser engravers,MITECH series of laser engravers adopt more specific
design of machine body,higher strength steel frame structure,which make strength forty
percent more higher,never deformable.
3.Humanized and most modernized design of appearance reflects caring idea it is simple to
operate and maintenance.
4.Advanced DSP control system and special motion control ship make the machines cut curve continuously
and rapidly,the selection function of the shortest path makes efficiency higher.
5.All machined are configurated with U-disk offline control system,
so it is more simple and easier to operate.
6.The red-light positioning device can indicate process site of laser head to avoid trouble of
manual position.

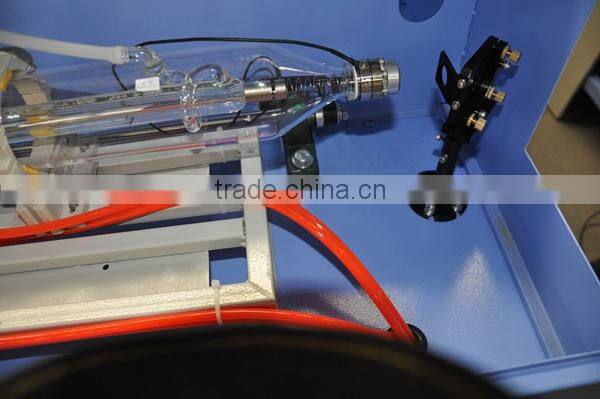

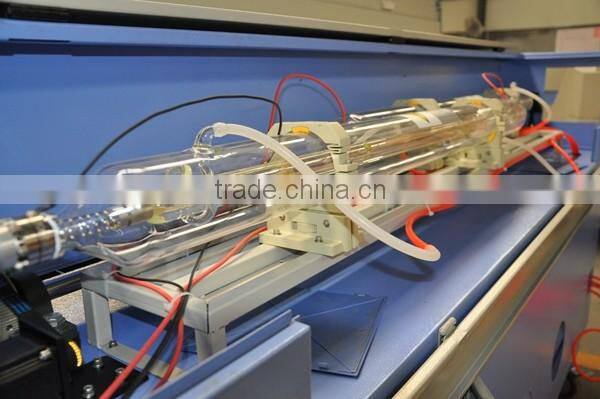

----------------------------------------------------------------------------------------------------------------------------------The laser cutting machine adopt high efficiency laser tube and more stable beam,the power 100w ,130w, 150w can be optional,High quality laser tube provides the strong beam and long service life.
--------------------------------------------------------------------------------------------------------------------------------
Laser engravers adopt more specific design of machine body, higher strength steel frame
structure,which make strength forty percent more higher,never deformable.
-------------------------------------------------------------------------------------------------------------------
Advanced DSP control system, professional motion control chip,consecutive high speed curve cutting and the shortest path selection function improve the efficiency.The function of restoring from power off,continuation on break point.
----------------------------------------------------------------------------------------------------------------------------------

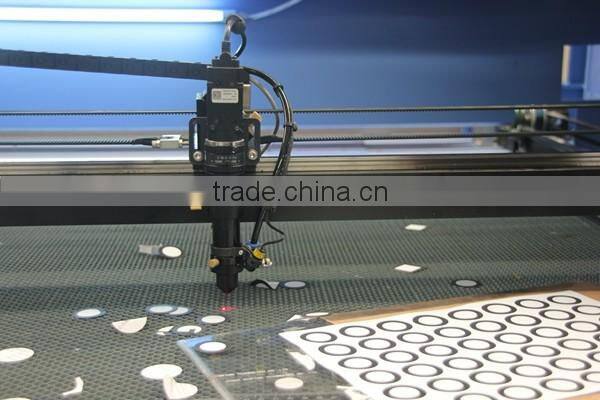

Laser head and red dot,Red light positioning device indicates the location of laser head,eliminate the trouble about manual positioning.
----------------------------------------------------------------------------------------------------------------------------------
Humanized and most modernized design of appearance reflects caring idea it is simple to
operate and maintenance.
-------------------------------------------------------------------------------------------------------------------

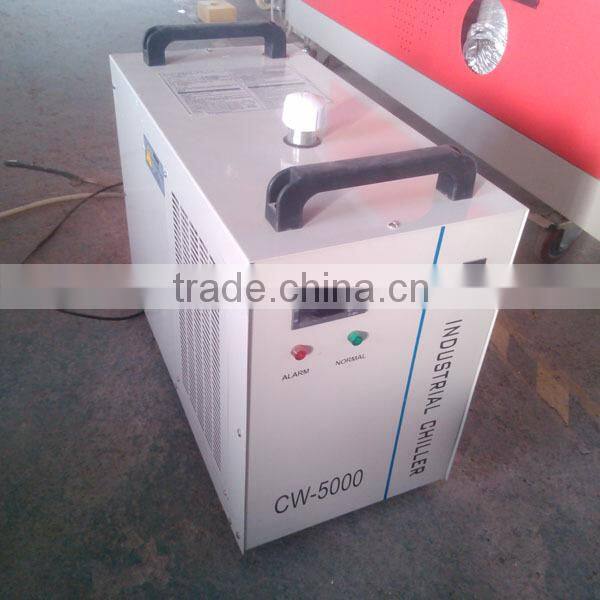

Water chiller CW5000 for cooling,protect the machine have a good work
-------------------------------------------------------------------------------------
laser cutting machine used Technical parameters:
Cutting area |
1300*2500mm |
| Laser tube power | 100W |
| Laser type | RECI CO2 sealed laser tube, water-cooled |
| Cutting speed | 0-4000mm/min |
| Laser output | 1-100%software setting |
| Resetting positioning accuracy | <±0.01mm |
| Power supply | AC110-220V±10%, 50-60Hz |
| Operating temperature | 0-45℃ |
| Operating humidity | 5-95% |
| Min. Shaping character | English 1.0mm*1.0mm |
| Graphic fonmat supported | BMP, PLT, DST, DXF |
| Software supported | Tajima, CorelDraw, Photoshot, AutoCAD |
| Driving system | Stepper motor |
| Cooling mode | Water pump |
| Recommended spare Parts | Laser Tube(100W RECI tube) |
-----------------------------------------------------------------------------------------------
laser cutting machine used application:
1.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould,seal,etc
2.Woodworking: MDF,wooden mould, wood planks,bamboo, density board
3.Decoration: acrylic, organic glass, double color board, coconut shell, ox horn, ABS board,lamp shade,crafts,crystal,glass,ceramic,stone,metal coating,etc.
4.Clothing: leather,cloth,texitle,shoes,fabric,etc
laser cutting machine used simples show:
Package:Humidity-Proof Cloth Above Wooden Case, Multi-Layer Film Covered Machine Body, Oil Covered with Film on Machine Transmission, Steel Tubes On&Under Wooden Case.
Shipping: Safetly and saving by sea distribute our machine to our partners and customers
We can send this machine to your port or door address by sea or by air. Do as you need.
If sending to your port, please tell us your port.
If sending to your door address, please tell us your address, and better with post code.
1. One year quality guaranty, the machine with main parts(excluding the consumables).shall be changed free of charge when if any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
After-sale Service:
a) Technical support online service provided
b) Technical files service provided.
c) On-site training service provided.
d) Spare parts replacement and repair service provided.
MITECH is a professional CNC machinery manufacturer.We are well known for our superior quality and service in the field of engineering and manufacturing of CNC and Laser Equipment that includes: CNC Router, CNC Woodworking machine, CNC Advertising Router Machine, Stone CNC Router, Metal CNC Router,Cutting Plotter, Sign Plotter, CO2 Laser Engraver, CO2 Laser Cutting Machine, PVC Concave-convex Sign card Machine and so on.
Q1. Trade company or manufacturer?
We are manufacturer, we have our own foctory, we welcome every clients to visiting our warehouse.
Q2. Is this machine esay to control for new hand?
It is very easy to control, it is all english and we also supply operating video to you. If you still have problem to this machine, you can call me or ask help via teamviewer.
Q3. What i need to do when machine suffer trouble?
Check all wires, make sure it is good connection, second check your lens and mirrors, it is must be clear, third check your laser tube.
Q4. How to maintain this machine?
A, After 2 3 hour working, need close 10 minutes. B, Keep lens and mirrors be clean. C, The water for laser tube should keep clean and lower temperature, in winter you can input coolant.
Q5. What about MOQ?
At least one set machine, if you need more sets, we could supply good discount..
Q6. Is there any other model for choose?
Yes, we have other models for clients as their request, the model named as machine working size, so you can choose one machine according to your materials largest working area.
