Good Quality Cargo Elevator Made by Stainless Steel Plates

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port FOB Guangzhou or Shenzhen
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Fast
Model Number	TLJ1000/0.5-JX	Usage	Car Elevators
Drive Type	Other, VVVF	Elevator Type	Goods Elevators

Product Description

Products:

The company can design different products according to the different requirements of the customers. The products include passenger elevator, villa elevator, panoramic elevator, hospital elevator, freight elevator, automobile elevator, small machine room elevator, machine room less elevator, escalator and automatic sidewalks.

Many opttional luxurious decoration car cab available.This serial products adopts pernament magnet synchronous motor-driven system,match high performance frequency conversion gate machine system & serial communication system.Extremely low failure rate.Take safe and comfortable.Drive steady and reliable.Precise internal contro flow.Ensure full compliance with the ISO9001 quality standards.

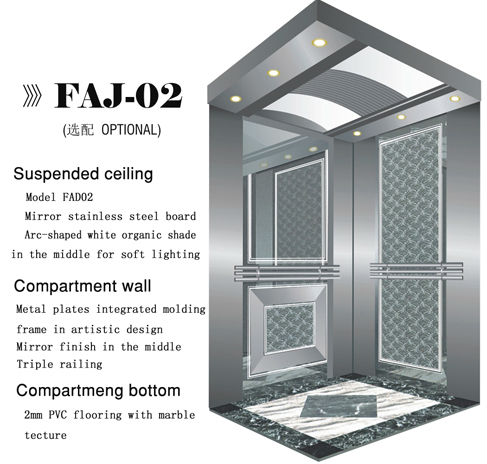

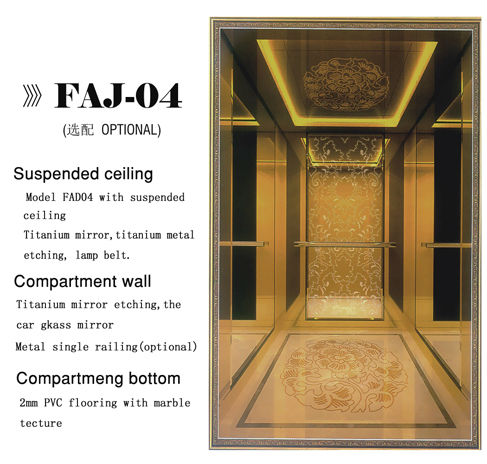

1 elevator car decoration

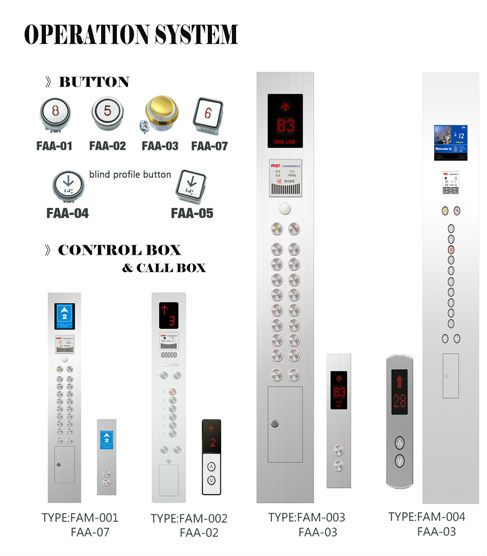

2 operaion system

Specifications:

This serial products adopts pernament magnet synchronous motor-driven system,match high performance frequency conversion gate machine system & serial communication system.Extremely low failure rate.Take safe and comfortable.Drive steady and reliable.Precise internal contro flow.Ensure full compliance with the ISO9001 quality standards.

Fix number	Load (kg)	Speed (m/s)	Car Size(mm) (Width*Depth)	Door Opening (mm)	Hoistway Size (Width*Depth)
6	450	1.0~1.75	1300*950	700*2100	1800*1650
8	630	1.0~1.75	1400*1100	800*2100	2000*1750
10	800	1.0~3.0	1400*1350	800*2100	2000*2000
12	900	1.0~3.0	1400*1500	900*2100	2000*2200
13	1000	1.0~3.0	1600*1400	900*2100	2200*2100
15	1150	1.0~3.0	1600*1600	900*2100	2200*2300
16	1250	1.0~3.0	1750*1600	1000*2100	2350*2300
18	1350	1.0~3.0	1800*1650	1000*2100	2400*2400
21	1600	1.0~3.0	1950*1750	1100*2100	2900*2300

Load (kg)	Speed (m/s)	Over Head (mm)	Pit Deepth (mm)
450~1600	1.0	4500	1500
	1.5/1.6	4600	1600
	1.75	4700	1700
	2.0	4800	1800
	2.5	5000	2200
	3.0	5400	2500

Price:

1.price:

Please send us inquiry from Alibaba, we will send you a quotation to be filled out with your detail requests,and a solution will be sent within 24hours.

2.payment terms:

30%/70%

Packaging & Shipping

3.package

Plywood cases and bundles

4.FOB port

Shekou Ferry Terminal in Shenzhen city or Ningbo Ferry Terminal in Ningbo city

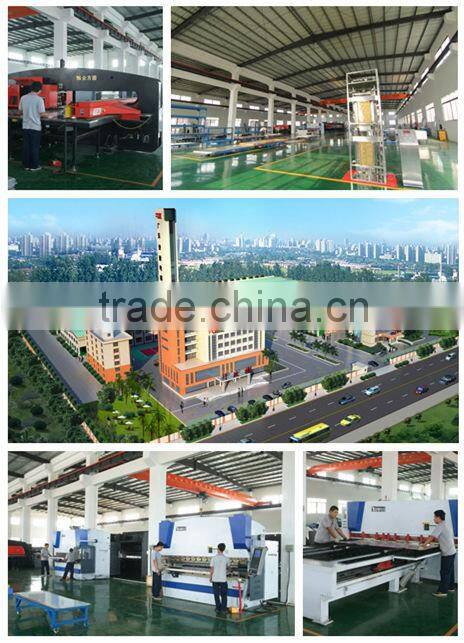

Company Overview:

Guangdong Fast Elevator Co.,LTD is located in the foot of Luofu Mountain which has beautiful scenery in Huizhou city,Guangdong province. As a joint venture enterprise, the company focused on designing, manufacturing, sailing and installing of elevator and escalator for many years.

The company is apart from Guangzhou 89 kilometers and about one hour driving from Shenzhen, covers an area of 120000 square meters. The company has got Class A certification which is the highest certificationin China and the production capacity in one year can be reached more thean 10000 sets.
