Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Chinese Brand 30kw Weichai Diesel Engine

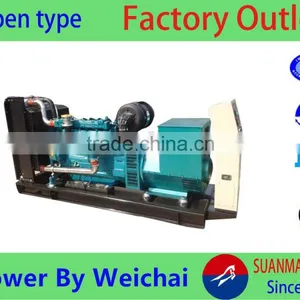

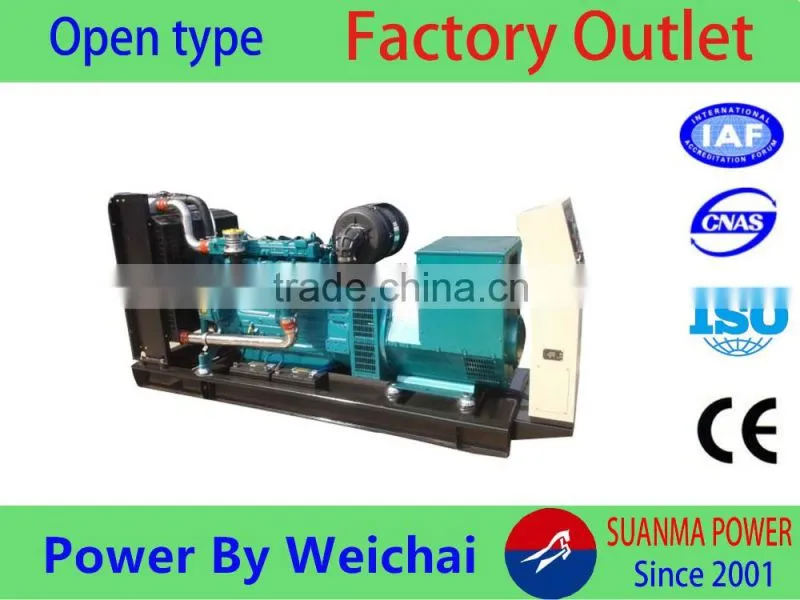

Chinese Brand 30kw Weichai Diesel Engine

Name: Chinese Brand 30kw Weichai Diesel Engine
Brand: SUANMA
SKU: 129425463

US$ 3,476 - 3,476 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

SUANMA

Model Number:

SMWC

Contact Supplier Request Quote Chat Now

Jiangsu Province Suanma Power Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Qingdao/Ningbo/Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name SUANMA

Model Number SMWC

Output Type AC Three Phase

Speed 1500/1800rpm

Frequency 50/60HZ

Rated Power 30KW/37KVA

Rated Voltage 380/220V

Rated Current 54A

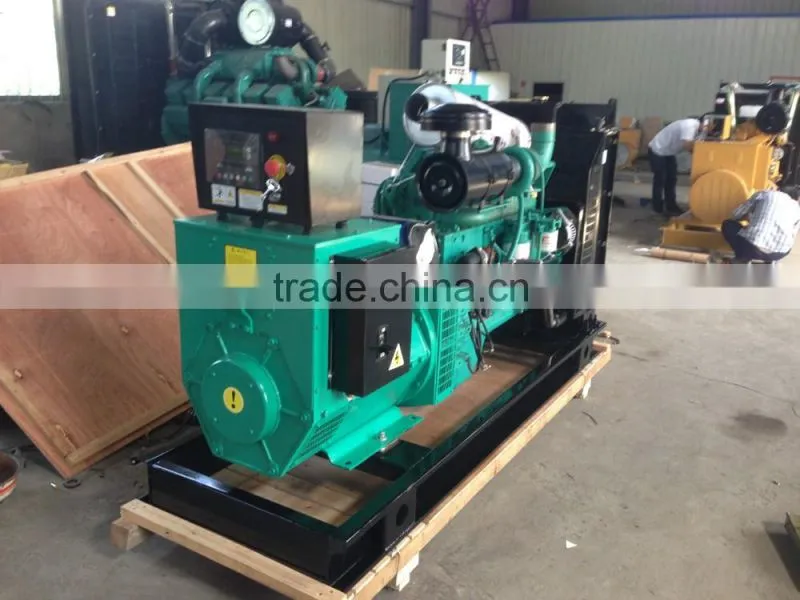

Chinese brand 30kw weichai diesel engine
Genset Model		SMWC-30GF
Prime Power		30KW/37KVA
Rated Voltage		380/220V
Frequency		50/60Hz
Power Factor		0.8(lagging)
The regulating rate of steady voltage		≤±0.5%
The regulating rate of instantaneous voltage		≤-15%/ +20%
The time of steady voltage		≤1.5sec
The waving rate of voltage		≤1.0%
The regulating rate of steady frequency		≤3%
The regulating rate of instantaneous frequency		≤±10%
Dimension (L×W×H) (mm)		16507001230
Genset weight (kg)		600
Diesel Engine		Alternator
Brand	Weichai	Brand	Suanma Power
Model	WP3.9D33E2	Model	SMI-30
Number of Cylinders	3	Connecting Type	Three Phase and Four Lines
Rotating Speed	1500/1800RPM	Number of Bearing	2
Bore×Stroke(mm)	108/115	Grading Protection	IP23
Displacement(L)	3.12	Altitude	≤1000m
Capacity of engine oil(L)	10	Exciter Type	Brushless (AVR automatic voltage regulating)
Speed Governor	Electrical	Insulation Class	H degree
Cooling System	Water-cooled
Speed Stability (%)	≤5%
Starting Method	DC24V Electrical starting

Main Features

1) Weichai diesel generator
2) Weichai OEM
3) CE & ISO9001:2008
4) 12 months warranty
5) Reliable quality & competitive price

Advantage:

1)Enameled pure copper wires

2)Silicon steel stator

3)Stator coiling

4)AVR

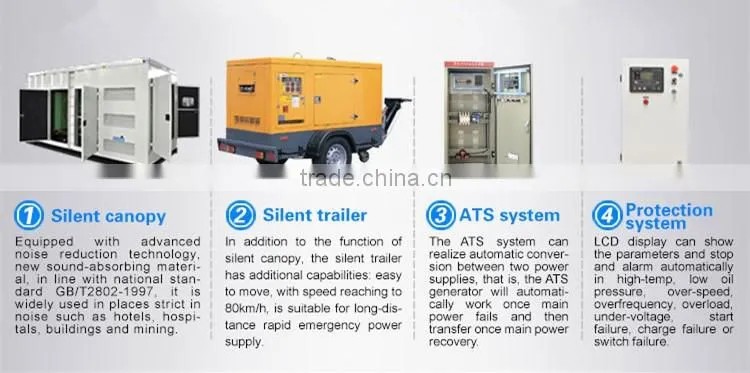

Optional:

1)Silent canopy

2)Silent trailer

3)ATS system

4)Protection system

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

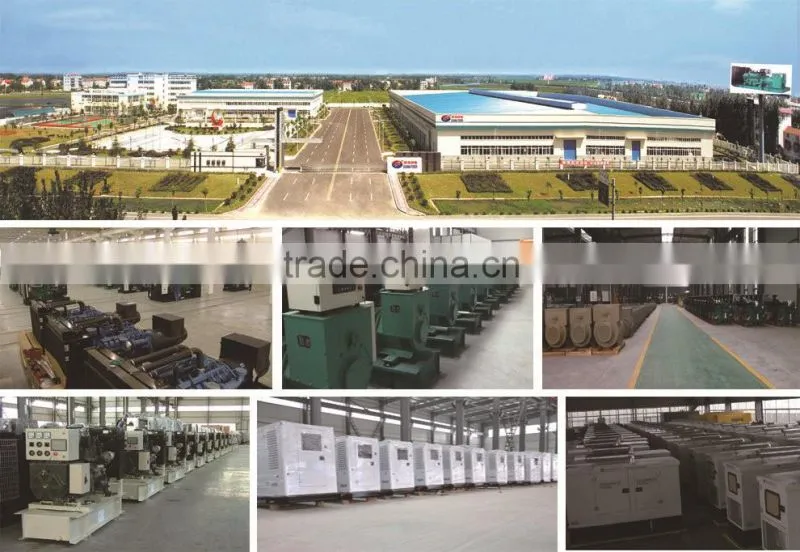

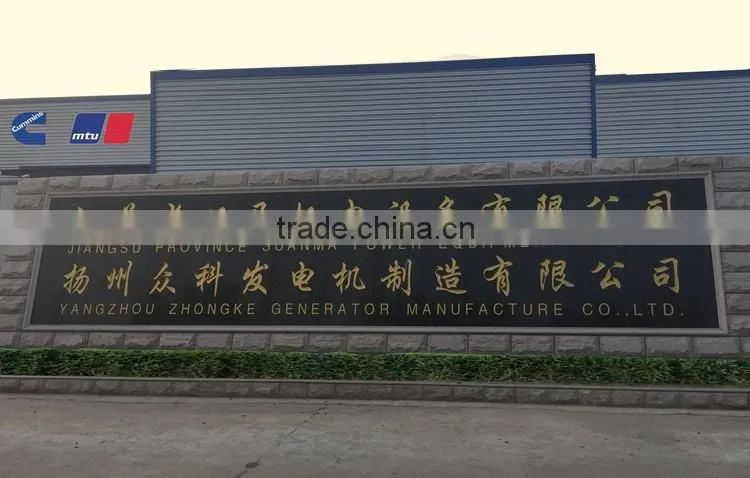

Jiangsu Province Suanma Power Equipment Co., Ltd is established in 2001. It is located in Yangzhou City, Jiangsu Province, China, which is specialized in diesel generator sets. We have many engine brands, such as Cumminns, Daewoo, Volvo, Deutz, MTU, Perkinns, Googol, Steyr, Man, Mitsubishi, Ricardo and many Chinese brand. The power specification range is 10KW-3000KW.

All our products have been certified by CE and ISO9001, and have cooperation with United States, Russian Federation, Australia, Canada, Philippines, Kazakhstan, Saudi Arabia, United Arab Emirates, and India.

We continue to develop more practical products to satisfy customer needs, effectively solves problems for customers and achieves mutual progress with channel customers.

Packaging
Size(mm)	1660(L) * 710(W) * 1250 (D)
Weight(kg)	700
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
