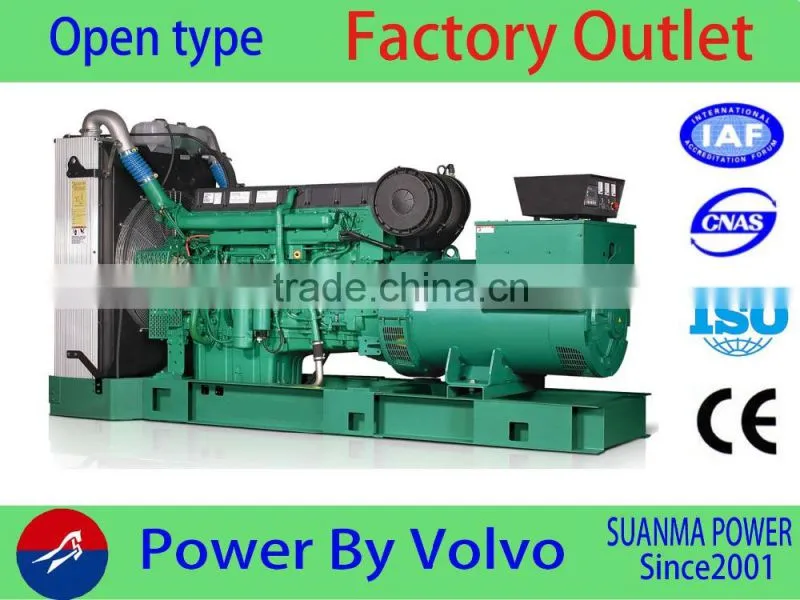

China supplier AC three phrase open type 160kw volvo generator with diesel engine

Technical data

Genset Model

SMVLV-160GF

 Prime Power

160KW/180KVA

Rated Voltage

400/230V

Frequency

50/60Hz

Power Factor

0.8(lagging)

The regulating rate of steady voltage

≤±0.5%

The regulating rate of instantaneous voltage

≤-15%/ +20%

The time of steady voltage

≤1.5sec

The waving rate of voltage

≤1.0%

The regulating rate of steady frequency

≤3%

The regulating rate of instantaneous frequency

≤±10%

The time of steady frequency

3sec

Dimension (L×W×H) (mm)

Genset weight (kg)

1620

Diesel Engine

Brand

Volvo

Model

TAD733GE

Number of Cylinders

6

Rotating Speed

1500/18000RPM

Cycle

Four stroke

Type

waste gas turbine boost,direct spurting type

Bore×Stroke(mm)

108*130

Displacement(L)

7.15

Lubricating Capacity(L)

100.4

Speed Governor

Electrical

Cooling System

Water-cooled

Speed Stability (%)

≤5%

Fuel Consumption at 100% Load

214g/kw.h

Starting Method

DC24V Electrical starting

Alternator

Brand

SUANMA

Model

Number of Phase

3

Connecting Type

Three Phase and Four Lines

Number of Bearing

1

Grading Protection

IP23

Altitude

≤1000m

Exciter Type

Brushless (AVR automatic voltage regulating)

Insulation Class

H degree

The components of the genset

(1) VOLVO Diesel Engine;        (2)SUANMA Alternator;     (3) Control Panel

Control Panel

The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.
