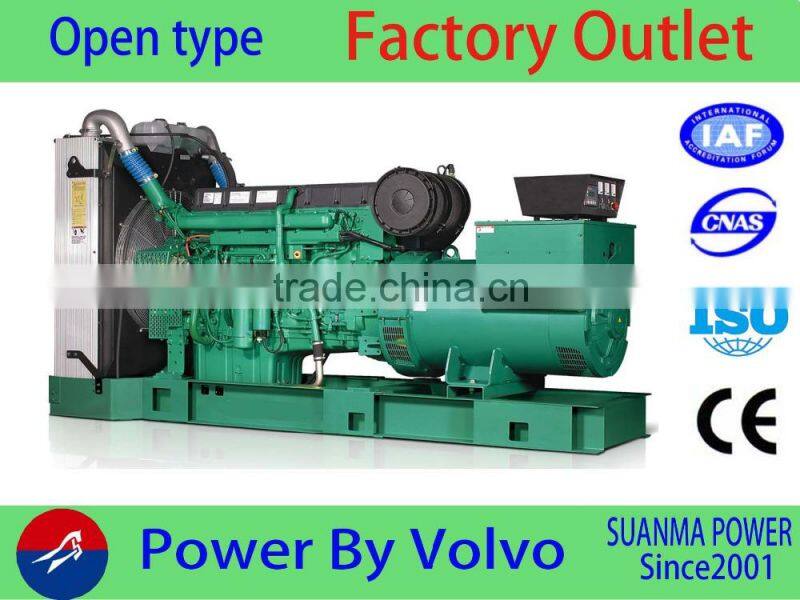

Volvo 100kw commercial diesel electric generators for sale
Technical data | |
Genset Model |
SMVLV-100GF |
Prime Power |
100KW/125KVA |
Rated Voltage |
400/230V |
Frequency |
50/60Hz |
Power Factor |
0.8(lagging) |
The regulating rate of steady voltage |
≤±0.5% |
The regulating rate of instantaneous voltage |
≤-15%/ +20% |
The time of steady voltage |
≤1.5sec |
The waving rate of voltage |
≤1.0% |
The regulating rate of steady frequency |
≤3% |
The regulating rate of instantaneous frequency |
≤±10% |
The time of steady frequency |
3sec |
Dimension (L×W×H) (mm) |
2200*1000*1450 |
Genset weight (kg) |
1200 |
Diesel Engine | |
Brand |
Volvo |
Mode |
TAD532GE |
Number of Cylinde |
4 |
Rotating Speed |
1500/18000RPM |
Cycle |
Four stroke |
Type |
waste gas turbine boost,direct spurting type |
Bore×Stroke(mm) |
108*130 |
Displacement(L) |
4.76 |
Lubricating Capacity(L) |
15 |
Speed Governor |
Electrical |
Cooling System |
Water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
214 g/kw.h |
Starting Method |
DC24V Electrical starting |
Alternator | |
Brand |
SUANMA |
Model |
SMI-100 |
Number of Phase |
3 |
Connecting Type |
Three Phase and Four Lines |
Number of Bearing |
1 |
Grading Protection |
IP23 |
Altitude |
≤1000m |
Exciter Type |
Brushless (AVR automatic voltage regulating) |
Insulation Class |
H degree |
The components of the genset | |
(1) VOLVO Diesel Engine; (2)SUANMA Alternator; (3) Control Panel | |
Control Panel | |
|
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection. | |
Our company was established in 2001 is located in Yangzhou City which specializing in generators, diesel generator sets and mobile trailers, quiet speaker professional equipment manufacturers, the main products are: domestic / import a full range of generators, diesel power generation unit; automation, low noise mute, mobile power plants and other power specifications for 3KW-3000KW.
Our company in the "pursuit of excellence, never go beyond, quality, reputation first" spirit of enterprise, to provide you with a full range of power solutions and services, our products are in line with ISO9001 international quality management System Certification, ISO14001 environmental management system certification and comply with GB / T2820.5-1997 or GB12786-91 national standards, and has been mass market.
Guests Visit Our Factory
Volvo 100kw commercial diesel electric generators for sale
Volvo 100kw commercial diesel electric generators for sale
1. You are the factory or agents?
A: We are physical plant, factory, established in 2001
2. What brand do you mainly diesel generator sets?
A: We are according to customer requirements can be customized customer wants diesel generator sets
3. What is your acceptable payment?
A: We can accept payment is T/T and L/C
4. How long is your delivery time?
A: Our delivery time is based on the number of orders and customer requirements to determine, the conventional type basically have ready
5. How long is your warranty?
A: One year or diesel generator running 1000 hours, whichever occurs first, and lifetime maintenance
