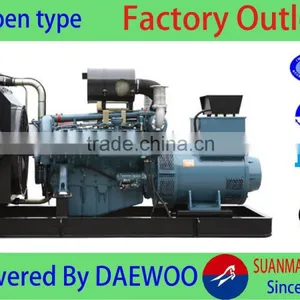

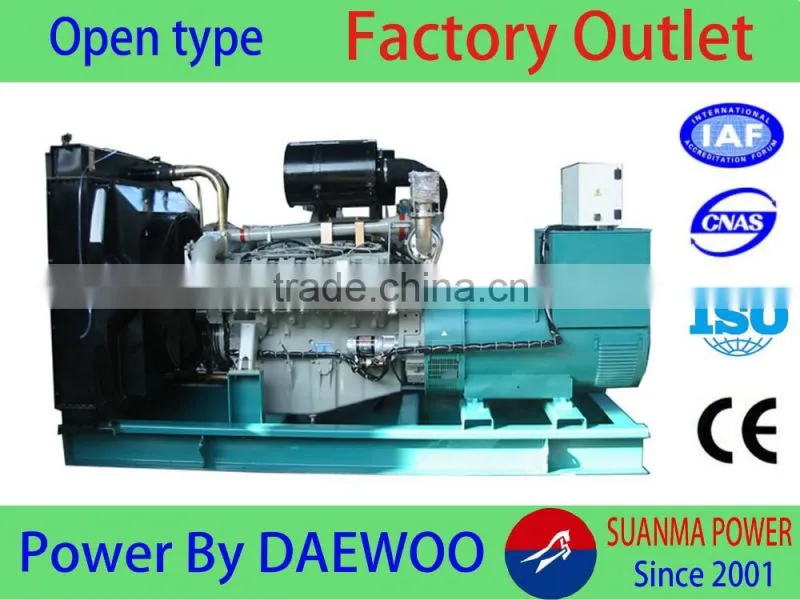

China manufacturer 220kw with Daewoo engine 275kva diesel power generators for home
Technical data | |
Genset Model |
SMDW-220GF |
Prime Power |
220KW/275KVA |
Rated Voltage |
400/230V |
Frequency |
50/60Hz |
Power Factor |
0.8(lagging) |
The regulating rate of steady voltage |
≤±0.5% |
The regulating rate of instantaneous voltage |
≤-15%/ +20% |
The time of steady voltage |
≤1.5sec |
The waving rate of voltage |
≤1.0% |
The regulating rate of steady frequency |
≤3% |
The regulating rate of instantaneous frequency |
≤±10% |
The time of steady frequency |
3sec |
Dimension (L×W×H) (mm) |
2900*1030*1650 |
Genset weight (kg) |
2360 |
Diesel Engine | |
Brand |
Daewoo |
Model |
P126TI |
Number of Cylinders |
6 |
Rotating Speed |
1500RPM |
Cycle |
Four stroke |
Type |
waste gas turbine boost,direct spurting type |
Bore×Stroke(mm) |
123*155 |
Displacement(L) |
11.1 |
Lubricating Capacity(L) |
22.4 |
Speed Governor |
Electrical |
Cooling System |
Water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
198g/kw.h |
Starting Method |
DC24V Electrical starting |
Alternator | |
Brand |
SUANMA |
Model |
SMI-220 |
Number of Phase |
3 |
Connecting Type |
Three Phase and Four Lines |
Number of Bearing |
1 |
Grading Protection |
IP23 |
Altitude |
≤1000m |
Exciter Type |
Brushless (AVR automatic voltage regulating) |
Insulation Class |
H degree |
The components of the genset | |
(1) Daewoo Diesel Engine; (2)Suanma Alternator; (3) Control Panel | |
Control Panel | |
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection. | |
Our company is founded in 2001, has been engaged in research, development and production of diesel generator sets. After years of unremitting struggle, the existing fixed assets is $ 83560. Current assets is $ 96800, standard modern workshop is over 30,000 square meters.We have 136 staffs, including reserch and development 33 people, senior engineer 16 people.
Our efforts is globally recognized by customers in various fields. Our diesel generator sets have been sent to 29 countries. They all have been praised by our customers. Also, we have been always improving every details of our diesel generator sets, so that our customers will be more saisfied with them. We welcome new and old customers around the world to visit our work, let us build a good relationship.
Our guests visit factory
China manufacturer 220kw with Daewoo engine 275kva diesel power generators for home
China manufacturer 220kw with Daewoo engine 275kva diesel power generators for home
1. the end user has to buy all the products, as well as the intention of my product users are our clients.
2. to provide you with your technical specifications advisory generator sets and ancillary products for free.
3. to provide you with a free inspection of the generator set purchased, positioning, installation instructions.
4. technical personnel to provide free training.
5. provide your room design, distribution design, noise reduction engineering design.
6. the unit of routine maintenance, minor repairs, repair and overhaul services.
7. any unexpected repair unit.
8. all models unit automatically or manually change monitoring, in order to facilitate smooth integration into the telecommunications networkunit or building automation management.
