Home > Products > Veneer slicer > shandong veneer peeling machine/ slicer machine

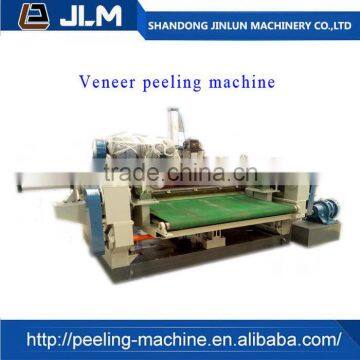

shandong veneer peeling machine/ slicer machine
- 20 Set / Sets per Month
- qingdao
- T/T Credit Card PayPal
Product Details
| Condition: | New | Type: | Other, Wood Veneer slicing machine | Place of Origin: | Shandong, China |
| Brand Name: | JINLUN | Model Number: | JL4*8-1300\2600 | Voltage: | 380V |
| Power(W): | 22KW | Dimension(L*W*H): | 3550*1370*4200mm | Weight: | 5000KG |
| Certification: | CE | Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
shandong veneer peeling machine/ slicer machine
The details of wood veneer slicing machine
| BBK1142 | BB1132F | BB1130F | BB1127F1 |
Max. cutting size (mm) | 4250 x 750 x720 | 3200 x 600 x 800 | 3000 x 650 x 720 | 2700 x 650 x 400 |
Cutting veneer thickness(mm) | 0.1-3.6 | 0.2-2.2 | 0.1-2.2 | 0.14-2.2 |
Frequency (t/min) | 10-36 | 10-35 | 13-25 | 13-33 |
Main motor power (kw) | 55 | 55 | 30 | 22 |
Lift motor power(kw) | 4 |
| 4 | 2.2 |
Clamping motor power(kw) | 7.5 | 0.75 | 2.2 | 2.2 |
Overall dimensions (mm) | 9740 x 6300 x 2845 | 9200 x 4710 x 3000 | 8095 x 3975 x 2710 | 7785 x 3870 x2440 |
Weight (kg) | 36000 | 34000 | 20000 | 16600 |
Pre-sale
1.Free consultation about the equipment.
2.Reasonable purchasing plan and the production line designing plan are offered according to the clients' special requirment to help you to select the most suitable machinery.
3.Welcome to visit our factory and check our machine.
During-sales
1. We inspect and test the machine before delivery.
2.We are willing to freely tran your technicist and first-line operator.
After-sales
1.Engineers are available to service overseas.
2.Videos about installing and debuging the equipment.
plywood production line

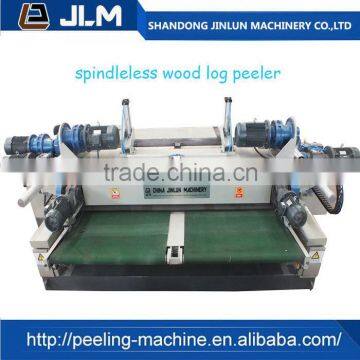

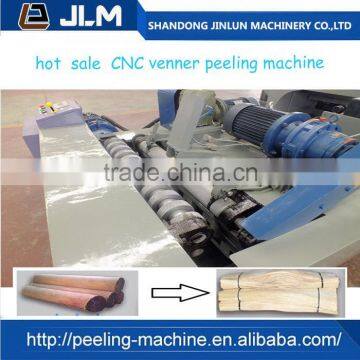

JINLUN CNC Spindleless Veneer Peeling Machine | |||
Type | 4 feet (1300mm) | 8 feet (2600mm) | 10 feet (3200mm) |
Model | WWXQ130SY-40F | WWXQ260SY-45F | WWXQ320SY-50F |
Cutting Size | 450*1300mm | 450*2600mm | 500*3200mm |
(Diameter*Length) | |||
Min Residual | 28mm | 35mm | 35mm |
Diameter | |||
Max Stroke of | 400mm | 450mm | 500mm |
Tool Slide | |||
Cutting Thickness | 0.5~3.6mm | 0.5~3.6mm/3.6-6.5mm | 0.5~3.6mm |
Cutting Speed | 48m/min | 48m/min | 48m/min |
Power | 21.5KW | 31.5 KW | 45 KW |
Peeler blade | 1400mm*180mm*16mm | 2700mm*180mm*16mm | 3300mm*180mm*16mm |
(L*W*H) | |||
Clipper Size | 1400mm*90mm*12.7mm | 2700mm*90mm*12.7mm | 3300mm*90mm*12.7mm |
(L*W*H) | |||
Dimensions | 3200mm*2100mm*1350mm | 5300mm*2200mm*1450mm | 6800mm2200mm1450mm |
(L*W*H) | |||
Total Weight | About3400KG | About 7800KG | About 12000KG |
Contact Us
- Shandong Jinlun Machinery Manufacturing Co., Ltd.
- Contact namejinlun machine
- Phone86-0539-6017997
- AddressHuaxia Road, Ecnomic&Technological Development Area Linyi,Shandong
-
