Specifications
1.Steel: P20, 718H, 27382.OEM service
3.Meet EU standard
4.Tight tolerance, long lifetime
5.10 years' experience

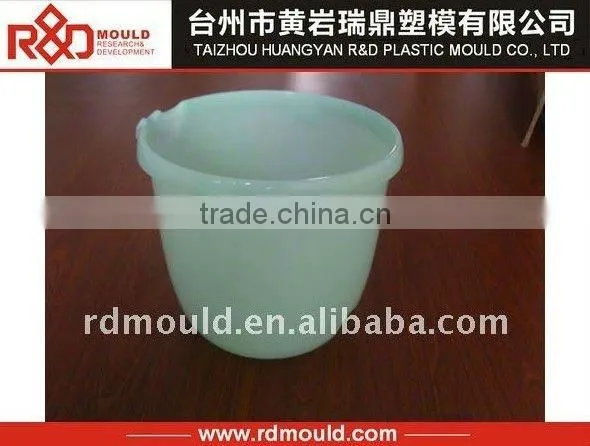

magic plastic mop bucket mould
R&D mould every year offer 30-50 sets of bucket moulds to our oversea market. During our work, we would like to share some technical points before you choose your partner.
How to avoid the bucket mould core eccentricity, caused the bucket wall thickness not even?
1. optimal and equal cooling effects in different area of bucket mould cavity and core.
2. the high and angle of the bucket moulds interlock system.
3. the machining process to the bucket moulds cavity and cores will cause the eccentricity.
- product and mould structure design in 2D and 3D program. If necessary R&D offers service offers service for innovative product design with support of mould flow program.
- Mould project sent for customer confirmation and print 2D tooling and machining artwork detail drawing with acceptable tolerance marked.
- Purchasing the material and mould standard components according to the list information in 2D tooling detail drawing.
- Steel material tooling and heat treatment according to the listed step on the 2D artwork detail drawing.
- Mould assembling and quality inspection according to 2D mould assembling detail drawing.
- Mould test and products are sent to customer for confirmed.
- Sample sent for customer inspection and get approval for shipment of mould.
Process flow chart
On the strict management system
Customer’s Order | |||||
↓ | |||||
Product & Mould Stucture Design Confirmation | |||||
↓ | |||||
Materials preparation |
CNC Programming |
Manufacturing Process Design |
Components Design |
||
↓ | |||||
Heat Treatment | |||||
↓ | |||||
Roughcasting Process |
Fine maching Process |
||||
↓ | |||||
Fitting |
Assmbly& Imspection |
Initial Mould Trial |
Inspection & modification |
||
↓ | |||||
Mould Trial(T1) | |||||
↓ | |||||
Deliver Sample for customer’s Approval | |||||
↓ | |||||
NG |
Approved |
||||
↓ |
↓ |
||||
Mould Modification As per customer’s requirement |
Final Finishing (Polishing, chrome plating, etching, nitrification, nitrification, ect. ) |
||||
|
↓ |
||||
Final Mould Trial | |||||
↓ | |||||
Mould Shipment | |||||
