Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cleaning Machine > Coarse Thread Venturi Tungsten Carbide Sandblast Nozzle With Aluminum Jacket

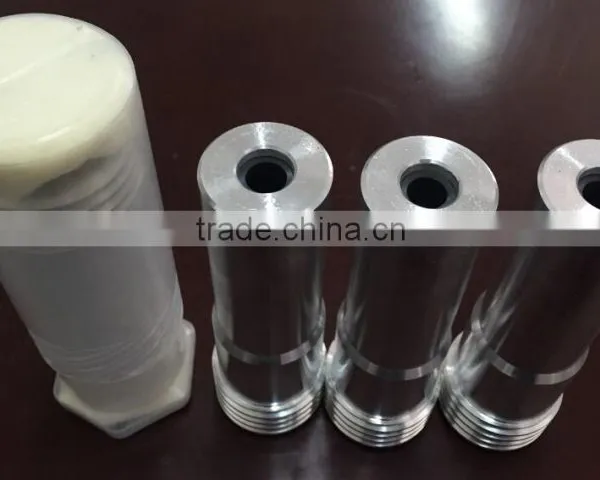

Coarse Thread Venturi Tungsten Carbide Sandblast Nozzle With Aluminum Jacket
US$ 40 - 60
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HOLDWIN
Model Number:
ABN
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sandblaster Gun With Hose Ceramic NozzlesUS$ 15 - 25MOQ: 20 Pieces -
Labor Protection Gloves PVC Sandblast Gloves 60cmUS$ 16 - 30MOQ: 10 Pairs
-
High Quality Sand Blasting Mask With ShoulderUS$ 50 - 120MOQ: 1 Piece
-
Sand Blasting HoseNegotiableMOQ: 1 Roll
-
High Quality Sand Blasting GlovesUS$ 16 - 30MOQ: 10 Pairs
Brand Name
HOLDWIN
Model Number
ABN
Condition
New

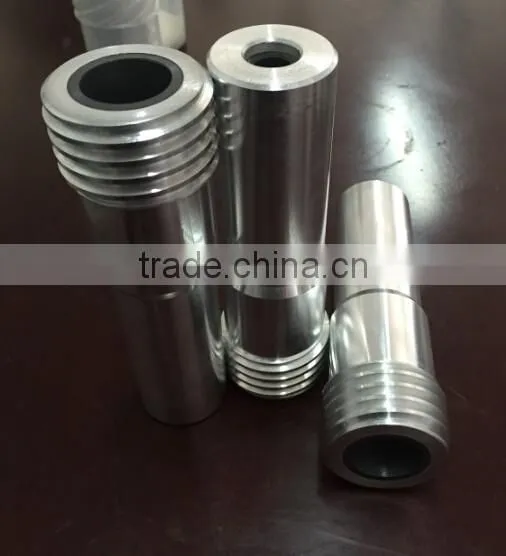

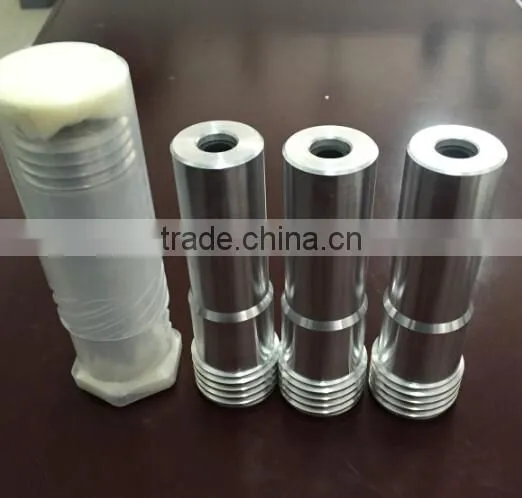

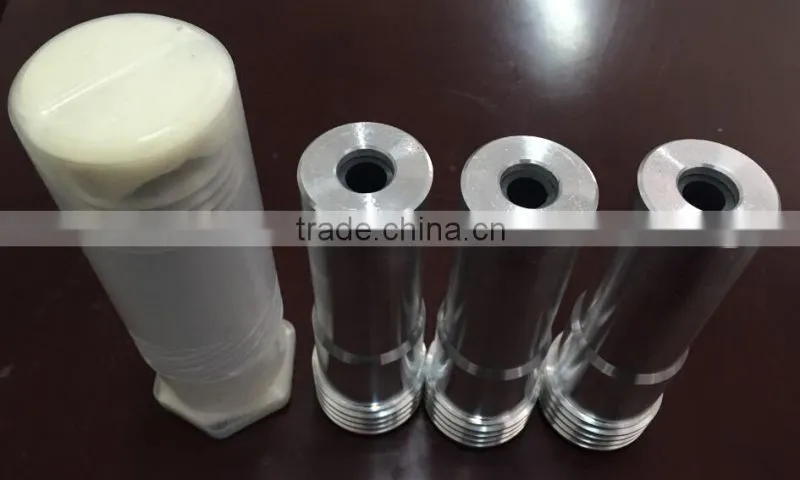

Coarse thread venturi tungsten carbide sandblast nozzle with aluminum jacket
sandblast nozzles manufacture
boron carbide sandblasting nozzles double venturi nozzle
Applications:
Using boron carbide as the main raw material, boron carbide is one of the hardest man-made materials, its hardness only to diamond and cubic boron nitride.
Light weight, semiconductor properties, absorb neutrons, high grinding efficiency, and strong acid alkali not react, etc., Mohs hardness of 9.36.
Microhardness of 5400 ~ 6300 kgf/mm2, a density of 2.52 g/cm3, a melting point of 2450 degrees Celsius.
I produced the boron carbide products feature: it has the same properties of boron carbide,an extremely hard and wear-resistant, does not react with acid resistance, high temperature high pressure,to ensure that the density of boron carbide blasting guns ≥ 2.48g/cm3. Microhardness ≥ 3500kgf/mm2, bending strength ≥ 400Mpa, melting point 2450 °C.
Boron carbide and its products are widely used in industrial machinery, petroleum, chemical, shipbuilding, metallurgy, automobile, aerospace, military, nuclear, etc.,with boron carbide, silicon carbide manufacture nozzles, seals, wire drawing dies, sliding plates , measurement probe, bearings, body armor,armor plates and blocks the absorption of neutrons and other products, in the technical field injection, sealing, drawing,casting, protection, preservation, and other industries widely used measure.
main technical:
| Boron Carbide nozzles | Entry Diameter: 1'' 1 1/4'' | Material: Boron Carbide & Tungsten Carbide | |
MODEL NO. | I.D. | O.D. | LENGTH |
ABN-6.4 | 1/4" (6.4mm) | 1-5/8" (36mm) | 130mm |
ABN-7.9 | 5/16"(7.9mm) | 1-5/8" (36mm) | 150mm |
ABN-9.5 | 3/8" (9.5mm) | 1-5/8" (36mm) | 170mm |
ABN-11.1 | 7/16"(11.1mm) | 1-5/8" (36mm) | 200mm |
ABN-12.7 | 1/2" (12.7mm) | 1-5/8" (36mm) | 210mm |
You can choose:
Thread: coarse thread / fine thread
this nozzle length:150mm
bore diameter:6/8/10mm
jacket:aluminum
material :boron carbide
