Help CenterAuto Grille Mould
Related Products
Specifications
1.Design software:ProE,UG,CAD2.Base:LKM,FUTA
3.mold life: 500 000 shots
4.Lead-time: 25-45 days
5.OEM service available

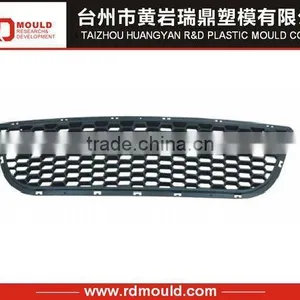

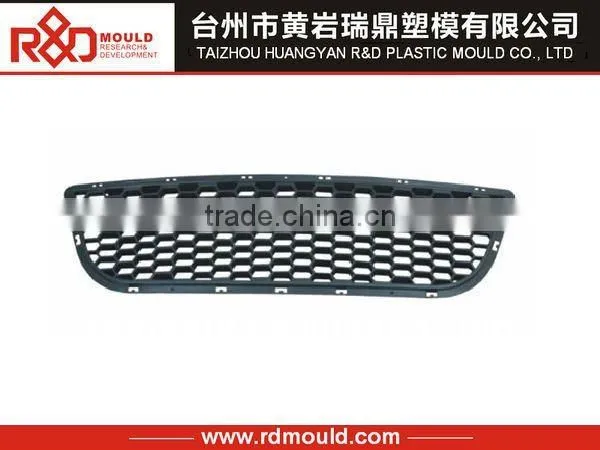

auto grille mould
We are one of the biggest manufacturers of big moulds in Taizhou City, Zhejiang Province, having been making moulds for more than 14 years With CNC, EDM, grinding machine, milling machine, we can supply high precision bucket mould and competitive piece of customers. And we can provide 3D file or CAD drawings as per customers request.
Design ability
Our engineer have many years of technical experience at injection mould design by using. Pro-E, Solid works, U.G and Auto-CAD, All of these ensure our good technical communication with customers, so as to avoid mistakes.
Clients can provide the 2D or 3D drawing in DXF,DWG,PRT, IGS, STP format or just send us the sample. We will scan the sample and make produce blueprint, begin to design the mould assemble drawing after get the clients confirmation.
Following is the auto grille mould informations for your reference.
| Name | auto grille mould |
| Mould material | 45#,P20,P113,718,S136,ect |
| Mould base | LKM,HASCOect |
| Cavity | Single/mulity |
| Runner | hot/cold |
| Design software | UG,PROE,CAD,CAXAect |
| Palitic material | PP,PC,PS,PE,PU,PVC,ABS,PMMAect |
| Mould life | 300.000-3,000,000 |
| Delivery time | accroding to the real sotuation |
| specification | Depends on customer's requirments |
Process flow chart
On the strict management system
Customer’s Order | |||||
↓ | |||||
Product & Mould Stucture Design Confirmation | |||||
↓ | |||||
Materials preparation |
CNC Programming |
Manufacturing Process Design |
Components Design |
||
↓ | |||||
Heat Treatment | |||||
↓ | |||||
Roughcasting Process |
Fine maching Process |
||||
↓ | |||||
Fitting |
Assmbly& Imspection |
Initial Mould Trial |
Inspection & modification |
||
↓ | |||||
Mould Trial(T1) | |||||
↓ | |||||
Deliver Sample for customer’s Approval | |||||
↓ | |||||
NG |
Approved |
||||
↓ |
↓ |
||||
Mould Modification As per customer’s requirement |
Final Finishing (Polishing, chrome plating, etching, nitrification, nitrification, ect. ) |
||||
|
↓ |
||||
Final Mould Trial | |||||
↓ | |||||
Mould Shipment | |||||
