1 Channel Active Video Balun up to 2400m UTP Transceiver for Cctv Camera

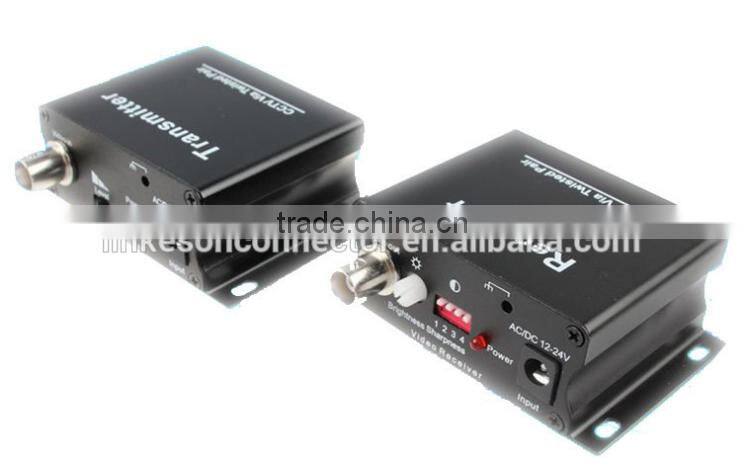

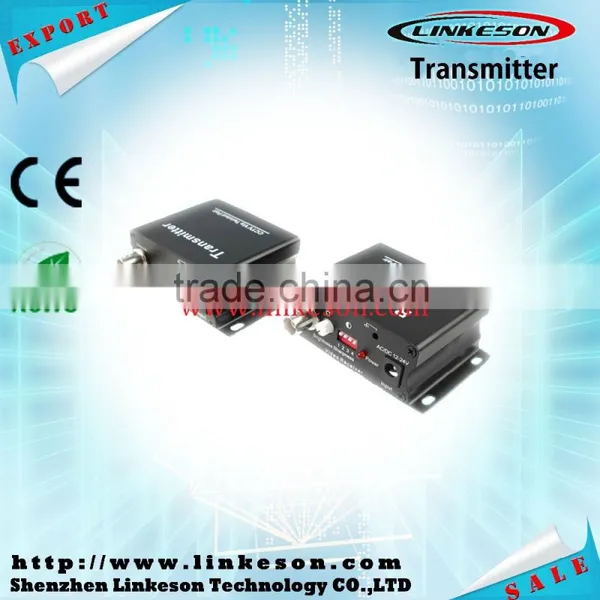

1 Channel Active Video Balun up to 2400m UTP Transceiver for Cctv Camera photo-1

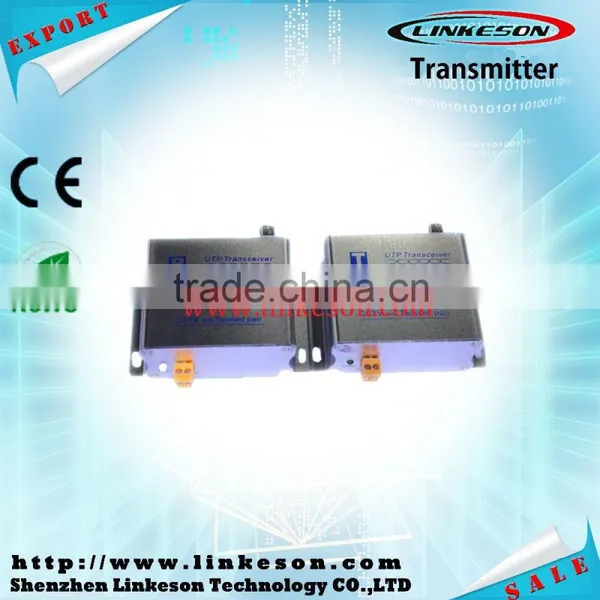

1 Channel Active Video Balun up to 2400m UTP Transceiver for Cctv Camera photo-2
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Linkeson
Model Number:
transmission
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name Linkeson
Model Number transmission

       Hi welcome to  Shenzhen Linkeson Technology Co.,LTD

                                 1 channel active video balun up to 2400m UTP transceiver for cctv camera

     1 channel active video balun up to 2400m UTP transceiver for cctv camera











Product Description

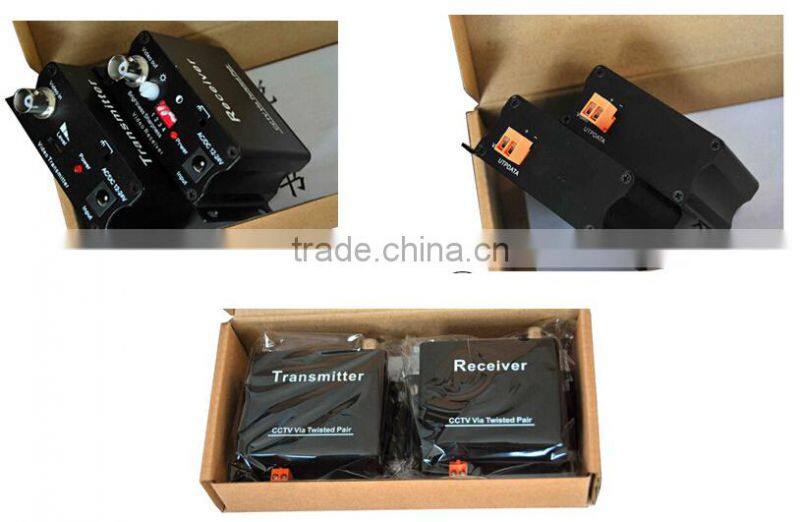

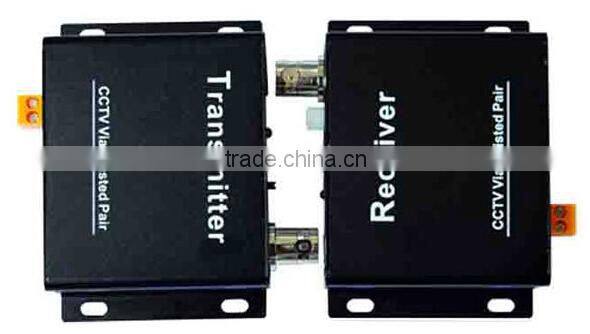

 Product details show:



                   1 channel active video balun up to 2400m UTP transceiver for cctv camera



1 channel active video balun up to 2400m UTP transceiver for cctv camera









Specification:



Video Format
NTSC, PAL, SECAM
Frequency Response DC to 8MHz
Attenuation0.5dB typ
CMRR60 dB
ImpedanceCoax, Male BNC 75 ohms
Terminal Block 100 ohms
Working Temperature-10℃ to +70℃
Storage Temperature-30℃ to +70℃
Humidity0 to 95%
Wire TypeUTP5
ConnectorFemale BNC and terminal Block
Power12-24VDC
Casealuminium alloy
Type of the required wireUnshielded Cat-5 or above twisted pair wire (Please use standard Cat-5 or above twisted pair wire. The wire quality will directly affect the transmitted image effect and transmission distance.)

Characteristic impedance100Ù±20Ù
DC Loop Resistance18Ù/100m
Differential capacitance62pf/m (Maximum)
Dimension98mm*85mm*24mm
Weight190g





  • Transmit 1 channel of video signals
  • Adopt differential signal transmission with excellent anti-interference ability
  • Save wire expenses, each pair of twisted pair wire transmits One Channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal
  • The farthest transmission distance will be 1500m if used with active transceiver and the farthest transmission distance can reach 800m if it is used with passive transmitter
  • Outstanding interference rejection, transient protection





1 channel active video balun up to 2400m UTP transceiver for cctv camera

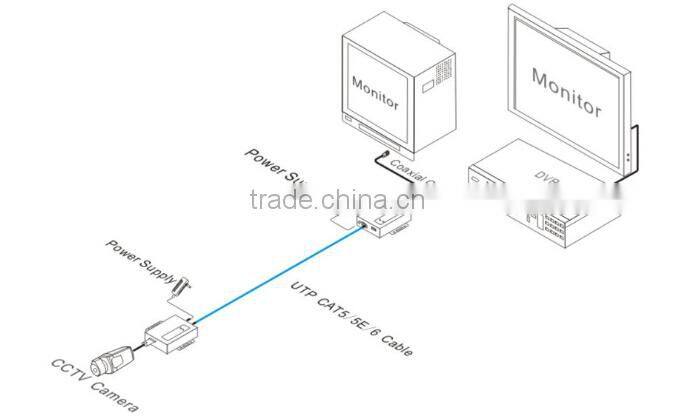

Application:







1 channel active video balun up to 2400m UTP transceiver for cctv camera

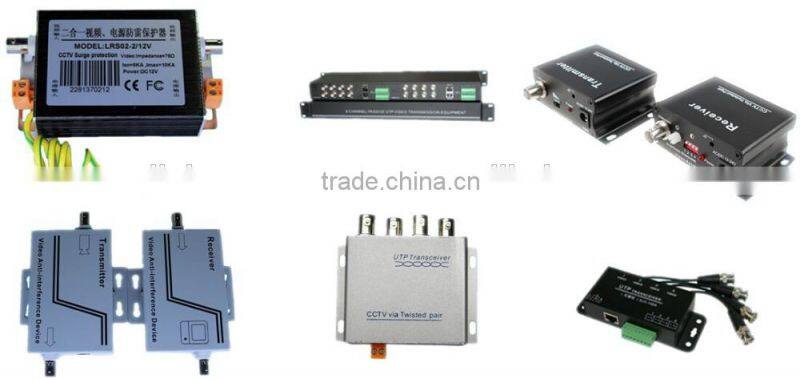

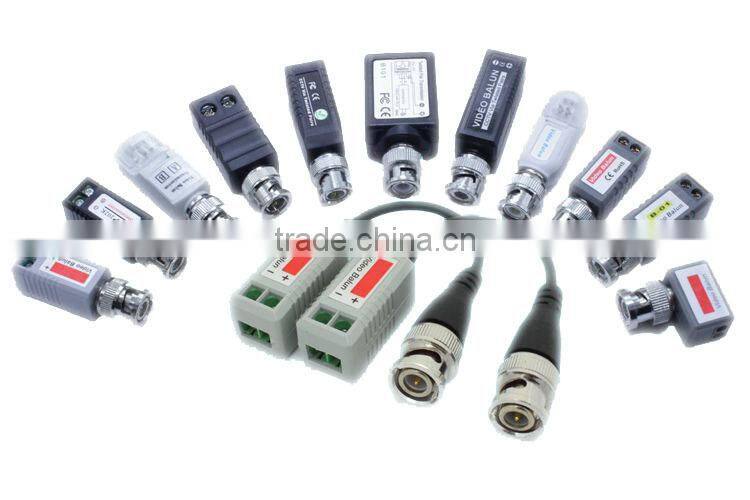

 A series of other products  recommended for you:
