Hi welcome to Shenzhen Linkeson Technology Co.,LTD

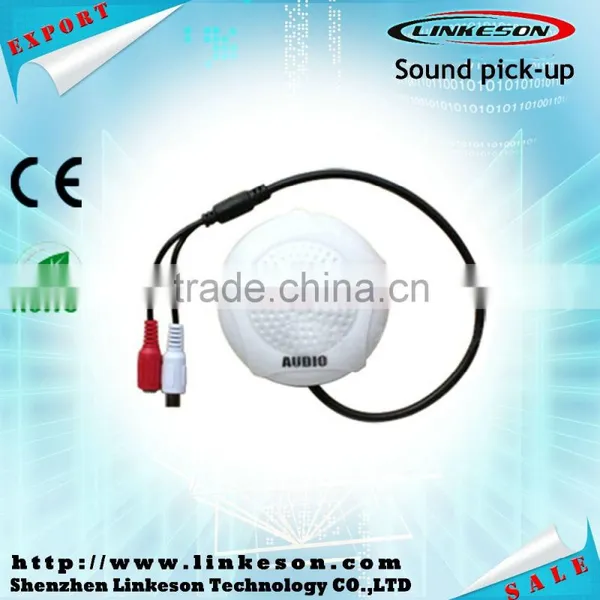

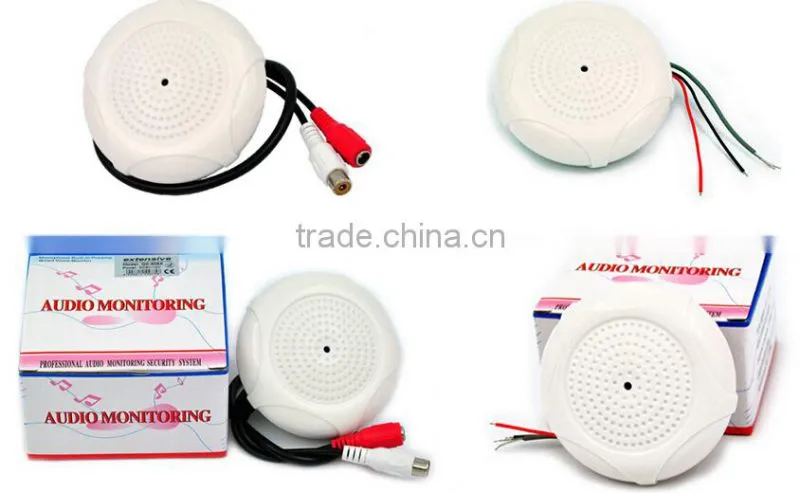

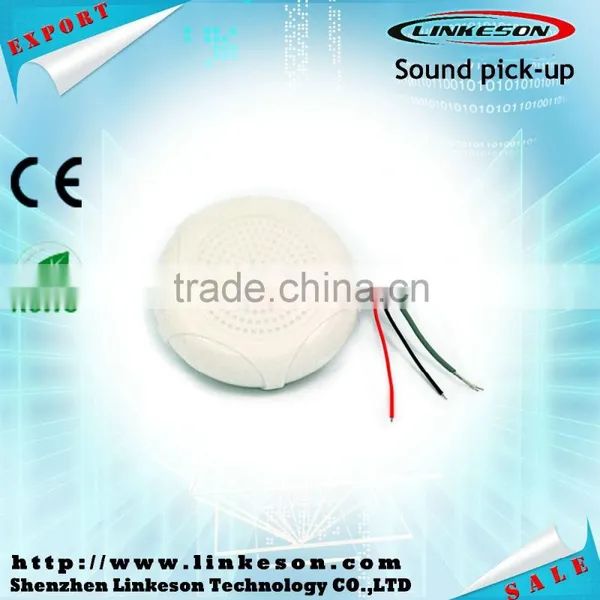

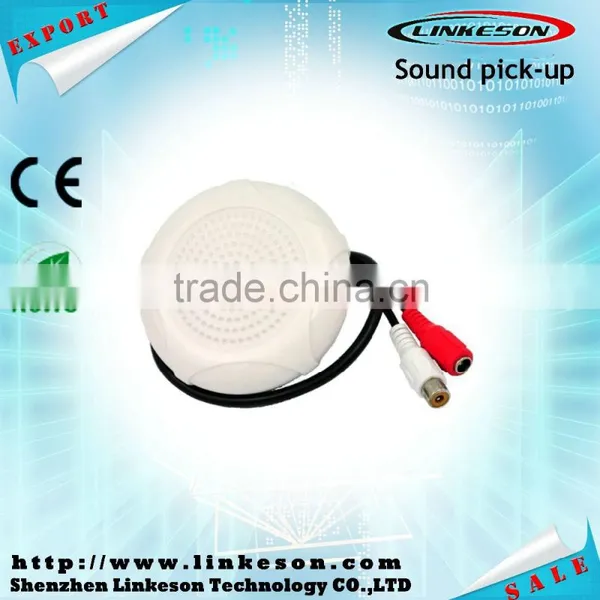

high sensitivity DPS digtal noise reduction sound pickup
Product details show:
Specification:
| performance parameter | |
| Monitoring scope | 5-150 square meter |
| Frequency response | -63db |
| DBIN | 0-5V |
| Dimension | 32mm×Φ74mm |
| Sensitivity | -35DB 1000Hz |
| Current consumption | 15mA |
| Frequency range | 20Hz- 20KHz |
| Output Impedance | 600 ohm |
| SNR | In silence 95db/dynamical 75db |
| Microphone | noise reduction Anti-interference omnidirectional microphone |
| Process circuit | AGC,DSP noise eliminating circuit |
| Operating Voltage | 6-12VDC,20mA(MAX) |
| Operating temperature | -20℃~+70℃ |
| Connection mode 1 | Red 12V (VDD),black GND Yellow Aout |

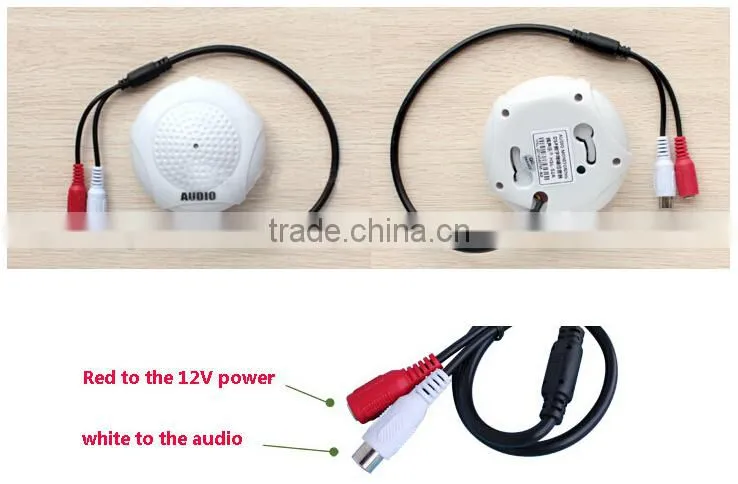

| Connection mode 2 | Red conenctor DC 12V,White connector RCA( signal output) |
high sensitivity DPS digtail noise reduction sound pickup
The pickup is a high sensitivity pickup parts, is designed for monitoring, burglar alarm security system complete professional recording products are designed for monitoring within the normal range and recording, monitoring range of 5 to 150 square meters, part of the model sensitivity adjustable.
Low noise, low distortion, small size, power reverse protection circuit, power consumption is small, transmission distance, the connection is simple and convenient, can be a wide range for monitoring. Can be widely used in banking, finance, shopping malls, prisons, justice, classrooms, conference rooms, industrial production, military areas, and many other places.
Detailed Product Description:
DPS digtail noise reduction
ALC automatic electrical level control circuit
Automatic gain AGC circuit
The ANC environmental noise silencing technology
Transmission Wire Use a core with shielded wire, or The ordinary two core power cable
Shenzhen Linkeson Technology Co.,Ltd, is a company engaged in the RF connector R&D, production, sales, professional services in one of the professional high-tech enterprises.Our products have gained international CE,ROHS,ISO9001 certification,ODM and OEM are available.
Our Sertification:
1.Ordinary packing and Customized packing.
2.Fedex,UPS,EMS,DHL or By Sea, By Air.
1.Faster delivery:Fast delivery 3 days for sample order,5 days for formal order.
2.High warranty,strictly test by QC before shipping.
3.Customized packing and customer's logo are accepted.
4.Sample order is welcome and it can be free if you are real customer.
5.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
6.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime.
7.Strong production ablility:-Monthly output is over 600000pcs.
8.Professional factory directly sale all over the wrold.
Q:What' your MOQ?
A:500 pieces
Q:What's you pay ment?
A:Usually we accept T/T,also can accept Paypal and Western Union.
Q:What's your delivery?
A:----Via Express: Generally about 5 workdays.
---Via Air Mail: Generally about 3 workdays.
Q:What about your warranty?
A:1.We can provide 1 year warranty.
2.With CE,ROSH,FCC certificate to ensure the quality.
3.All products have been checked and packaged in good condition by QC before dispatch.
Any material, any package, any logo acceptable, free sample service, leave an inquiry to know more details about Price,Packing,Shipping and Discount.
Welcome to contact us for more details
