Hi welcome to Shenzhen Linkeson Technology Co.,LTD

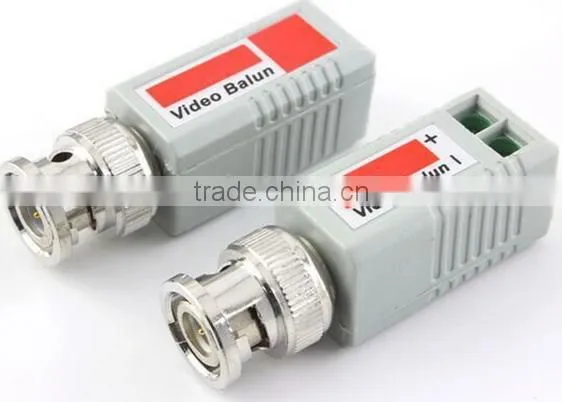

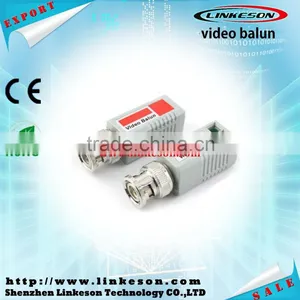

Security Camera CCTV System Video balun
CCTV video baluns, also known as UTP baluns, allow traditional coax cable to be replaced by category 5 and other forms of twisted pair wire in CCTV video camera & surveillance installations. Video baluns allow installers to use more cost effective structured cabling techniques to wire security cameras. By using video baluns, UTP wire such as cat-5 can be run over longer distances easier than coax cable and for less money. Active balun transceivers enable UTP wires for cameras to be run distances up to 5,000 feet.
Specification:
1.a wide range,plug and play
2.good quality
3.easier for installation, save time and safer cable connection
| ITEMS | SPECIFICATION |
| Transmission Distance | |
| Transmission Distance with passive | 300-450m |
| Transmission Distance with active | 1200m |
| Video | |
| Video Format | PAL,NTSC,SECAM |
| Operating Frequency | DC to 6MHz |
| Common-mode/Different-mode rejection | 15KHz to 5MHz 60 dB typ |
| Attenuation | 1.5dB typ Max |
| Impedance | Male BNC:75Ω |
| terminal:100Ω | |
| Wire type | |
| Network Wiring | One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm) |
| Category Type | 5 or better |
| Impedance | 100±20ohms |
| DC Loop Resistance | Different Capacitance |
| Protection | |
| Video Input | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
Video Output |
2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Connector | |
| Video input/output | Male BNC / Push-Pins |
| Mechanical | |
| Housing | ABS engineering plastic |
| Body Color | Black |
| Dimensions | 95*80*14mm |
| Gross weight | 33g |
| Environment | |
| Operating Temperature | -20℃-70℃ |
| Relative Humidity | 0-95%(non-condensing) |
| Storage Temperature | -40℃-80℃ |

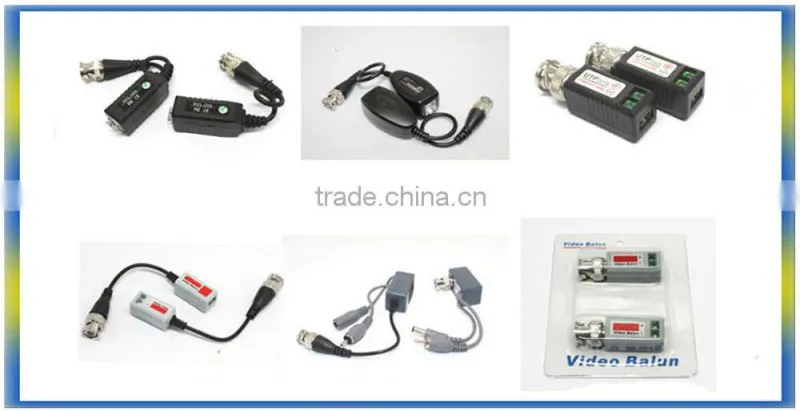

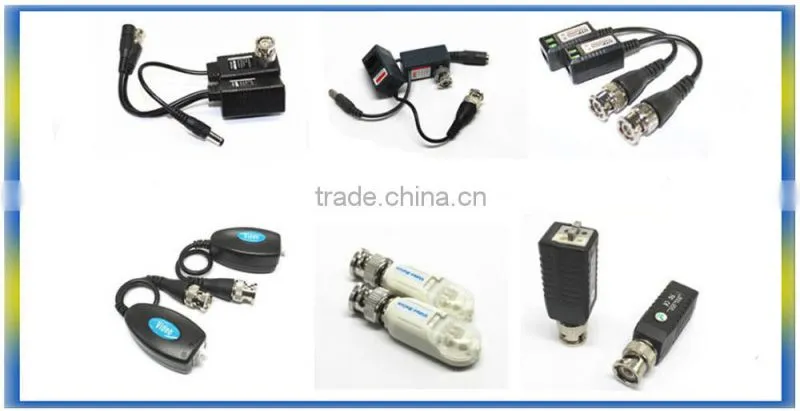

A series of other products recommended for you:
Extensive application:
Shenzhen Linkeson Technology Co.,Ltd, is a company engaged in the RF connector R&D, production, sales, professional services in one of the professional high-tech enterprises.Our products have gained international CE,ROHS,ISO9001 certification,ODM and OEM are available.
Trade Information
Our Sertification:
1.Ordinary packing and Customized packing.
2.Fedex,UPS,EMS,DHL or By Sea, By Air.
1.Faster delivery:Fast delivery 3 days for sample order,5 days for formal order.
2.High warranty,strictly test by QC before shipping.
3.Customized packing and customer's logo are accepted.
4.Sample order is welcome and it can be free if you are real customer.
5.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
6.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime.
7.Strong production ablility:-Monthly output is over 600000pcs.
8.Professional factory directly sale all over the wrold.
Q:What' your MOQ?
A:500 pieces
Q:What's you pay ment?
A:Usually we accept T/T,also can accept Paypal and Western Union.
Q:What's your delivery?
A:----Via Express: Generally about 5 workdays.
---Via Air Mail: Generally about 3 workdays.
Q:What about your warranty?
A:1.We can provide 1 year warranty.
2.With CE,ROSH,FCC certificate to ensure the quality.
3.All products have been checked and packaged in good condition by QC before dispatch.
Any material, any package, any logo acceptable, free sample service, leave an inquiry to know more details about Price,Packing,Shipping and Discount.
Welcome to contact us for more details
Your satisfied is our target!
