HD AHD CVI TVI single BNC video balun for CCTV security
CCTV video baluns, also known as UTP baluns, allow traditional coax cable to be replaced by category 5 and other forms of twisted pair wire in CCTV video camera & surveillance installations. Video baluns allow installers to use more cost effective structured cabling techniques to wire security cameras. By using video baluns, UTP wire such as cat-5 can be run over longer distances easier than coax cable and for less money. Active balun transceivers enable UTP wires for cameras to be run distances up to 5,000 feet.
Specification:
| Features | |
| Compatible with all HD-CVI,HD-TVI,HD-AHD | |
| Up to 450m for 720P CVI Camera | |
| Up to 250m for 1080P CVI Camera | |
| Up to 250m for 720/1080P CVI Camera | |
| Up to 320m for 720P AHD Camera | |
| NTSC,PAL and SECAM video formats | |
| No power required | |
| 60DB cross talk and niose immunity | |
| Compact size talk and easy installation | |
| Built-in transient suppression pretection | |
| Innovative combinable design | |
| Technical Specifications | |
| Frequency response | DC to 60Mhz |
| Attenuation | 0.5dbtype |
| CMRR | 60dB |
| Surge protection | 4KV |
| ESD | 8KV |
| Connectors | male BNC and terminal blocks |
| Impedance | BNC:75ohmas terminal:100ohm |
| Working Temperature | -10℃ to +70 ℃ |
| Storage Temperature | -30℃ to +70 ℃ |
| Humidity | 0to 95% |
| Dimension | 39mm*17mm*19mm |
| Material | ABS plastic |

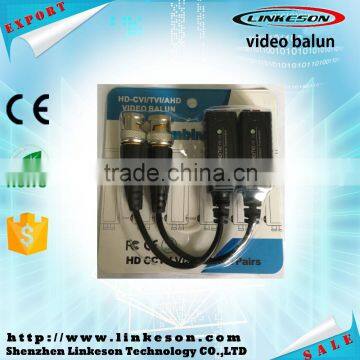

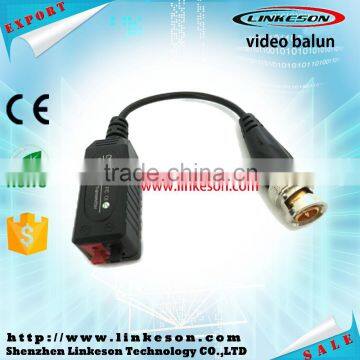

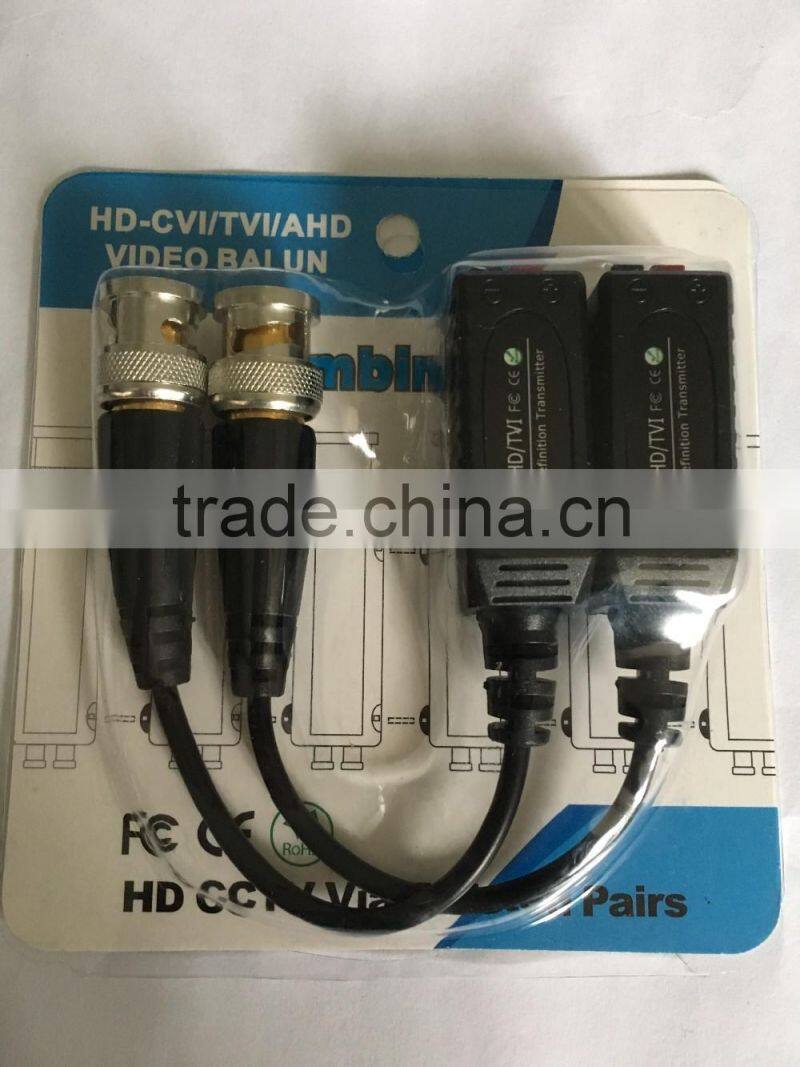

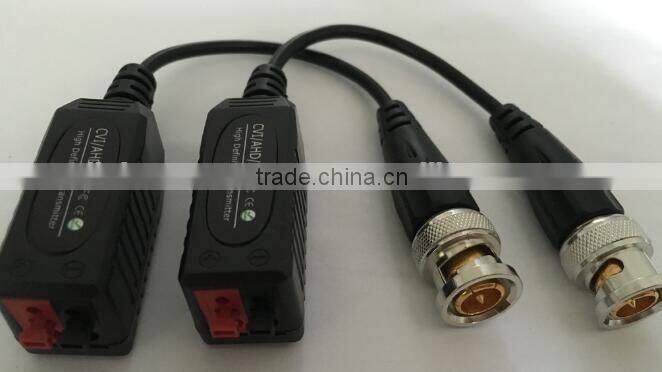

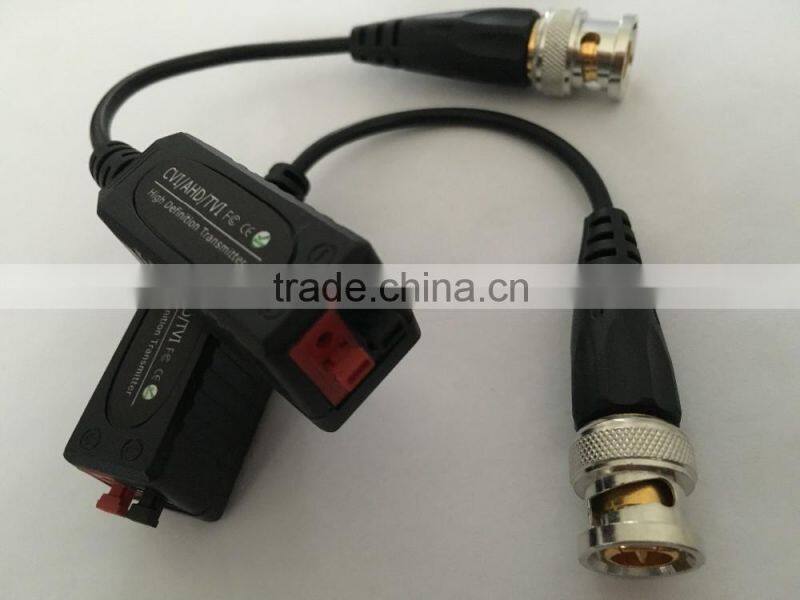

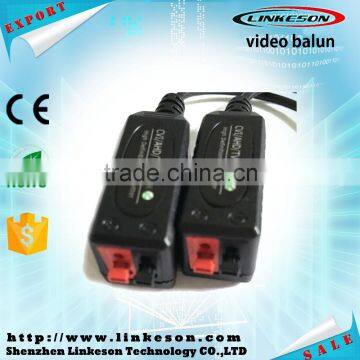

Product details show:

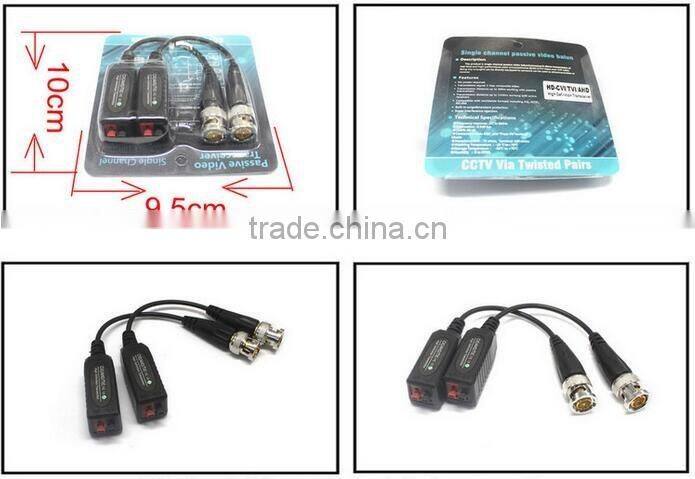

Dimension:
Extensive application:
Trade Information:
Shenzhen Linkeson Technology Co.,Ltd, is a company engaged in the RF connector R&D, production, sales, professional services in one of the professional high-tech enterprises.Our products have gained international CE,ROHS,ISO9001 certification,ODM and OEM are available.
Our Sertification:
1.Ordinary packing and Customized packing.
2.Fedex,UPS,EMS,DHL or By Sea, By Air.
1.Faster delivery:Fast delivery 3 days for sample order,5 days for formal order.
2.High warranty,strictly test by QC before shipping.
3.Customized packing and customer's logo are accepted.
4.Sample order is welcome and it can be free if you are real customer.
5.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
6.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime.
7.Strong production ablility:-Monthly output is over 600000pcs.
8.Professional factory directly sale all over the wrold.
Q:What' your MOQ?
A:500 pieces
Q:What's you pay ment?
A:Usually we accept T/T,also can accept Paypal and Western Union.
Q:What's your delivery?
A:----Via Express: Generally about 5 workdays.
---Via Air Mail: Generally about 3 workdays.
Q:What about your warranty?
A:1.We can provide 1 year warranty.
2.With CE,ROSH,FCC certificate to ensure the quality.
3.All products have been checked and packaged in good condition by QC before dispatch.
Any material, any package, any logo acceptable, free sample service, leave an inquiry to know more details about Price,Packing,Shipping and Discount.
Welcome to contact us for more details
