Hi welcome to Shenzhen Linkeson Technology Co.,LTD

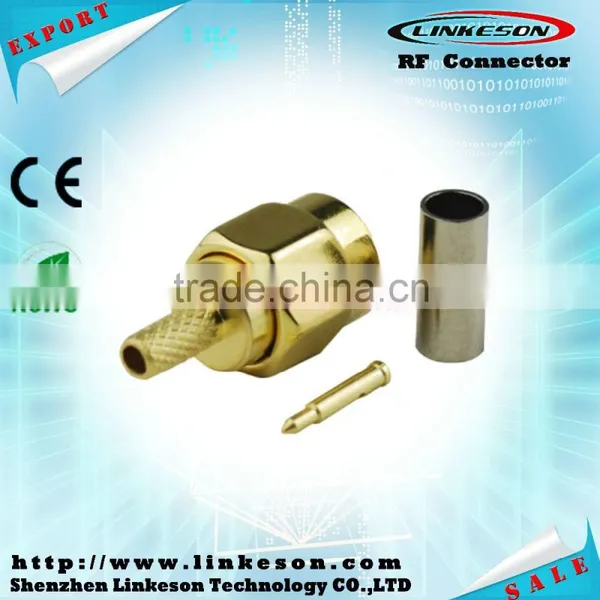

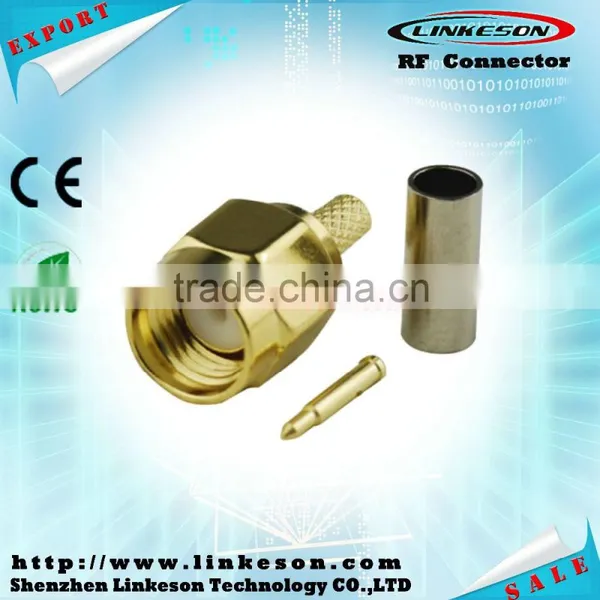

SMA male straight crimp for RG316 rg174
Series SMA are very popular thread coupling miniature coaxial connectors.Which have the excellent performances of high reliability,high mechanical strength,high durability,and optimum electrical properties, are widely used to connect RF coaxial cables for mobile communication equipments and electronic communication instruments.they are widely use in electronic instrument,communication equipment,internet system,microwave testing,cable assembly and metal plate.

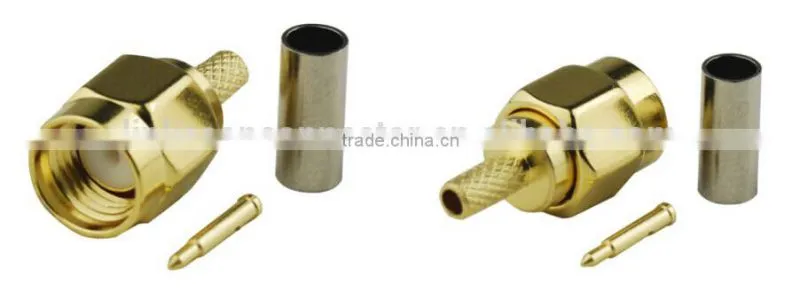

product details show:
specification:
| Key Performance | |
| Temperature range | -65℃ ~ 165℃ |
| Insulation resistance | ≥5000MΩ |
| Characteristic impedance | 50Ω |
| Dielectric Withstanding voltage | 1000V(r ms) |
| Frequency range With flexible cable | 0~12.4GHz |
| Frequency range With semi-rigid/flexible cable | 0~18GHz |
| Contact resistance Center conductor | ≤3mΩ |
| Contact resistance Outer conductor | ≤2mΩ |
| VSWR With flexible cable | ≤1.15+0.02F |
| VSWR With semi-rigid/flexible cable | ≤1.05+0.02F |
| Durability | 500 Cycles |
| Material And Plating | |
| Body | Brass , gold plated or stainless steel passivated |
| Male center contacts | Brass , gold plated |
| Female center contacts | Beryllium copper , gold plated |
| Insulators | PTFE |
| Gaskets | Silicon rubber |
| Crimp ferrules | Copper alloy , gold or nickel plated |

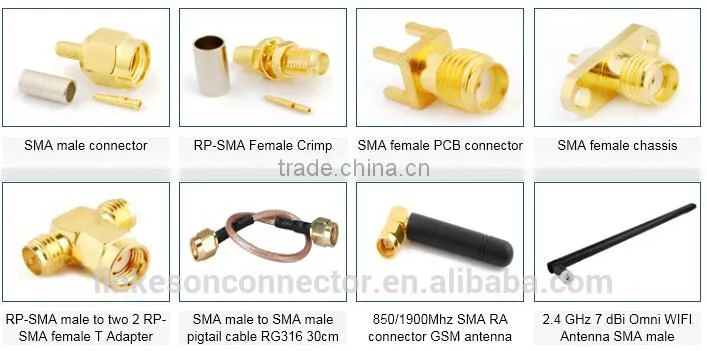

A series of other products recommended for you:
Shenzhen Linkeson Technology Co.,Ltd, is a company engaged in the RF connector R&D, production, sales, professional services in one of the professional high-tech enterprises.Our products have gained international CE,ROHS,ISO9001 certification,ODM and OEM are available.
Main Markets: North America South America Mid East Western Europe
Southern Europe Southeast Asia Northern Europe
Welcome to visit our factory
Our Advanced Equipments
Our International Certifications
1.Ordinary packing and Customized packing.
2.Fedex,UPS,EMS,DHL or By Sea, By Air.
1.Faster delivery:Fast delivery 3 days for sample order,5 days for formal order.
2.High warranty,strictly test by QC before shipping.
3.Customized packing and customer's logo are accepted.
4.Sample order is welcome and it can be free if you are real customer.
5.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
6.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime.
7.Strong production ablility:-Monthly output is over 600000pcs.
8.Professional factory directly sale all over the wrold.
Q:What' your MOQ?
A:500 pieces
Q:What's you pay ment?
A:Usually we accept T/T,also can accept Paypal and Western Union.
Q:What's your delivery?
A:----Via Express: Generally about 5 workdays.
---Via Air Mail: Generally about 3 workdays.
Q:What about your warranty?
A:1.We can provide 1 year warranty.
2.With CE,ROSH,FCC certificate to ensure the quality.
3.All products have been checked and packaged in good condition by QC before dispatch.
Any material, any package, any logo acceptable, free sample service, leave an inquiry to know more details about Price,Packing,Shipping and Discount.
Welcome to contact us for more details
Your satisfied is our target!
