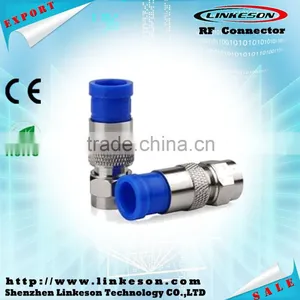

copper rg6 compression f connector
F RF connectors are the least expensive, general purpose connectors with non-constant impedance for use at 500 volts or less, and for use with low frequencies to 500Mhz. F type coaxial connectors are widely used in cable TV, MATV,CCTV and related consumer television products.
F connectors are available in a limited selection to fit various cable sizes.
Specification:
| Key Performance | |
| Temperature range | -65℃ ~ 165℃ |
| Insulation resistance | ≥1000MΩ |
| Characteristic impedance | 75Ω |
| Dielectric Withstanding voltage | 1500V(r ms) |
| Frequency range | DC~1GHz |
| Center conductor retention force | ≥0.2 N |
| Voltage Standing Wave Ratio Straight | ≤1.20 |
| Voltage Standing Wave Ratio Right angle | ≤1.30 |
| Material And Plating | |
| Body | Brass , nickel plated |
| Pin contact | Brass , gold or silver plated |
| Resilient contact | Tin bronze, gold or silver plated |
| Insulators | PTFE |
| Gaskets | Silicon rubber |
| Crimp ferrules | Copper alloy , nickel or gold plated |

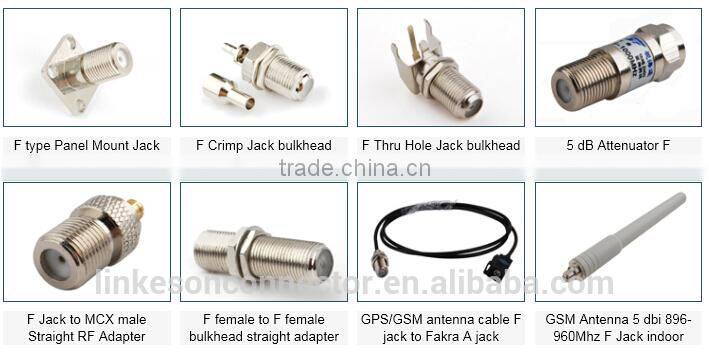

A series of other products recommended for you:
Trade information:
Shenzhen Linkeson Technology Co.,Ltd, is a company engaged in the RF connector R&D, production, sales, professional services in one of the professional high-tech enterprises.Our products have gained international CE,ROHS,ISO9001 certification,ODM and OEM are available.
Our Sertification:
1.Ordinary packing and Customized packing.
2.Fedex,UPS,EMS,DHL or By Sea, By Air.
1.Faster delivery:Fast delivery 3 days for sample order,5 days for formal order.
2.High warranty,strictly test by QC before shipping.
3.Customized packing and customer's logo are accepted.
4.Sample order is welcome and it can be free if you are real customer.
5.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
6.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime.
7.Strong production ablility:-Monthly output is over 600000pcs.
8.Professional factory directly sale all over the wrold.
Q:What' your MOQ?
A:500 pieces
Q:What's you pay ment?
A:Usually we accept T/T,also can accept Paypal and Western Union.
Q:What's your delivery?
A:----Via Express: Generally about 5 workdays.
---Via Air Mail: Generally about 3 workdays.
Q:What about your warranty?
A:1.We can provide 1 year warranty.
2.With CE,ROSH,FCC certificate to ensure the quality.
3.All products have been checked and packaged in good condition by QC before dispatch.
Any material, any package, any logo acceptable, free sample service, leave an inquiry to know more details about Price,Packing,Shipping and Discount.
Welcome to contact us for more details , look forward to your order.
Your satisfied is our target!
