Hi welcome to our page
Shenzhen Linkeson Technology Co.,LTD
rf coaixal BNC

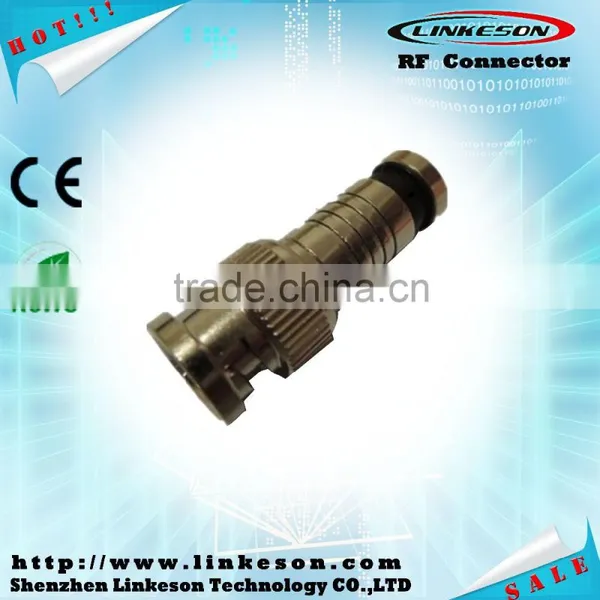

Factory rf coaixal BNC male for RG58 RG59
| Key Performance | |
| Temperature range | -65℃ ~ 165℃ |
| Insulation resistance | ≥5000MΩ |
| Characteristic impedance | 50Ω/75Ω |
| Dielectric Withstanding voltage | 750V(r ms) |
| Frequency range(50Ω) | 0~4GHz(50Ω) |
| Frequency range (75Ω) | 0~2GHz(75Ω) |
| VSWR | ≤1.30 |
| Voltage rating | 500V(r ms) |
| Disengage force | ≥0.6N |
| Contact resistance Center conductor | ≤1.5mΩ |
| Contact resistance Outer conductor | ≤1mΩ |
| Durability | 500 Cycles |
| Material And Plating | |
| Material And Plating | Brass , nickel plated |
| Male center contacts | Brass , gold plated |
| Female center contacts | Beryllium copper or phosphor bronze , gold plated |
| Insulators | PTFE |
| Gaskets | Beryllium copper , gold plated |
| Crimp ferrules | Copper alloy , gold or nickel plated |
rf coaixal BNC
1.Fedex,UPS,EMS,DHL or By Sea, By Air
2.Sample:3 working days
3.Order: 5 working days
4.Certifications-CE/ROHS/Reach,ISO9001:2008
rf coaixal BNC
Our advantages:
1. Faster delivery: 5 workdays.
2. Customized packing and customer's logo are accepted.
3. Sample order is welcome and it can be free if you are real customer.
4. Accept various transportation ways. like by express, by sea, by air and also specified freight company.
5. Professional factory directly sale all over the wrold.
rf coaixal BNC
To know more about us:
1.Fast delivery 3 days for sample order,5 days for formal order
2.High warranty,strictly test by QC before shipping
3.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime
4.Certifications-CE/ROHS/Reach,ISO9001:2008
5.Strong production ablility:-Monthly output is over 600000pcs
6.High quality and low price
rf coaixal BNC
Any material, any package, any logo acceptabe, free sample service, leave an inquiry to know more details about Price,Packing,Shipping and Discount.
