BNC Female to SMA Male Adapter
- Shanghai or Shenzhen
- T/T Money Gram Credit Card
You May Like
-
Manufacture BNC Female to RCA Male for AV TV Connector
-
Linkeson BNC Female to SMA Male RF Adapter
-
Monitering Camera BNC Female to BNC Female RF Adapter
-
(linkeson ) F-CONNECTOR TO MALE COAX TV PLUG ADAPTER
-
(linkeson )MCX Male to IEC DVB-T TV Female Jack Connector RTL2832U R820T Tuner
-
(low Price) CAT5 to CCTV Coaxial Camere BNC Male Video Balun Connector
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Linkeson, Linkeson | |
| Model Number | RF Connector | Type | Adapter | |
| Application | Other, RF, RF | Gender | Male |
Product Description
BNC Female to SMA Male Adapter
SMA to BNC adapters category has 10 part numbers, the majority are RoHS and REACH compliant. 50 Ohm impedance SMA to BNC adapters are part of a comprehensive adapter product line from Gwave. Our company offers SMA to BNC adapters in standard or high performance designs. Our SMA to BNC adapter connectors are built to precise RF and microwave industry specifications.
Different SMA to BNC adapter gender versions are possible in this product line. SMA to BNC adapters are constructed in female to female, female to male, male to female or male to male gender varieties. The SMA to BNC adapters category includes bulkhead or mountless configurations.
Specification:
| Key Performance | |
| Temperature range | -65℃ ~ 165℃ |
| Insulation resistance | ≥5000MΩ |
| Characteristic impedance | 50Ω/75Ω |
| Dielectric Withstanding voltage | 750V(r ms) |
| Frequency range(50Ω) | 0~4GHz(50Ω) |
| Frequency range (75Ω) | 0~2GHz(75Ω) |
| VSWR | ≤1.30 |
| Voltage rating | 500V(r ms) |
| Disengage force | ≥0.6N |
| Contact resistance Center conductor | ≤1.5mΩ |
| Contact resistance Outer conductor | ≤1mΩ |
| Durability | 500 Cycles |
| Material And Plating | |
| Material And Plating | Brass , nickel plated |
| Male center contacts | Brass , gold plated |
| Female center contacts | Beryllium copper or phosphor bronze , gold plated |
| Insulators | PTFE |
| Gaskets | Beryllium copper , gold plated |
| Crimp ferrules | Copper alloy , gold or nickel plated |

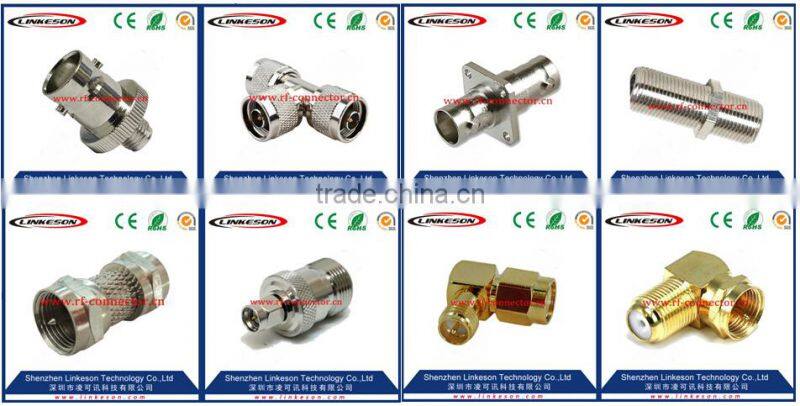

A series of other products recommended for you:
Trade information:
Shenzhen Linkeson Technology Co.,Ltd, is a company engaged in the RF connector R&D, production, sales, professional services in one of the professional high-tech enterprises.Our products have gained international CE,ROHS,ISO9001 certification,ODM and OEM are available.
Our Sertification:
1.Ordinary packing and Customized packing.
2.Fedex,UPS,EMS,DHL or By Sea, By Air.
1.Faster delivery:Fast delivery 3 days for sample order,5 days for formal order.
2.High warranty,strictly test by QC before shipping.
3.Customized packing and customer's logo are accepted.
4.Sample order is welcome and it can be free if you are real customer.
5.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
6.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime.
7.Strong production ablility:-Monthly output is over 600000pcs.
8.Professional factory directly sale all over the wrold.
Q:What' your MOQ?
A:500 pieces
Q:What's you pay ment?
A:Usually we accept T/T,also can accept Paypal and Western Union.
Q:What's your delivery?
A:----Via Express: Generally about 5 workdays.
---Via Air Mail: Generally about 3 workdays.
Q:What about your warranty?
A:1.We can provide 1 year warranty.
2.With CE,ROSH,FCC certificate to ensure the quality.
3.All products have been checked and packaged in good condition by QC before dispatch
Any material, any package, any logo acceptable, free sample service, leave an inquiry to know more details about Price,Packing,Shipping and Discount.
Welcome to contact us for more details , look forward to your order
Your satisfied is our target!
