China Manufacturer Titanium Heat Exchange Tube

Specifications

China Manufacturer Titanium Heat Exchange Tube

Specifications
Welded stainless steel round pipes and tubes
1. OD: 12.7mm~2200mm 1/2" - 60
2. WT: 0.5mm~30mm
3. Material:
4. Material
Stainless steel ( 904L 926 316L 316H 317L 310S 321)
Super duplex steel (S31803, S32205, S32750, S32760, S32507)
Titanium & Alloy (Gr1, Gr2, Gr3, Gr7, Gr12, Gr5)
Nickel
Ni200, Ni201, Monel400/K500, Inconel 600/625,
Incolloy800/800H/825)
Hastelloy C-276, C-4, C-2000, C-22
Hastelloy -2/3, Hastelloy G, Alloy 20
Zirconium & Alloy
R60702, R60705
Tantalum & Alloy
Ta1, Ta2

4. TIG, PLAS
Specifications
Welded stainless steel round pipes and tubes
1. OD: 12.7mm~2200mm
2. WT: 0.5mm~30mm
3. Material: 201, 304, 316L, 309S,
4. TIG, PLASMA

Application: Heat exchanger, boiler, condenser, pressure vessel

1) Standard: ASTM A249, ASTM A312 / DIN17457
2) Outside diameter: 12.7mm - 273mm
3) Wall thickness: 0.5mm - 3.0mm
4) Material: Stainless steel, Titan, Ni, Zirco, Tanta etc
5) Surface: Bright anneal
6) Test: Eddy current / hydrostatic
7) Packing: Each in a plastic bag, then bundle with knitted plastic bag / wooden box

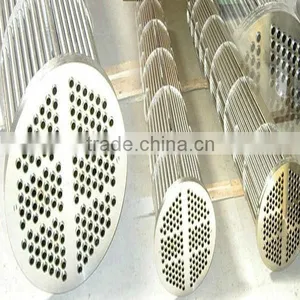

Tube sizes are available from 5/8" O. D. To 1-1/2" O. D.
Tube sheets are drilled, reamed, and double serrated according to specifications. Tube to tube sheet joints are roll expanded, obtaining proper tube wall reduction. Seal and strength welded joints are available through the TIG welding process.

Application:

• Heat Exchangers & Pressure Vessels

• Power Plants

• Pharmaceutical industry

• Chemical industry

• Petroleum Refineries

• Food Processing Plants

• Nuclear Industries

• Ship Building

• Offshore Industry

• Oil & Gas




Features:

• Superior Resistance

• High Endurance

• Static Pressure

• Corrosion resistant

• Strong & Tough Construction

• Durable

• Resistant to climatic extremities

• Complies to international quality standards
