Help CenterChina Factory Manufacturing Hastelloy G-30 Bend Pipe
Related Products
-
China High Quality Duplex Stainless Steel PipeUS$ 10 - 1,000MOQ: 1 Ton -
Hastelloy G-2 Nickel-Base Alloys PipeNegotiableMOQ: 1 Ton
-
China Excellent Super Hastelloy B2 Pipes ManufacturerNegotiableMOQ: 1 Ton
-
High Quality UNS N10675 Hastelloy Alloy B-3 PipeNegotiableMOQ: 1 Ton
-
China Manufacturer Alloy N08367 AL-6XN PipeNegotiableMOQ: 1 Ton
Specifications

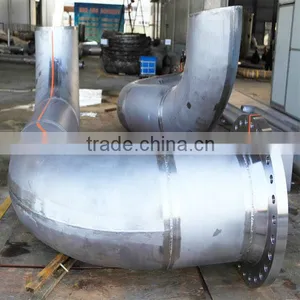

China Factory Manufacturing Hastelloy G-30 Bend PipeOD
DN15-DN2400 1/8" - 82"
Wall thickness
0.2mm-35mm SCH5S - SCH160
China Factory Hastelloy G-30 Bend Pipe
SIZE
OD
DN15-DN2400 1/8" - 82"
Wall thickness
0.2mm-35mm SCH5S - SCH160
Max length
As your requirements
Materials
Stainless steel ( 904L 926 316L 316H 317L 310S 321)
Super duplex steel (S31803, S32205, S32750, S32760, S32507)
Titanium & Alloy (Gr1, Gr2, Gr3, Gr7, Gr12, Gr5)
Nickel
Ni200, Ni201, Monel400/K500, Inconel 600/625,
Incolloy800/800H/825)
Hastelloy C-276, C-4, C-2000, C-22
Hastelloy -2/3, Hastelloy G, Alloy 20
Zirconium & Alloy
R60702, R60705
Tantalum & Alloy
Ta1, Ta2
Minimum order
1 Ton
FOB Price
The latest price
Surface
Polish, primary colour, matt, mirror face, wire drawing
Productions requirement
Cold drawing, cold rolling, precision rolling
Main markets
Asia, Europe, Middle-east area, Africa, South/North America
Certification
ISO
Standard
GB5310-95; GB9948-88; DIN17175-79; JISG3467-88; JISG3458-88; ASTM; ASME
Grade
Alloy 200/Nickel 200; Alloy 201/Nickel 201; Alloy 400/Monel 400;
Alloy K-500/Monel K-500; Alloy 600/Inconel 600; Alloy 625/Inconel 625;
Alloy 800/Incoloy 800; Alloy 800H/Incoloy 800H; Alloy 800HT/Incoloy 800HT;
Alloy 825; Alloy C-276; Alloy C-4; Alloy C-22; Hastelloy C-276; Alloy B
Characteristic as below
1. Excellent corrosion resistance to most of corrosion media in oxidation and reduction environments.
2. Excellent resist pitting, crevice corrosion and stress corrosion cracking performance.
Hastelloy G-30
HASTELLOY G-30 is a high chromium nickel based alloy resistant to a range of complex acid mixtures. The resistance of this alloy to grain boundary precipitates in the weld heat affected zone makes it suitable for use in the as-welded condition.
Specifications
ASME SB 581, ASME SB 582
ASME SB 619, ASME SB 619 Class I or II, ASME SB 622, ASME SB 626, ASME SFA 5.11 (ENiCrMo-11)
ASTM A5.11 (ENiCrMo-11)
ASTM B 581
ASTM B 582
ASTM B 619, ASTM B 619 Class I or III, ASTM B 622, ASTM B 626
ASTM CWSA 5.14 (ERNiCrMo-11)
NACE MR0175
UNS N06030
W. Nr. /EN 2.4600
| UNS | N06030 |
| Chemical composition | Ni:43.0 min,Mo:4.0-6.0,Cr:28,W:1.5-4.0,Fe:13.0-17.0,Co:5.0 max,Cu:1.0-2.4, Mn:1.50 max., ,Si:0.8 max,C:0.03 max ,Cb:1.5 max, P:0.04 max ,S:0.02 max |
| Mechanical performance | tensile strength:689 Mpa |
| yield strength:317Mpa | |
| elongation:60% |
Features
Resists reducing acids such as phosphoric and sulfuric
Resistant to complex environments containing oxidizing acids
Usable in the as - welded condition
Applications
Phosphoric acid manufacture
Sulfuric acid manufacture
Oxidizing acid mixtures
Petrochemicals
Fertilizer manufacture
Pesticide manufacture
Pickling racks for stainless steel
About Us
Nanjing Maici Titanium Industry Co., Ltd established in 2004 with the fixed assets of 80 million yuan and more than 120nos of existing staff. Maici is located in Nanjing Jiangning Airport Industrial Park, covers an area of 18, 000 square meters.
Maici is a private joint-stock high-tech enterprise, specialized in design, manufacture and installation oftitanium, nickel, zirconium, tantalum and high grade stainless steel and other special materials pressure pipelines, chemical equipment and non-standard pipe fittings including which special material pressure pipeline is in the domestic leading level from the processing capacity to the marketing scale
Factory Show
Equipment Show
Certificates Show
Project Show
