Specifications
Made in China Alkali Titanium Pipe Assembly1. Standard: ASTM B338/B861/862
2. Material: Gr1, Gr2, Gr5, Gr7, Gr9

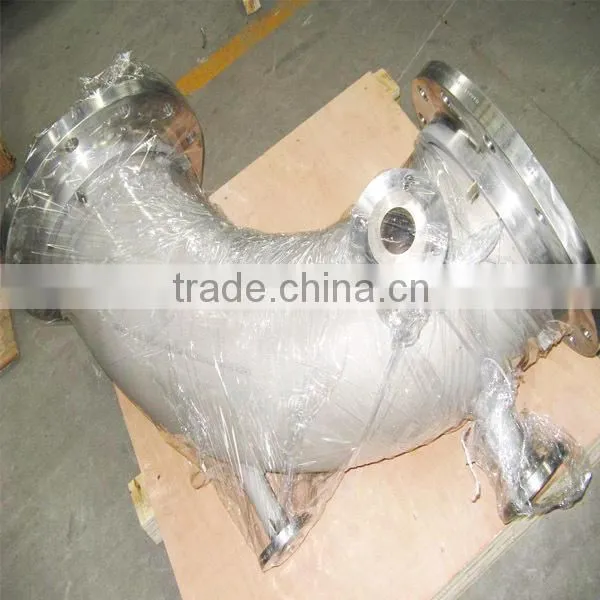

Made In China Alkali Titanium Pipe Assembly
Specifications
ASTM B861 Gr2 Titanium pipe:
Wall Thickness: 0.5~40mm
Outer Diameter: 5~2000mm 5"-72"
ASTM B861 Gr2 Titanium pipe:
Specifications
1. Standard: ASTM B338/B861/862
2. Material: Gr1, Gr2, Gr5, Gr7, Gr9
3. O. D: (5~2000) * W/T(0.5~45)mm
4. Professional Tech Support
1. Titanium Pipe, Titanium Tube
Item name
Titanium Pipe
Standard
ASTM B337, ASTM B338, ASTM B861, ASTM B862
Material
Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, G9, Gr12, Gr23
Length
Can be customized
Application
Chemical processing, Oil and chemicals, medical industry etc
Packaging
Plywood case lined with foam or as per clients requirements
Payment
T/T in advance or Irrevocable L/C at sight
MOQ
20Kg
Leadtime
Within 15~20 days based on MOQ after deposit
Characteristic1 Rustproof and corrosion resistance
Characteristic2Lower life-cycle costs
Characteristic3Lower maintenance and repair costs
Characteristic4More lighter than other metals
Characteristic5Higher strength to weight ratio
Characteristic6Longer service life
| Grade | Main Chemical Constituent % | impurity content ≤% | |||||||||||
| Ti | Al | V | Mo | Ni | Pd | Fe | C | N | H | O | residual elements | ||
| single | total | ||||||||||||
| Gr1 | Remainder | _ | _ | _ | _ | _ | 0.20 | 0.08 | 0.03 | 0.01 | 0.18 | 0.10 | 0.40 |
| Gr2 | Remainder | _ | _ | _ | _ | _ | 0.30 | 0.08 | 0.03 | 0.01 | 0.25 | 0.10 | 0.40 |
| Gr3 | Remainder | _ | _ | _ | _ | _ | 0.30 | 0.08 | 0.05 | 0.01 | 0.35 | 0.10 | 0.40 |
| Gr4 | Remainder | _ | _ | _ | _ | _ | 0.50 | 0.08 | 0.05 | 0.01 | 0.40 | 0.10 | 0.40 |
| Gr5 | Remainder | 5.5~6.75 | 3.5~4.5 | _ | _ | _ | 0.40 | 0.08 | 0.05 | 0.01 | 0.20 | 0.10 | 0.40 |
| Gr7 | Remainder | _ | _ | _ | _ | 0.12~0.25 | 0.30 | 0.08 | 0.03 | 0.01 | 0.25 | 0.10 | 0.40 |
| Gr9 | Remainder | 2.5~3.5 | 2.0~3.0 | _ | _ | _ | 0.25 | 0.08 | 0.03 | 0.01 | 0.15 | 0.10 | 0.40 |
| Gr12 | Remainder | _ | _ | 0.2~0.4 | 0.6~0.9 | _ | 0.30 | 0.08 | 0.03 | 0.01 | 0.25 | 0.10 | 0.40 |
Application
1) Aerospace
2) Navigation & seawaterdesalination
3) Military
4) Medical
5) Chemical Industry & Petrochemical
6) Electrolysis & Electroplating
Quality Guarantee
(1) We have a Professional quality inspection team and advanced testing equipment.
(2) 100% Ultrasonic testing.
(3) Supply the third party chemical composition and mechanical property testing report.
Our Advantages
1. All products are made of high-quality imported raw materials
2. Our Products are certified by ISO9001: 2008 authentication quality systems
3. We are nominated as the AAA enterprise by Jiangsu govement
4. Quick Response to Your Enquiry
5. We can accepted small Orders.
6. We can offer high quality with good price
7. So fa our products are exported to many contries, such as the United States, Canada, Japan Europen Countries, South Korea and South East Asia.
8. We have the most advance maching and testing Faclity.
9. We can offer high quality wiith good price.
About Us
Nanjing Maici Titanium Industry Co., Ltd established in 2004 with the fixed assets of 80 million yuan and more than 120nos of existing staff. Maici is located in Nanjing Jiangning Airport Industrial Park, covers an area of 18,000 square meters.
Maici is a private joint-stock high-tech enterprise, specialized in design, manufacture and installation oftitanium, nickel, zirconium, tantalum and high grade stainless steel and other special materials pressure pipelines, chemical equipment and non-standard pipe fittings including which special material pressure pipeline is in the domestic leading level from the processing capacity to the marketing scale
Factory Show
Equipment Show
Certificates Show
Project Show
