Specifications
Welded Titanium Tubes for Chlor- Alkali Chemical IndustryOD: 2.0-219mm
WT: 0.3-12mm
Length: <= 18000mm

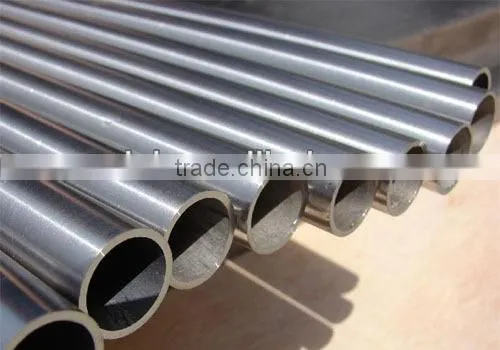

Welded Titanium Tubes for Chlor- Alkali Chemical Industry
1.Specification and Size for Seamless titanium tubes
Material-- GR2—has moderate strength with excellent cold formability, weldability. This titanium also has excellent resistance to high oxidization.
Standard: ASTM B338/ASME SB338 ASTM B861/ASME SB861
OD: 2.0-219mm
WT: 0.3-12mm
Length: ≤ 18000mm
2.Specification and Size for Weld tubes
Material ---GR2
Standard: ASTM B338/ASME SB338 ASTM B861/ASME SB861
OD: as customer requirement.
WT: 1.65~12.7mm
Length: ≤18000mm
3.Chemical Analysis Of CP Titanium Grade 2
4. Normal Size
OD25*WT1.0*4000mm
OD24.2*WT2.4*1000mm
OD15.88*WT0.55*5000mm
5. Application
Heat exchangers and condensers
All kinds of corrosive fluid transmission pipeline system
Titanium bicycle tube, automobile exhaust pipe
Off shore aquaculture
6. Featrues of the product
Low Density and High Specificate Strength
Excellent Corrosion Resistance
Good resistance to effect of heat
Excellent Bearing to cryogenic property
Nonmagnetic and Non-toxic
Good thermal properties
7.Other Materials we can supply--- GR1, GR3, GR5, GR7, GR9, GR11,GR12, GR16,GR17.
GR1—Ti Grade 1 is the softest titanium with the highest ductility, good cold formability which gives Gr1 an excellent resistance from mild to high oxidization.
GR5—Ti Grade 5 has very high strength but relatively low dectility. The main application of this alloy is in aircraft and spacecraft. Offshore use is growing. The alloy is weldable and can be precipitation hardened.
GR7---Ti Grade 7, most corrosion-resistant titanium alloy offering outstanding resistance to general and localized crevice corrosion in a wide range of oxidizing and reducing acid enviroments including chlorides, with a good balance of moderate strength, reasonable ductility and excellent weldability. Physical and mechanical properties equivalent to Grade 2.
GR9---Ti Grade 9 is sometimes referred to as "half 6-4". It offers 10~50%higher strength than C.P. grades but is more formable and weldable than Ti-6Al-4V. Gr9 combines strength, weldability and formability. The alloy has excellent formability plus higher tensile strength than the strongest unalloyed grade.
GR12—Ti Grade 12 is highly weldable, exhibiting improved strength allowable at increased temperatures, combined with superior crevice corrosion resistance, and excellent resistance under oxidizing to mildly reducing conditions, especially chlorides.
GR16---Ti Grade 16 is corrosion-resistant material offering outstanding resistance to general and localized crevice corrosion in a wide range of oxidizing and reducing acid environments including chlorides. Has a good balance of moderate strength, reasonable ductility and excellent weldability.
