Specifications
China Flange1)size:1/2"-80"
2)pressure:pn16-pn40
3)Standard:ANSI,JIS,DIN,BS,etc
4)Type:asme b16.48

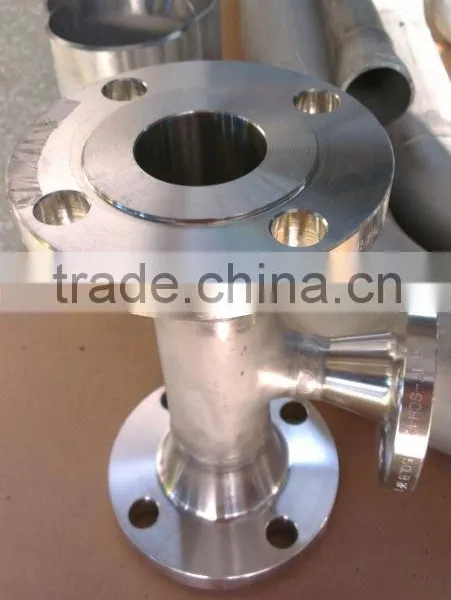

China Manfucture Forged Titanium Flange
1. Description
| products | Titanium Flange |
| Material Grade | Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9, Gr23, TI-6Al4v, Ti6Al4V Eli |
| Certification | ISO9001:2008 |
| Standard | ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5 |
| size | 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) |
| Pressure Clase | PN0.25~32Mpa |
| (DIN) PN6,PN10,PN16,PN25 though PN250 | |
| 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB | |
| Technique | Forged and CNC Machined |
| type | WNRF , SORF , BLIND ,SW, PL |
| Flange surface | FF,RF,TG,RJ etc |
| Application | used in cars, glasses,medical equipment , electronics , petrochemical equ ipment |
| Advantage | 1. Long service life |
| 2. corrosion -resistant | |
| 3.hign yeiled strenth and tensile strength. |
2. Chemical requirements
|
N |
C |
H |
Fe |
O |
Al |
V |
Pd |
Mo |
Ni |
Ti |
Gr |
0.03 |
0.08 |
0.015 |
0.20 |
0.18 |
/ |
/ |
/ |
/ |
/ |
bal |
Gr 2 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
/ |
/ |
bal |
Gr 5 |
0.05 |
0.08 |
0.015 |
0.40 |
0.20 |
5.5~6.75 |
3.5~4.5 |
/ |
/ |
/ |
bal |
Gr 7 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
0.12~0.25 |
/ |
/ |
bal |
Gr 9 |
0.03 |
0.08 |
0.015 |
0.25 |
0.15 |
2.5~3.5 |
2.0~3.0 |
/ |
/ |
/ |
bal |
Gr12 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
0.2~0.4 |
0.6~0.9 |
bal |
3. Tensile requirements
grade |
Tensile strength(min) |
Yeild strength(min) |
Elongation(%) |
||
ksi |
MPa |
ksi |
MPa |
||
1 |
35 |
240 |
20 |
138 |
24 |
2 |
50 |
345 |
40 |
275 |
20 |
5 |
130 |
895 |
120 |
828 |
10 |
7 |
50 |
345 |
40 |
275 |
20 |
9 |
90 |
620 |
70 |
438 |
15 |
12 |
70 |
438 |
50 |
345 |
18 |
|
4.Product Description
|
|
|||||||||||||||
|
5. Available Flange types
|
6.Service
| a.We can make quotation to customer within 24 days | |
| b.We can advise the production and delivery status to customer at any time | |
| c. We promise we'll replace the materials for the same at our cost if quality problem occurred | |
| d. Test: quality certificate according to EN10204.3.1 , | |
| can Provide Bao Ti Center Physical and Chemical Test Report or Northwest Institute For Non -ferrous Metal Research Test Report if necessary |
7.Our Advantages
1. All products are made of high-quality imported raw materials
2. Our Products are certified by ISO9001:2008 authentication quality systems
3. We are nominated as the AAA enterprise by Jiangsu govement
4. Quick Response to Your Enquiry
5. We can accepted small Orders.
6. We can offer high quality with good price
7. So fa our products are exported to many contries ,such as the United States,Canada,Japan Europen Countries,South Korea and South East Asia .
8. We have the most advance maching and testing Faclity .
9. We can offer high quality wiith good price.
Looking forward to building up business relationship with you
Welcome to your enquire at any time !!!
Factory Photo
Equipment Capacity
Enterprise Certification
Packing and Loading
Engineering Corperation
We Offer:
1. Cost control-manufacturing and exporting by ourselves;
2. Competitive price-without middlemen;
3. Quality guarantee-SGS, Mill Test Certificate, other test as ordered;
4. On-time delivery-30 tons production capability per month and developed logistics;
5. Competitive payment method-different and flexible payment method (full L/C, 20%-70%-10%......)
Applications:
Industry field, aerospace, architectural, automotive, biomedical, chemical processing, marine, military, oil, tooling, racing.
(1)Heat exchangers and condensers
(2)All kinds of corrosive fluid transmission pipeline system
(3)Titanium bicycle pipe, automobile exhaust pip
(4)Offshore aquaculture
Our Advantage:
First-class product,Reasonable price,The fastest delivery
Test:
Final product test: Ultrasonic test, Eddy current test, Hydraulic test, Bend test, Flaring test and so on.Third party inspection is acceptable
Welcome to our factory and contact us at any time !!!
