Square Wire Mesh

Material:Galvanized iron wire, or stainless steel wire

Property: Square Wire Mesh is made of selected low carbon iron wire with precision construction,uniform mesh, fine rust-resisting and durable function.

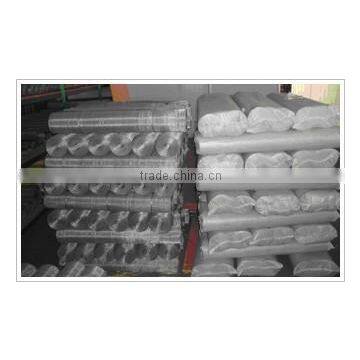

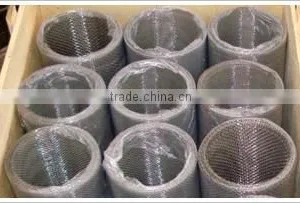

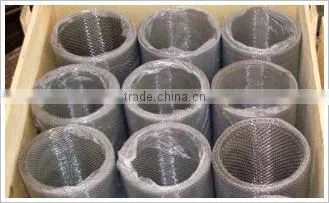

Packing:In rolls,wrapped with waterproof paper then covered with hessian-cloth. Special packing may be arranged if necessary.

Uses: Square Wire Mesh is widely used in industries and constructions to sieve grain powder,filter liquid and gas,for other purposes like safe guards on machinery enclosures. Besides,it is widely applied for the substitute of wood strips in making wall and ceiling.

Specifications: Please refer to lists below for reference. Sizes not listed available at customers request.

Assortments available:
<1>Crimped square wire mesh
<2>Standard square wire mesh
<3>Hot-dipped galvanized after woven square wire mesh
<4>Galvanized after woven square wire mesh
<5>Galvanized before woven square wire mesh
<6> Iron Square Wire Mesh

mesh

wire diameter (mm)

opening (mm)

mesh

wire diameter (mm)

opening (mm)

3x3

1.60

6.87

20x20

0.27

1.00

4x4

1.20

5.15

22x22

0.25

0.90

5x5

0.95

4.13

24x24

0.23

0.83

6x6

0.80

3.43

26x26

0.20

0.78

8x8

0.60

2.57

28x28

0.18

0.73

10x10

0.50

2.04

30x30

0.15

0.70

12x12

0.50

1.61

35x35

0.14

0.59

14x14

0.40

1.41

40x40

0.14

0.50

16x16

0.35

1.24

50x50

0.12

0.39

18x18

0.30

1.11

60x60

0.12

0.30
