Product Description



Stainless Steel Wire Mesh Square Opening



Our company is the major manufacturer of stainless steel wire mesh of China, especially known as its best quality and excellent reputation. Stainless steel wire mesh square opening is in contrast with stainless steel wire mesh Dutch woven.



Varieties of Stainless Steel Wire Mesh Square Opening:



Stainless Steel Square Wire Mesh produced by us is classified into two types according to the weaving patterns:



Stainless steel square wire mesh plain woven



Stainless steel square wire mesh twill woven



Stainless Steel Wire Mesh Plain weave is the most commonly used weave. Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.

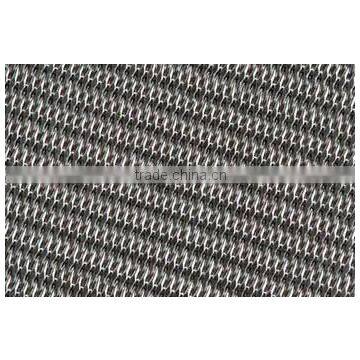

Twill Weave Stainless Steel Wire Mesh is made by each weft wire passing alternately over two, and then under two successive warp wires and each warp wire passing alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.



Stainless Steel Square Wire Mesh Varieties according to materials:







Stainless steel square wire mesh type 304



Stainless steel square wire mesh type 304L



Stainless steel square wire mesh type 316



Stainless steel square wire mesh type 316L







Stainless Steel Square Wire Mesh Uses: Stainless steel wire mesh and stainless steel wire cloth products are widely used in petroleum, chemical industry, environment protection, mine, airspace, paper-making, electronic, metallurgy etc. Special size and specification are available according to customers' requirement.







Stainless Steel Square Wire Mesh Sizes:
Standard roll width of stainless steel square wire mesh: 1m to 48"
Standard roll length of stainless steel square wire mesh: 30m to 100



Mesh/Inch

Wire Diameter

Aperture

Open Area

Weight(LB) /100 Square Foot

Inch

MM

Inch

MM

1x1

.080

2.03

.920

23.37

84.6

41.1

2X2

.063

1.60

.437

11.10

76.4

51.2

3X3

.054

1.37

.279

7.09

70.1

56.7

4X4

.063

1.60

.187

4.75

56.0

104.8

4X4

.047

1.19

.203

5.16

65.9

57.6

5X5

.041

1.04

.159

4.04

63.2

54.9

6X6

.035

.89

.132

3.35

62.7

48.1

8X8

.028

.71

.097

2.46

60.2

41.1

10X10

.025

.64

.075

1.91

56.3

41.2

10X10

.020

.51

.080

2.03

64.0

26.1

12X12

.023

.584

.060

1.52

51.8

42.2

12X12

.020

.508

.063

1.60

57.2

31.6

14X14

.023

.584

.048

1.22

45.2

49.8

14X14

.020

.508

.051

1.30

51.0

37.2

16X16

.018

.457

.0445

1.13

50.7

34.5

18X18

.017

.432

.0386

.98

48.3

34.8

20X20

.020

.508

.0300

.76

36.0

55.2

20X20

.016

.406

.0340

.86

46.2

34.4

24X24

.014

.356

.0277

.70

44.2

31.8

30X30

.013

.330

.0203

.52

37.1

34.8

30X30

.012

.305

.0213

.54

40.8

29.4

30X30

.009

.229

.0243

.62

53.1

16.1

35X35

.011

.279

.0176

.45

37.9

29.0

40X40

.010

.254

.0150

.38

36.0

27.6

50X50

.009

.229

.0110

.28

30.3

28.4

50X50

.008

.203

.0120

.31

36.0

22.1

60X60

.0075

.191

.0092

.23

30.5

23.7

60X60

.007

.178

.0097

.25

33.9

20.4

70X70

.0065

.165

.0078

.20

29.8

20.8

80X80

.0065

.165

.0060

.15

23.0

23.2

80X80

.0055

.140

.0070

.18

31.4

16.9

90X90

.005

.127

.0061

.16

30.1

15.8

100X100

.0045

.114

.0055

.14

30.3

14.2

100X100

.004

.102

.0060

.15

36.0

11.0

100X100

.0035

.089

.0065

.17

42.3

8.3

110X110

.0040

.1016

.0051

.1295

30.7

12.4

120X120

.0037

.0940

.0064

.1168

30.7

11.6

150X150

.0026

.0660

.0041

.1041

37.4

7.1

160X160

.0025

.0635

.0038

.0965

36.4

5.94

180X180

.0023

.0584

.0033

.0838

34.7

6.7

200X200

.0021

.0533

.0029

.0737

33.6

6.2

250X250

.0016

.0406

.0024

.0610

36.0

4.4

270X270

.0016

.0406

.0021

.0533

32.2

4.7

300X300

.0051

.0381

.0018

.0457

29.7

3.04

325X325

.0014

.0356

.0017

.0432

30.0

4.40

400X400

.0010

.0254

.0015

.370

36.0

3.3

500X500

.0010

.0254

.0010

.0254

25.0

3.8

635X635

.0008

.0203

.0008

.0203

25.0

2.63
