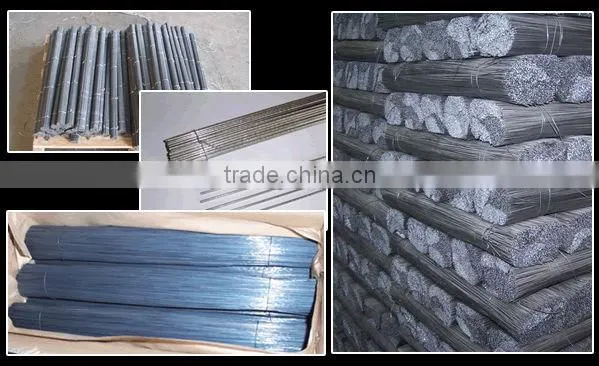

cut wire/hanger wire/straight cut wire(manufacturer&factory)

Specifications

1.straight cutting wire,black,galvanized or pvc coated
2.gi straight cutting wire,length selectable
3.gi iron wire,cut wire

Cut wire



1.Material: high quality low carbon steel Q195



2. The wire diameter: from BWG35 to BWG6 (0.2mm - 5.0mm)



3. The general weight : 25kg/50kg/coil (or in according to your requirement 0.5kg- 200kg/roll)



4. The packing: plastic inside and hessian/woven outside (or in according to your requirement)



5.Tensile strength: 350---550N/mm2



6. Zinc coating: 10 - 30g/m2



7.Technical information: Processing with low carbon steel wire, throught drawing and galvanizing.



8.Characteristic&Applications: High zinc coating with super corrosion resistance, firmed and well-proportioned zinc Coating, slippery surface, used in construction, express way fencing, binding of flowers and wire mesh weaving.



galvanized binding wire
Wire Gauge	SWG(mm)	BWG(mm)	Wire Gauge	SWG(mm)	BWG(mm)
6	4.877	5.156	20	0.914	0.889
7	4.47	4.572	21	0.813	0.813
8	4.064	4.191	22	0.711	0.711
9	3.658	3.759	23	0.61	0.635
10	3.251	3.404	24	0.559	0.559
11	2.946	3.048	25	0.508	0.508
12	2.642	2.796	26	0.475	0.475
13	2.337	2.413	27	0.417	0.406
14	2.032	2.108	28	0.376	0.356
15	1.829	1.829	29	0.345	0.33
16	1.626	1.651	30	0.315	0.305
17	1.422	1.473	31	0.295	0.254
18	1.219	1.245	32	0.274	0.229
19	1.016	1.067	33	0.254	0.203
