2 Ton Electric Powered Pallet Stacker
Our factory is a 9 years' professional customized manufacturer
Product Description
Our semi electric pallet stacker has passed the CE certification and is mainly applied in petroleum, chemical engineering, pharmacy, light textile, military engineering, painting, coal, port, railroad, warehouse, bridge back, etc. for load and unload, pile and move.
1.This semi electric pallet stacker adopts double mast and chain driving technology.
2.semi electric pallet stacker controlling system is programmable based on the imported advanced foreign technology.
3.Semi electric pallet Stacker Moving type: electric driving and climbing to a certain gradient.
4.Semi electric pallet stacker rising height and load can be changed as required by the customers.
5.There are complete safety equipments and their technical performance has reached the advanced level as the international product

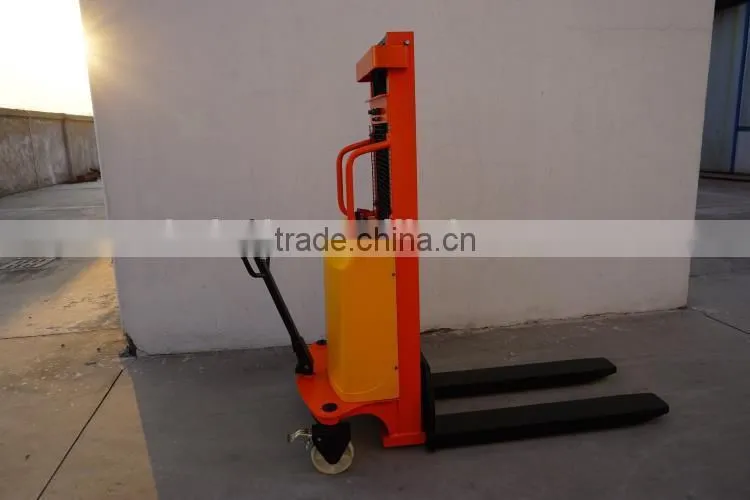

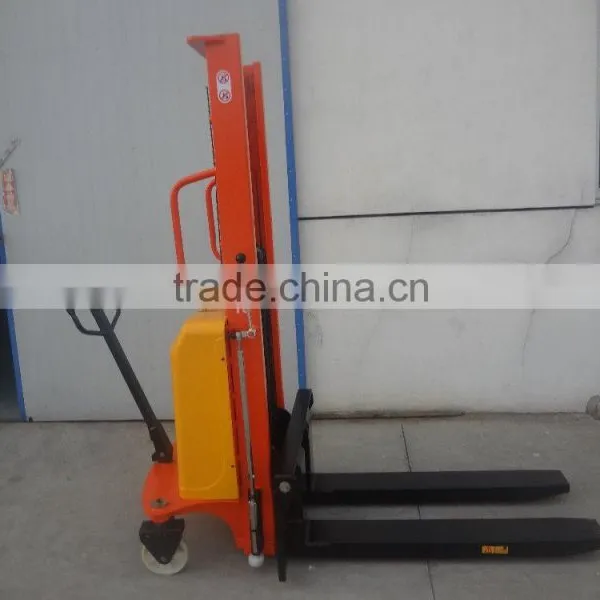

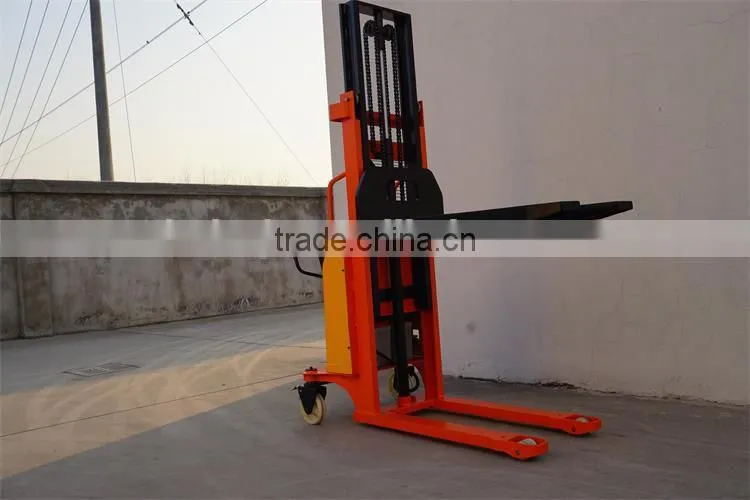

Product Picture
Technical Parameters
| Feature | |
| Product Name | 2 Ton Electric Power |
| Model Number | HZSE-01 |
| Mast | 2-stage Mast |
| Power | Battery |
| Manipulation | Walkie |
| Braking Type | Mechanical Brake |
| Rated Loading Capacity | 2 Ton |
| Load Center | 600mm |
| Hydrocylinder | Single |
| Surface Treatment | Baked Paint |
| Wheel | |
| Wheel Type | Nylon Wheel |
| Driving wheel Size | φ250mm*80mm |
| Balance wheel Size | φ150mm*50mm |
| Load Wheel Size | φ80mm*70mm |
| Size | |
| Max. Lifting Height | 3000mm |
| Min. Lifting Height | 85mm |
| Max overall Height when max lifting height | 3500mm |
| Overall Length | 2105mm ( not including 400mm pedal) |
| Overall Width | 850mm |
| Overall Height | 2000mm |
| Min Aisle Width | 900mm |
| Min Aisle Width for Turning Around | 2600mm |
| Turning Radius | 2200mm |
| Performance | |
| Traveling Speed(full load/no load) | 4/6 km/h |
| Lifting Speed(full load/no load) | 40/45 mm/s |
| Lowering Speed(full load/no load) | 50/45 mm/s |
| Gradient(full load/no load) | 5/8 % |
| Braking Length(full load/no load) | 500/400 mm |
| Driving | |
| Lifting Motor | 1.5 KW |
| Battery Voltage/Capacity | 12V/120AH |
| Charger Spec | 12V15A |
| Package | |
| Packing | Bubble Wrapping + Iron Pallet |
| Qty of 20' container | 8 sets |
| Qty of 40' container | 16 sets |
And also we have very strong design ability to design out what you want according to your requirements. Welcome to inquire us.
Certificates
Workshop Show
Company Introduction
Huize Machine Co.,Ltd Specilizes in Electric Pallet Truck,Battery Stacker, Electric Counter Balance Stacker,Electric Oil Drum Truck, Electric Paper Roll Truck,Electric Crane, Electric Lift Platform and Aerial Order Picker,etc.
We were established in 2006 year, and located in Sancheng Industrial Zone,Jiangyan District,Taizhou City,Jiangsu Province,China. It is about 2.5 hours driving to Shanghai Airport, the transportation is very convenient.
Since our foundation in 2006, we have always insisted on quality is our life,so we operate and inspect every production process strictly to make sure all the products out of our factory 100% qualified, and also every year,our R&D team regularly develop 4-6 new models forklifts in light of market demands
Now we have exported our products to India, Pakistan, Vietam,Singapore, Australia,Saudi Arabia, USA,Canada,etc over 30 countries, and we have very high reputation among all our customers.
FAQ
1. Q: What is your minimum order quantity?
A: One Set
2. Q:What certificates do you have?
A:We are certificated by ISO9001,CE,SGS and BV to make sure our quality excellent.
3. Q: How to guarantee products quality?
A: First, we have our own QC to inspect and check the quality in each process,Second, we welcome your QC to our factory to inspect the goods, Third, we accept the third party inspection.
4. Q:Why choose Huize factory?
A: 1.Supply required products with competitive price
2.Good after sales service
3.Weclome customers visit our factory to inspect and experience products
4.Supply our professional suggestion to help customers sell and use our products better
