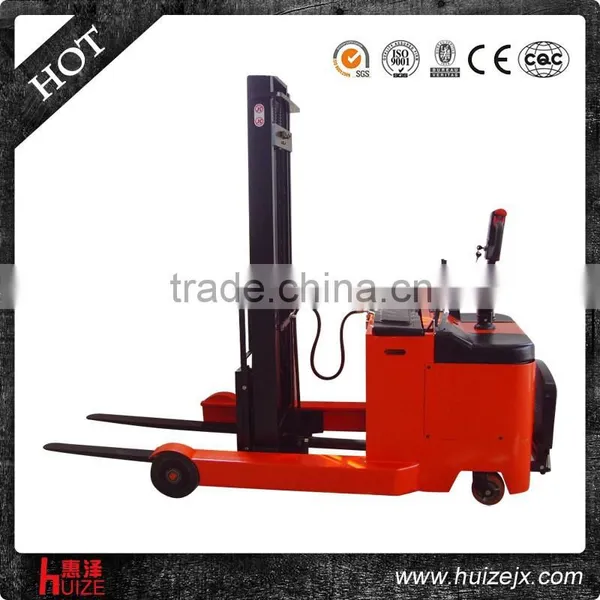

2T Electric forging fork reach pallet stacker

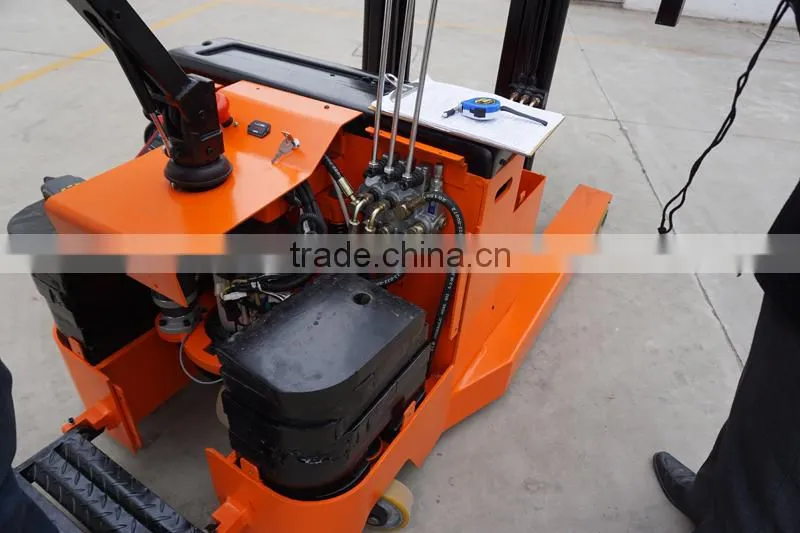

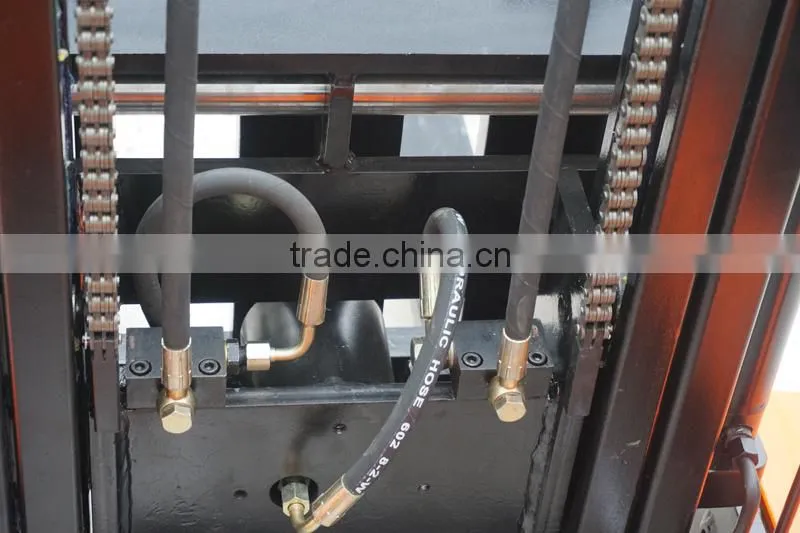

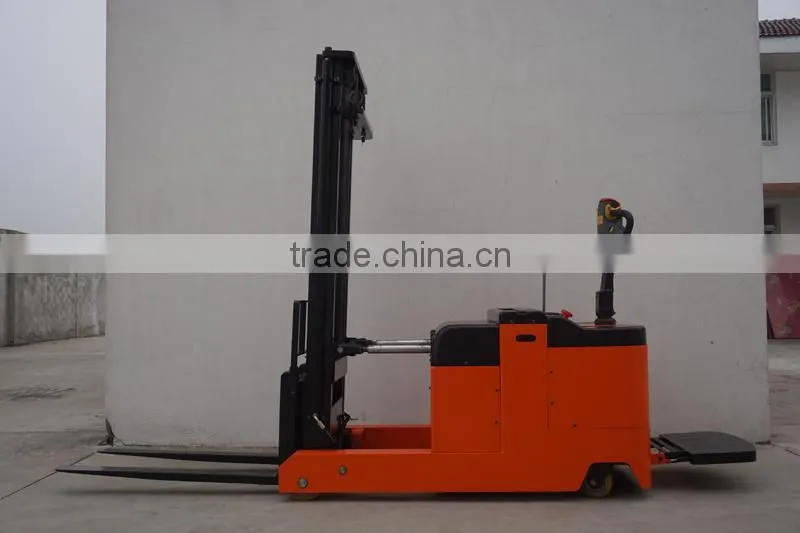

Photo:
Features:
1.Imported Italian handle.
2.High-capacity battery, long-lasting and robust.
3.US Curtis Controller System.
4.German steel door frame, sturdy and durable.
5.Integrated design of cylinders, driving wheel and hydraulic pump.
6.Folding operator platform.
7.One-piece forged-steel fork.
8.Optional imported tiller.
9.Safe and reliable operation with adjustable wide legs.
Technique details:
Model |
Unit |
CQD1016 |
CQD1025 |
CQD1030 |
CQD1516 |
Rated capacity |
kg |
1000 |
1000 |
1000 |
1500 |
Load center |
mm |
500 |
500 |
500 |
500 |
Power |
mm |
Battery |
|||
Manipulation |
mm |
Tramptype/standingsteertype(with standing platrorm) |
|||
Max.lift height |
mm |
1600 |
2500 |
3000 |
1600 |
Lowered height |
mm |
85 |
85 |
90 |
90 |
Tuming radius |
mm |
1900 |
1900 |
1950 |
1950 |
Fork length |
mm |
1000 |
1000 |
900 |
1000 |
Axis space |
mm |
1300 |
1365 |
1365 |
1365 |
Overall length |
mm |
2400 |
2400 |
2500 |
2450 |
Standard fork |
mm |
680 |
550 |
550 |
600 |
Fork overall width |
mm |
1000*100*40 |
1000*100*50 |
1000*100*50 |
1000*100*50 |
Fork individual width |
mm |
520 |
520 |
520 |
520 |
Braking type |
|
Electromagnetic braking |
|||
Driving wheel dimension |
mm |
230*75 |
230*75 |
230*75 |
230*75 |
Driving wheel type |
|
Horizontal |
Horizontal |
Vertical |
Vertical |
Loading whee dimensionl |
mm |
80*100 |
80*70*2 |
80*70*2 |
80*70*2 |
Balance wheel dimensionl |
mm |
152*75 |
100*40 |
100*40 |
100*40 |
Driving motor |
kw |
2 |
2.2 |
2.2 |
2.2 |
Lifting motor |
kw |
1.2 |
1.5 |
1.5 |
1.5 |
Batter (Voltage/capacity) |
V/AH |
24V/210 |
24V/240 |
24V/240 |
24V/210 |
weight |
kg |
1600 |
1650 |
1690 |
1640 |
