new 2.0ton electric narrow aisle reach stacker

FOB Price

USD $5,000 - $5,200 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Place of Origin:	Jiangsu, China	Brand Name:	HZ
Model Number:	HZCQD2030-14	Dimension(LWH):	31.22.2m	Certification:	CE ISO9001 BV
Warranty:	1 year	After-sales Service Provided:	Engineers available to service machinery overseas

new 2.0ton electric narrow aisle reach stacker

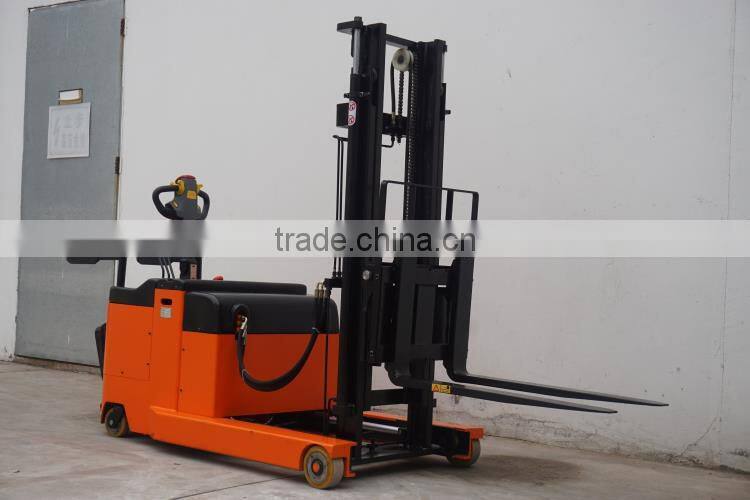

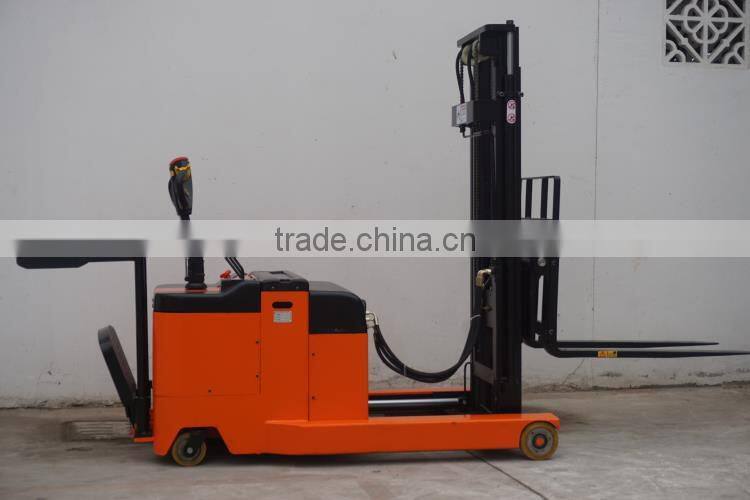

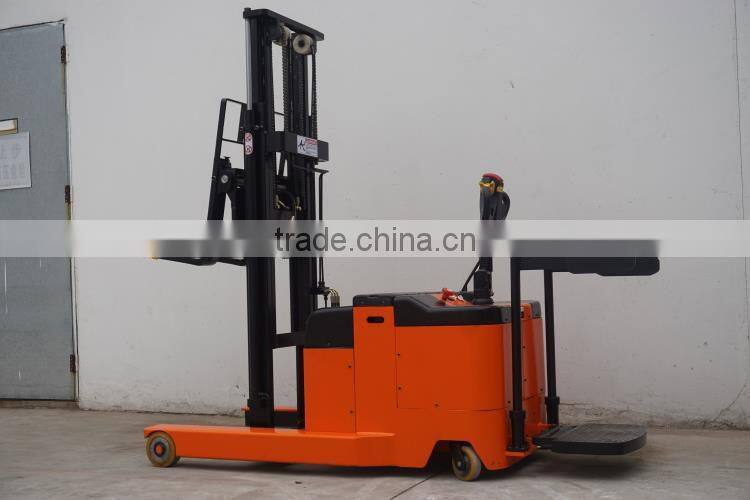

Picture show

Main technical specifiations

1	Characteristic
1.1	Name		Electric reach stacker
2.1	Model		HZCQD2030-14
3.1	Mast series		Double
4.1	Dynamic form		Battery
5.1	Operation type		Standing
6.1	Load capacity	Q(Kg)	2000
7.1	Load center	C(mm)	550
8.1	Hydraulic cylinder		Double
9.1	Color		Red, yellow, blue, gray
10.1	Surface treatment		Paint
2	Size
11.2	Forward angle	β	3°
12.2	Backward angle	α	5°
13.2	Channel width	Ast(mm)	1100
14.2	Minimum channel width truck turning around	Ast(mm)	4000
15.2	Turning radius	Wa(mm)	3800
3	Driving
16.3	Driving motor power	KW	1.2
17.3	Lifting motor power	KW	2.5
18.3	Battery voltage / capacitor	V/Ah	24/210
19.3	Battery repeated charging times		750
20.3	Battery weight	Kg	187
21.3	Charger specification		24V/30A
22.3	Driving control type		AC
23.3	Driving wheel type		Horizontal

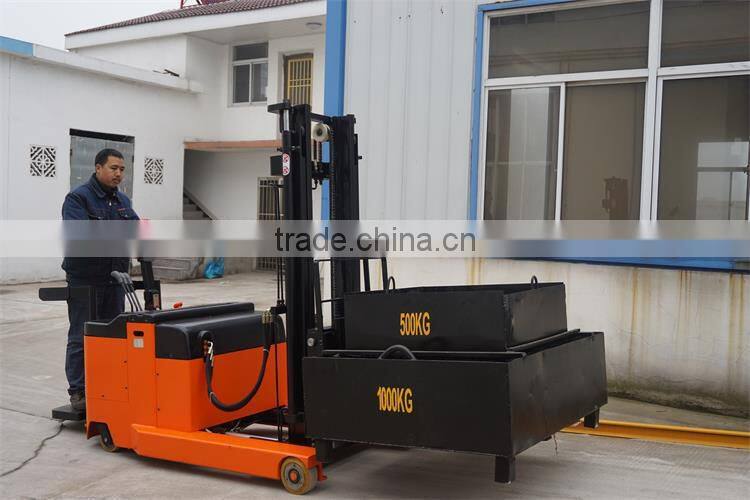

Climbing text

Certification

Taizhou Huize Machine Limited Company: Contact nameJiapeng Chen; Phone86-523-88548678; AddressBaima town,Taizhou city Taizhou,Zhejiang
