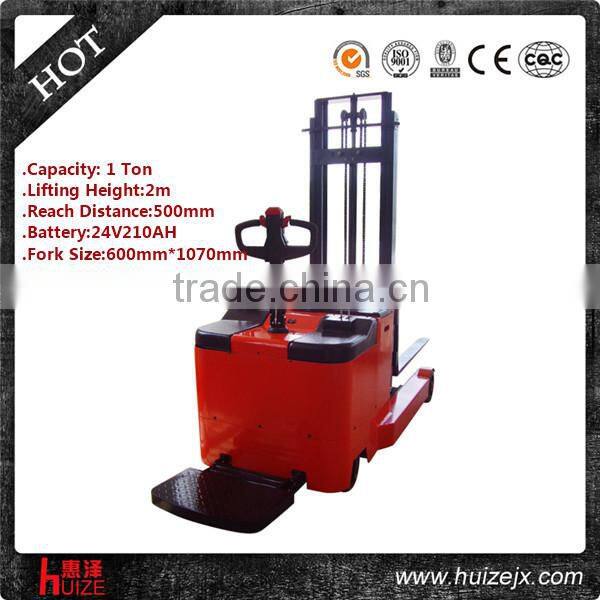

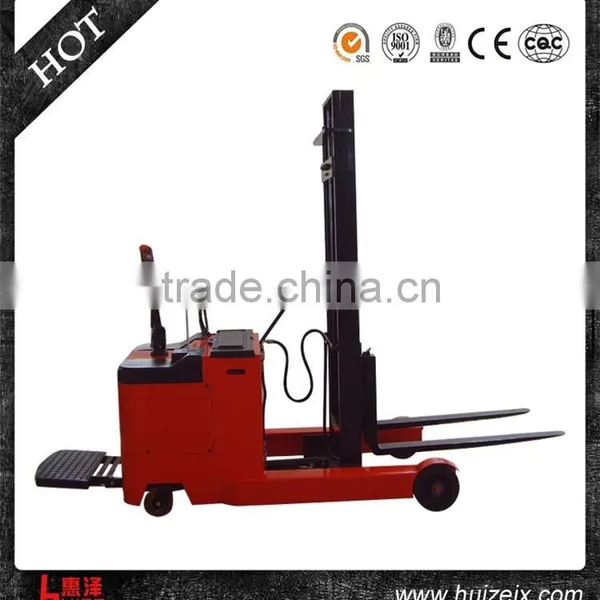

Factory Electric Reach Pallet Stacker Price
we are 9 years experienced manufacturer
For Product Character
1.High tensile strength mast material ,High stability
2.VAT System, Diecast hydraulic pump unit
3.Low failure rate,Low noise, No pollution
4.Little turning radius,suitable for narrow aisle
5. High lifting height , suitable for stacker in high place
6. Firm and beautiful structure, Easy operation
7. Application: Stacker,short distance carry pallets and cargoes in the good yards
Certificate
ISO9001,CE,SGS
Min Order: 1 sets
Port: Shanghai, Ningbo, Qingdao
Payment: TT, LC
Delivery: 10-15 workingdays after received 30% deposit
Packing: STANDARD EXPORT PACKING
Feature
1. |
Feature |
||
1.1 |
Name |
|
Electric Reach Stacker |
1.2 |
Model |
|
HZCQD1020-02 |
1.3 |
Mast |
|
Single |
1.4 |
Power |
|
Battery |
1.5 |
Manipulation |
|
Standing Steer Type |
1.6 |
Braking Mode |
|
Electromagnetic braking |
1.7 |
Load Capacity |
|
1000kg |
1.8 |
Load Center |
|
550mm |
1.9 |
Hydro cylinder |
|
Double |
1.10 |
Color |
|
Red, Yellow ,Blue ,Gray |
1.11 |
Surface Treatment |
|
Baking Painted |
2. |
Wheel |
||
2.1 |
Wheel Type |
|
Polyurethane |
2.2 |
Driving wheel No.& Size |
|
1pcs, φ250mm*80mm |
2.3 |
Balance wheel No.& Size |
|
2 pcs, φ150mm*50mm |
2.4 |
Load Wheel No. & Size |
|
2 pcs, Φ178mm*80mm |
3. |
Size |
||
3.1 |
Single Fork Size |
|
1070mm*100mm*38mm |
3.2 |
Fork Overall Width |
|
200mm~600mm |
3.3 |
Overall Length |
|
3470mm |
3.4 |
Overall Width |
|
1000mm |
3.5 |
Overall height |
|
1530mm |
3.6 |
Max Lifting Height |
|
2000mm |
3.7 |
Lowered Height |
|
30mm |
3.8 |
Reach Distance |
|
500mm |
3.9 |
Forward Max |
|
3° |
3.10 |
Backwards Max |
|
5° |
3.11 |
Aisle Width |
|
1100mm |
3.12 |
Min Aisle Width for Turning Around |
|
4000mm |
3.13 |
Turning Radius |
|
3800mm |
4. |
Performance |
||
4.1 |
Traveling Speed(with/without load) |
|
4/6 km/h |
4.2 |
Lifting Speed(with/without load) |
|
60/65 mm/s |
4.3 |
Lowering Speed(with/without load) |
|
100/70 mm/s |
4.4 |
Gradient(with/without load) |
|
5/8 % |
4.5 |
Braking Length(with/without load) |
|
500/350 mm |
5. |
Driving |
||
5.1 |
Driving Motor |
|
1.2 KW |
5.2 |
Lifting Motor |
|
2.5 KW |
5.3 |
Driving Control Type |
|
Horizontal AC |
6. |
Battery |
||
6.1 |
Battery Voltage/Capacity |
|
24V210AH |
6.2 |
Times of Recharged for Battery |
|
750 Times |
6.4 |
Charger |
|
24V30A |
Photos
