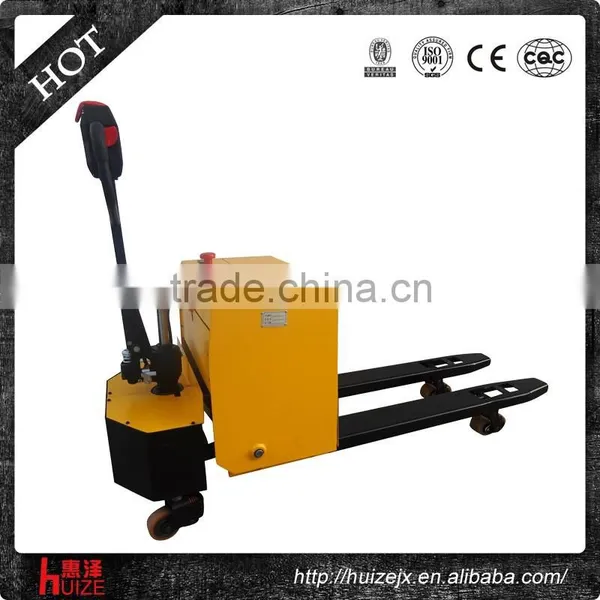

2t Efficient Controls Semi Electric Palet Jacks

2t Efficient Controls Semi Electric Palet Jacks thumbnail-1
2t Efficient Controls Semi Electric Palet Jacks photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
HHIZE
Contact Supplier Request Quote Chat Now
Taizhou Huize Machine Limited Company
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name HHIZE
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 2000KG
Fork Length 1150MM
Fork Width 550MM
Certification CE,SGS,BV,ISO90001
After-sales Service Provided Engineers available to service machinery overseas




2t efficient controls semi electric palet jacks

(manual lifting,electric walking)









Product description   2t efficient controls palet jacks



1.Be equipped with imported pump stations,

oil cylinders,driving wheel assembly,electronic accelerators, batteries, chargers and so on;



2. Fexible and convenient without any noise and pollution when working;



3.Be suitable for user in the heavy load and long-  time operation working condition, and can improve the transit efficiency, reduce working intensity;



4.We are specilizing in customize according to clients requirements.

























Feature

1

Name



2t efficient controls semi electric palet jacks

2

Model



HZSCBD20-02

3

Power form



Battery

4

Operation Type


Manual hydraulic



5

Load capacity

Q(Kg)

2000

6

Load center distance

C(mm)

600

7

Hydraulic cylinder



single

8

Color



red  yellow  blue  gray and so on

9

Surface treatment



paint

10

Gross/net weight

kg

378/373
12

wheel type

   polyurethane





Size

1

Rising  height

mm

115

2

Falling  height

mm

85

3

Overall length

mm

1850

4

Overall width

mm

700

5

Fork size

l/e/s(mm)

1150*160*50

6

Fork overall width

mm

550

7

Overall height

mm

1295

8

Front wheel size

mm

Φ80*70

9

Driving wheel size

mm

φ250*80

10

Balance wheel size

mm

φ125*50

11

passage width,with1000×1200 pallet

Ast(mm)

1100

12

passage width,with800×1200 pallet

Ast(mm)

900

13

Minimum channel width truck turning  around

Ast(mm)

2200

14

turning radius

Wa(mm)

1900





Driving

1

Driving motor

Kw

1.2

2

Battery voltage/capacitance

V/Ah

24/120(2 groups)

3

Battery charged repeatedly



300

4

Battery Weight

Kg

30

5

Charger



24V15A

6

Driving control type



AC

7

Driving motor



Horizontal





Packing and shipping

1

packing method



Packaging as a whole

2

packing



Angle iron + bubble wrap

3

packing size

L/B/H(m)

2*0.75*1.5

4

Charger packing size

L/B/H(m m)

470*190*210

5

How many boxes does each product have



2

6

Number of 20-foot containers

set

22

7

Number of 40-foot containers

set

46







Others

1

Specify product certification



CE,BV,SGS,ISO9001

2

Name of customs declaration



Electric pallet truck

3

FOB



shanghai

4

HS code



8428909090



 Accessories   2t efficient controls semi electric palet jacks





QA&Testing    2t efficient controls palet jacks







 To ensure security, each  2t efficient controls palet jacks will be tested before the sales.





















Certifications   2t efficient controls semi electric palet jacks







Applications  2t efficient controls semi electric palet jacks













and some other places(Workshop,Warehouse,Airport, Railway Station ,shipyard and so on) where need to carry and shift. Light and flexible 1t mini electric pallet truck



F.A.Q    2t efficient controls palet jacks



1.Does your factory have discount?

   A: Our factory will offer customers 3%  vulnerable parts in free .

2.Q:Does your factory accept customizing?

   A:Yes,pls send your reguirements to sales3(@).

3.Q: Does your factory accept  Neutral Packing and Designed Brand?

   A:Yes,we accept.

4:Q:Which is the nearest airport to your factory?

   A:Shanghai.We can take you at the airport and provide accommodation.

5.A:Does your factory provide favorable?

  Q:Yes,Our factory will offer customers 3% free vulnerable parts .
