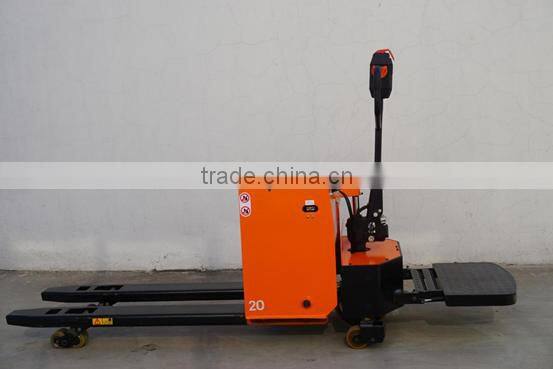

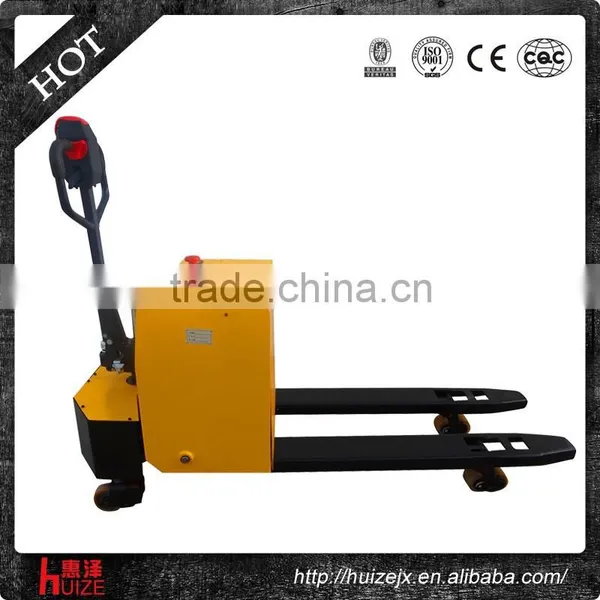

3t responsive AC drive motor electric pallet jack for sale
(maual lifting,electric walking)
Product description 3t responsive AC drive motor electric pallet jack for sale
1.Our full electric pallet trucks are equipped with imported pump stations,
oil cylinders,driving wheel assembly,electronic accelerators, batteries, chargers and so on;
2.Designed to ultra-thin and strong body,infinitely variable speed,small turning radius;
3. Fexible and convenient without any noise and pollution when working;
4.After being charged,they can work long and performe reliably;
5.Be suitable for user in the heavy load and long- time operation working condition, and can improve the transit efficiency, reduce working intensity;
6.We can customize according to clients requirements.
Feature | |||
1 |
Name |
|
3t responsive AC drive motor electric pallet jack for sale |
2 |
Model |
|
HZSCBD30-06
|
3 |
Power form |
|
Battery |
4 |
Operation Type |
Manual hydraulic
|
|
5 |
Load capacity |
Q(Kg) |
3000 |
6 |
Load center distance |
C(mm) |
600 |
7 |
Hydraulic cylinder |
|
single |
8 |
Color |
|
red yellow blue gray and so on |
9 |
Surface treatment |
|
paint |
10 |
Gross/net weight |
kg |
378/373 |
| 12 | wheel type |
polyurethane | |
Size | |||
1 |
Rising height |
mm |
115 |
2 |
Falling height |
mm |
85 |
3 |
Overall length |
mm |
1850 |
4 |
Overall width |
mm |
700 |
5 |
Fork size |
l/e/s(mm) |
1150*160*50 |
6 |
Fork overall width |
mm |
550 |
7 |
Overall height |
mm |
1355 |
8 |
Front wheel size |
mm |
Φ80*70 |
9 |
Driving wheel size |
mm |
φ250*80 |
10 |
Balance wheel size |
mm |
φ125*50 |
11 |
passage width,with1000×1200 pallet |
Ast(mm) |
1100 |
12 |
passage width,with800×1200 pallet |
Ast(mm) |
900 |
13 |
Minimum channel width truck turning around |
Ast(mm) |
2200 |
14 |
turning radius |
Wa(mm) |
1900 |
Driving | |||
1 |
Driving motor |
Kw |
1.2 |
2 |
Battery voltage/capacitance |
V/Ah |
24/210 |
3 |
Battery charged repeatedly |
|
750 |
4 |
Battery Weight |
Kg |
187 |
5 |
Charger |
|
24V30A |
6 |
Driving control type |
|
AC |
7 |
Driving motor |
|
Horizontal |
Packing and shipping | |||
1 |
packing method |
|
Packaging as a whole |
2 |
packing |
|
Angle iron + bubble wrap |
3 |
packing size |
L/B/H(m) |
2*0.75*1.5 |
4 |
Charger packing size |
L/B/H(m m) |
470*190*210 |
5 |
How many boxes does each product have |
|
2 |
6 |
Number of 20-foot containers |
set |
22 |
7 |
Number of 40-foot containers |
set |
46 |
Others | |||
1 |
Specify product certification |
|
CE,BV,SGS,ISO9001 |
2 |
Name of customs declaration |
|
Electric pallet truck |
3 |
FOB |
|
shanghai |
4 |
HS code |
|
8428909090 |

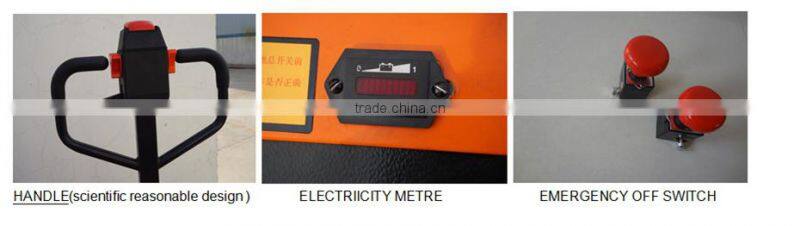

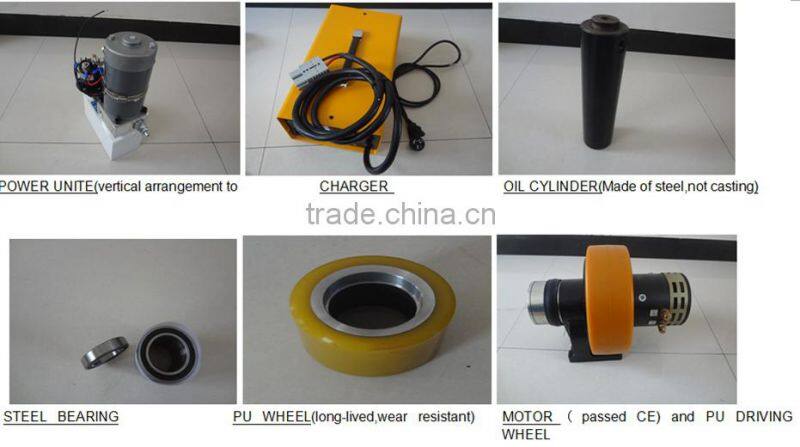

Accessories 3t 3t responsive AC drive motor electric pallet jack for sale

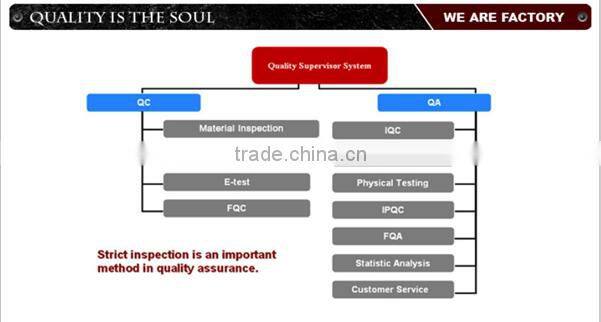

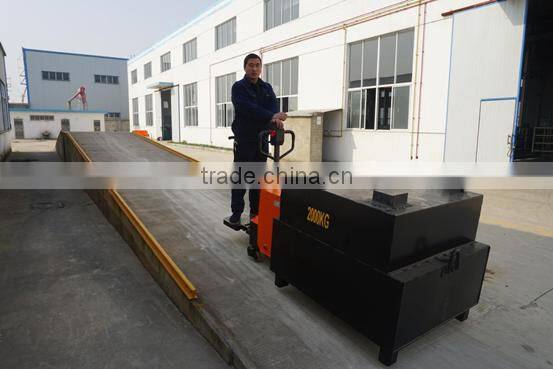

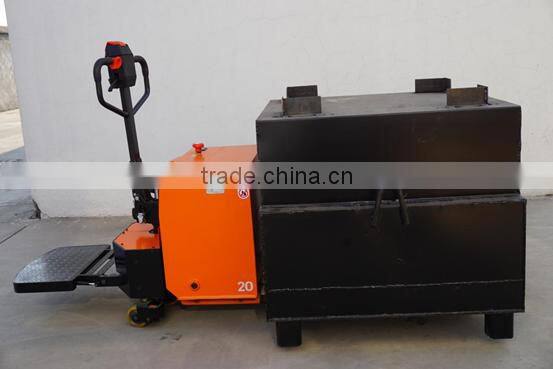

QA&Testing 3t responsive AC drive motor electric pallet jack for sale
To ensure security, each 3t responsive AC drive motor electric pallet jack for sale will be tested before the sales.
Certifications 3t responsive AC drive motor electric pallet jack for sale

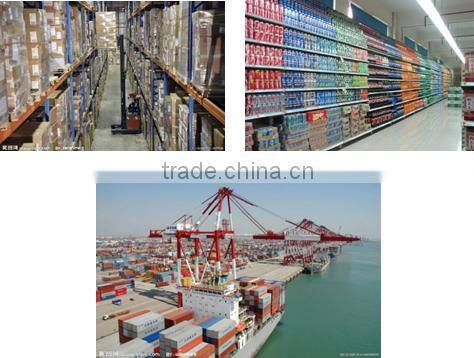

Applications 3t responsive AC drive motor electric pallet jack for sale
and some other places(Workshop,Warehouse,Airport, Railway Station ,shipyard and so on) where need to carry and shift. Light and flexible 1t mini electric pallet truck

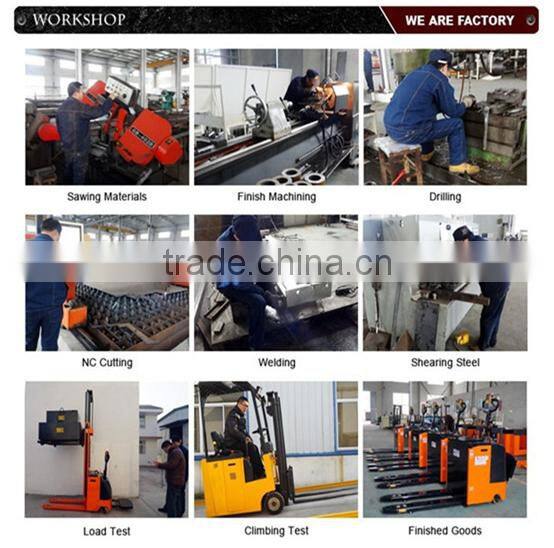

Workshop 3t 3t responsive AC drive motor electric pallet jack for sale
Our service 3t responsive AC drive motor electric pallet jack for sale pallet jack
F.A.Q 3t responsive AC drive motor electric pallet jack for sale
1.Does your factory have discount?
A: Our factory will offer customers 3% vulnerable parts in free .
2.Q:Does your factory accept customizing?
A:Yes,pls send your reguirements to sales3(@).
3.Q: Does your factory accept Neutral Packing and Designed Brand?
A:Yes,we accept.
4:Q:Which is the nearest airport to your factory?
A:Shanghai.We can take you at the airport and provide accommodation.
5.A:Does your factory provide favorable?
Q:Yes,Our factory will offer customers 3% free vulnerable parts .
