Help Center3 Ton Electric Motor Lift Drive Actuation Electric Pallet Truck
Related Products
3 ton Electric Motor Lift Drive Actuation electric pallet truck
Product description 3 ton electromotive pallet truck
1. Handle equipped with emergency switch makes the whole vehicle safer.
2. Electricity level display and work hour display
3. Emergency power disconnect switch.
4. Turtle-shaped low speed switch.
5. Stepless control..
6. Low battery protection setting prolongs the battery use time.
7. CANbus technology reduces wiring complexity and increase reliability.
8.Hall element reduces wear components, resulting in increased component life.
9.Solid steel housing could be easily and conveniently opened for maintenance.
10.We can customize according to clients requirements.
Feature | |||
1 |
Name |
|
3 ton electromotive pallet truck |
2 |
Model |
|
CBD –I-3T
|
3 |
Power form |
|
Battery |
4 |
Operation Type |
|
Standing |
5 |
Load capacity |
Q(Kg) |
3000 |
6 |
Load center distance |
C(mm) |
600 |
7 |
Hydraulic cylinder |
|
double |
8 |
Color |
|
red yellow blue gray and so on |
9 |
Surface treatment |
|
Paint |
10 |
Gross/net weight |
kg |
665/660 |
| 12 | wheel type |
polyurethane | |
Size | |||
1 |
Rising height |
mm |
115 |
2 |
Falling height |
mm |
85 |
3 |
Overall length |
mm |
1980 |
4 |
Overall width |
mm |
720 |
5 |
Fork size |
l/e/s(mm) |
1150*160*50 |
6 |
Fork overall width |
mm |
685 |
7 |
Overall height |
mm |
1350 |
8 |
Front wheel size |
mm |
Φ80*70 |
9 |
Driving wheel size |
mm |
φ250*80 |
10 |
Balance wheel size |
mm |
φ125*50 |
11 |
passage width,with1000×1200 pallet |
Ast(mm) |
1100 |
12 |
passage width,with800×1200 pallet |
Ast(mm) |
900 |
13 |
Minimum channel width truck turning around |
Ast(mm) |
2600 |
14 |
turning radius |
Wa(mm) |
1900 |
Driving | |||
1 |
Driving motor |
Kw |
1.5 |
2 |
lifting motor |
Kw |
1.0 |
3 |
Battery voltage/capacitance |
V/Ah |
24/210 |
4 |
Battery charged repeatedly |
|
750 |
5 |
Battery Weight |
Kg |
187 |
6 |
Charger |
|
24V30A |
7 |
Driving control type |
|
AC |
8 |
Driving motor |
|
Horizontal |
Packing and shipping | |||
1 |
packing method |
|
Packaging as a whole |
2 |
packing |
|
Angle iron + bubble wrap |
3 |
packing size |
L/B/H(m) |
2*0.75*1.5 |
4 |
Charger packing size |
L/B/H(m m) |
470*190*210 |
5 |
How many boxes does each product have |
|
2 |
6 |
Number of 20-foot containers |
set |
22 |
7 |
Number of 40-foot containers |
set |
46 |
Others | |||
1 |
Specify product certification |
|
CE,BV,SGS,ISO9001 |
2 |
Name of customs declaration |
|
Electric pallet truck |
3 |
FOB |
|
shanghai |
4 |
HS code |
|
8428909090 |
Details Pic.
2 Ton Can Go Down Mechanical Pallet Truck

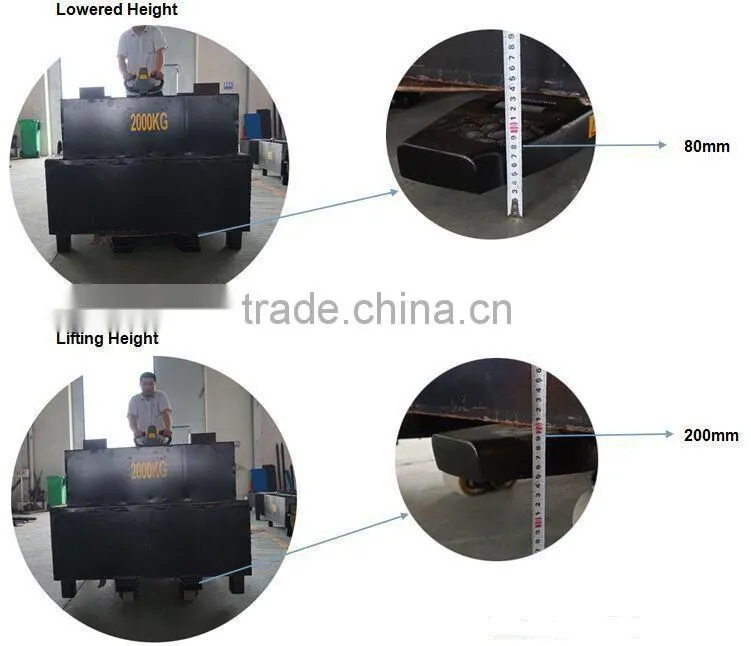

1. Load Capacity Test
2 Ton Can Go Down Mechanical Pallet Truck

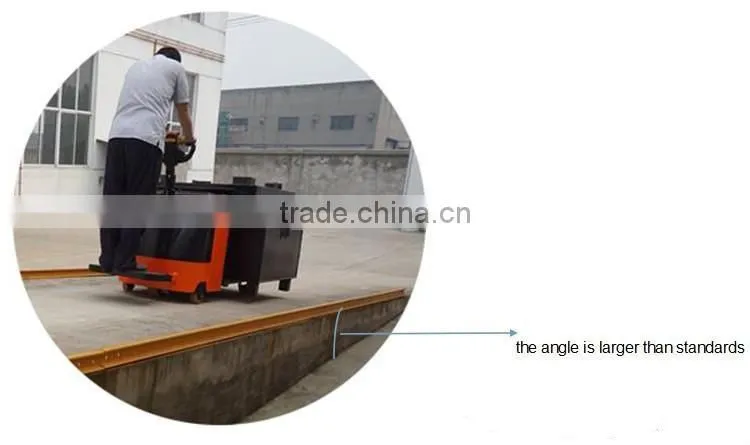

2. Gradient Test
2 Ton Can Go Down Mechanical Pallet Truck
Certification
2 Ton Can Go Down Mechanical Pallet Truck
Hydraulic Pallet Trolley
Since 2006
Specializing in pallet truck,pallet stacker,all warehouse handling equipments.
Consecutive sales increasement of 5 years
Passed the ISO9001:2008 and international certificate as CE,BV,SGS
Provide OEM and ODM service to overseas customer
Export to more than 15 countries in Europe,the Middle East,Southeast Asia,Africa,South America and areas etc.
Hydraulic Pallet Trolley
24 hours online service
Enquiry will be replied in 2 hours
One year warranty
1%-2%Spare Parts
CKD and SKD are available
Free parts for any breakdown with convincing evidence
Hydraulic Pallet Trolley
Q1:Can I have a sample for testing?
A: Actually we think samples are not very important.You can buy from anywhere.But we think
our cargos will better then any others.
Samples will be 10% higher then the cargo.
Q2:Can I add my logo on the kitchen appliances?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q3:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range pallet truck it is lifelong maintenance.
Q4 :Do you have inspection procedures for your products?
A:100% self-inspection before packing
Q5:Can we mix the 20ft container?
A: Yes,if the items are meet our min order qty.
Q6:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address:Taizhou city,Jiangsu,China.
Our factory is near Shanghai Airport.We can pick you up in the airport.
Hotel booking service is available
